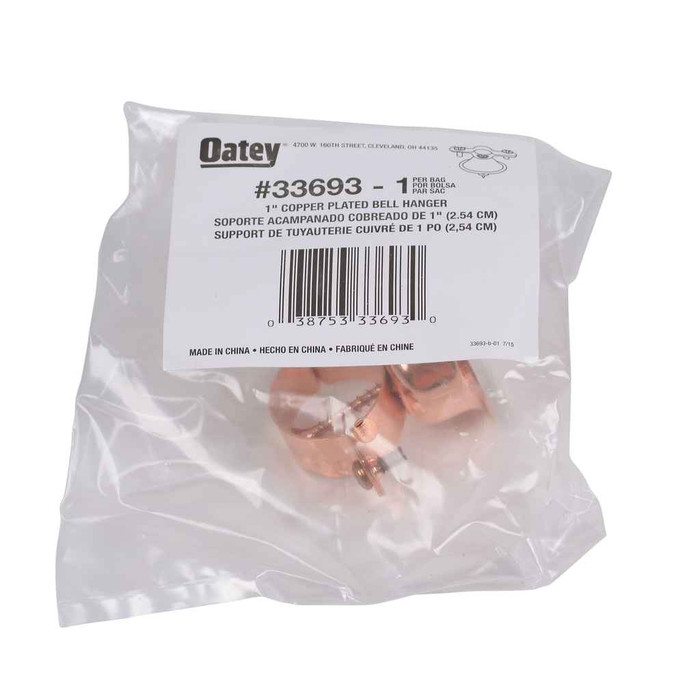

1" Copper Tube Size (CTS) Bell Hanger
33693 - spec sheet
Features
- Copper plated cold rolled steel
- Includes two clamp screws and one 2-1/2" mounting screw
- Recessed mounting screw does not contact the piping
- 1" Copper plated Bell Hanger
- Mounting screw has pierce point for use on metal studs
- Designed with 13/16" standoff from mounting surface
- For warranty product details, refer to the Oatey Limited Warranty document
33693 - spec sheet
Manufacturer Resources
Product Specs
- Volume:
- 0.008
- Department:
- Plumbing
- Product Group:
- Plumbing Accessories
- Product Subgroup:
- Pipe Supports
- Product Type:
- Support Clamp
- Product Weight:
- 0.092
OATEY 33693 – Frequently Asked Questions
1) Will the Oatey 33693 bell hanger work with 1 inch copper tubing?
Yes, the 33693 is sized for 1 inch Copper Tube Size (CTS), so it clamps 1 inch nominal copper tube (not 1 inch iron pipe, which is a larger outside diameter). The body is copper plated cold rolled steel, so you're not putting bare steel against a copper line.
2) Can I use the Oatey 33693 bell hanger on metal studs?
Yes. The included 2-1/2 inch mounting screw has a pierce point specifically for metal studs, so it drives into light gauge steel framing without a pilot hole. It works on wood framing too.
3) How far off the wall does an Oatey bell hanger hold the pipe?
13/16 inch. The hanger is built with a 13/16 inch standoff from the mounting surface, which is what keeps the tube clear of the stud or backing and leaves room for insulation clearance checks before you close up a wall.
4) Does the Oatey 33693 bell hanger come with screws or do I need to buy them separately?
Everything to mount it is in the pack: two clamp screws that close the hanger on the tube, plus one 2-1/2 inch mounting screw that fastens it to the stud. Nothing else is required to hang a run of 1 inch copper.
5) Will the mounting screw on a bell hanger dent or dimple the copper tube?
No. The mounting screw on the 33693 sits recessed so it never contacts the piping. That matters on copper, where a screw bearing on the tube wall is a future pinhole.
