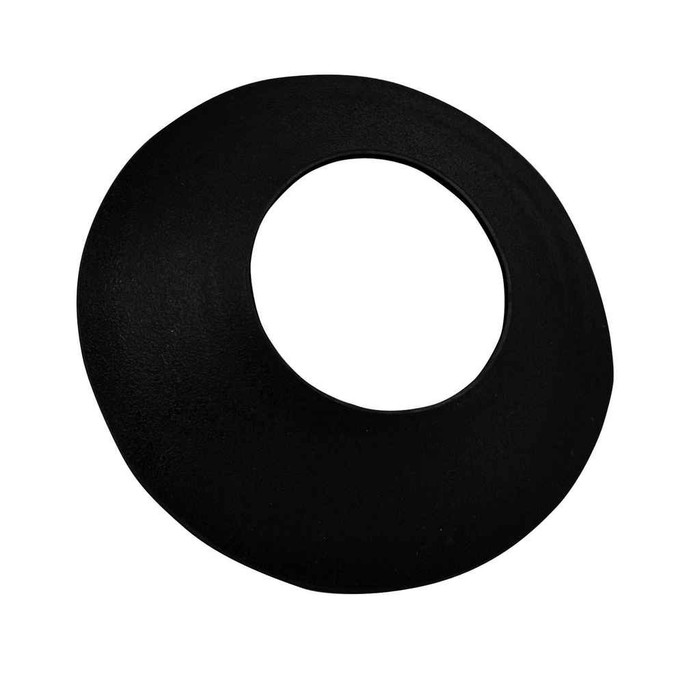

3" Collar
14193 - spec sheet
Features
- Not for hot-mopped or built-up roofs
- Non-fading collar material
- Rated 180°F continuous heat and approved for Type B installations
- Do not use petroleum based products on rubber collars
- No caulking needed
- For warranty product details, refer to the Oatey Limited Warranty document
- Use as a protective water shield (slides down over pipe)
14193 - spec sheet
Manufacturer Resources
Product Specs
- Volume:
- 0.025
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Fittings
- Product Type:
- General Fittings
- Product Finish:
- Black
- Product Material:
- Rubber
- Product Weight:
- 0.05
OATEY 14193 – Frequently Asked Questions
1) What pipe size does the Oatey 14193 collar fit?
The 14193 is a 3 inch collar, so it slides down over 3 inch pipe. It is a replacement or standalone rubber collar, not a complete flashing, so the pipe size has to match exactly at 3 inches.
2) Can the Oatey 14193 rubber collar be used on a hot-mopped or built-up roof?
No. The 14193 is not for hot-mopped or built-up roofs. The hot asphalt and solvents in those systems attack the rubber. It is approved for Type B installations and rated for 180 degrees F continuous heat.
3) Does the 3 inch Oatey collar need to be caulked or sealed after installation?
No caulking is needed. The rubber collar seals by sliding down over the pipe and acting as a protective water shield, so there is no sealant step to add to the job.
4) Will the Oatey 14193 collar hold up on a vent carrying hot water or DWV discharge?
It is rated for 180 degrees F continuous heat, which covers normal drain, waste and vent service. Above that rating the rubber is out of spec.
5) What should I avoid putting on the Oatey rubber collar during roof work?
Keep petroleum based products off it. Roofing cements, cutback asphalt, and oil based sealers degrade the rubber. That is also why it is excluded from hot-mopped and built-up roof systems.
6) Will the black collar fade or chalk out after a few seasons of sun?
The collar material is non-fading, and the finish is black throughout rather than a coating, so UV exposure on an exposed roof penetration won't bleach it out.
