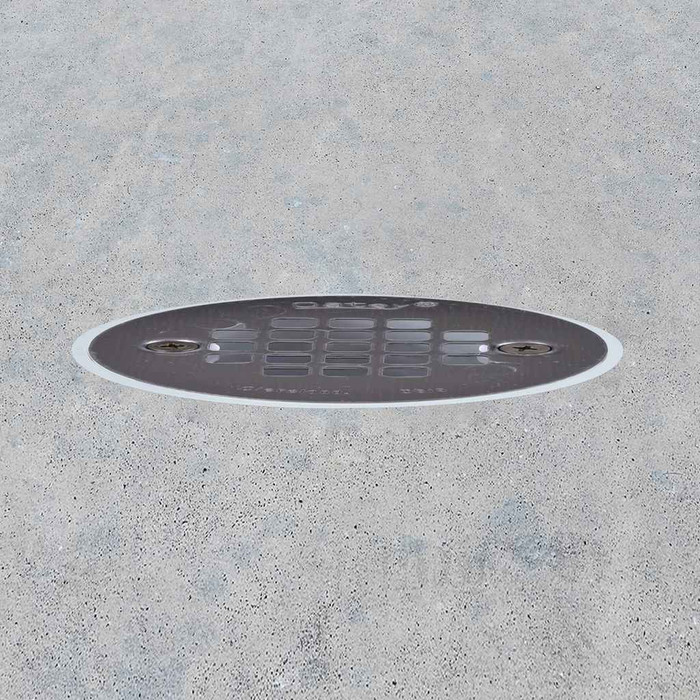

OATEY 43563 3 in. PVC Snap-In Drain with 3-1/2 in. Stainless Steel Strainer

OATEY 43563 3 in. PVC Snap-In Drain with 3-1/2 in. Stainless Steel Strainer

(No reviews yet) Write a Review

Model: 43563
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$65.71
$15.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3 in. PVC Snap-In Drain with 3-1/2 in. Stainless Steel Strainer

  • Features

    • Plastic snap-in drain can be inserted into PVC Sch. 40 DWV pipe
    • Designed for drainage in areas that don't require a waterproofing membrane
    • Removable stainless steel strainer allows access to the drain line for cleaning
    • Fits 3 in. drain
    • Incorporates a 3-1/2 in. screw-on stainless steel strainer
    • Easy to install
    • For use with specialty drains
    • Plastic snap-in drain can be solvent welded into PVC Sch. 40 DWV pipe
    • Can also be used as a vent stack or air inlet strainer
    • PVC snap-in floor drain
    • Durable construction


43563 - spec sheet

Manufacturer Resources

Product Specs

Connection Type:
Solvent Weld
Drain Orientation:
General Purpose
Volume:
0.014
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Drainage Products
Product Type:
Drain
Product Finish:
White
Product Material:
PVC
Product Weight:
0.25

OATEY 43563 – Frequently Asked Questions

1) Will the Oatey 43563 snap-in drain fit 3 inch PVC Schedule 40 DWV pipe?
Yes. The 43563 drops into 3 inch PVC Sch. 40 DWV pipe, either snapped in or solvent welded for a permanent joint. The body is PVC, so it takes standard PVC solvent cement. It will not work in cast iron or ABS lines, and it is sized for 3 inch only.
2) Can I use a snap-in PVC drain like the Oatey 43563 in a tiled shower or wet area with a waterproofing membrane?
No. The 43563 is built for drainage in areas that do not require a waterproofing membrane, so it is the wrong part for a tiled shower pan or any assembly with a liner or bonded membrane. Those need a clamping-ring or bonding-flange shower drain. Use the 43563 for utility and general purpose floor drainage instead.
3) What size strainer comes on the Oatey 43563, and can it be removed to snake the line?
A 3-1/2 inch stainless steel strainer screws on top, and it comes off. That is the point of it: unthread the strainer and you have direct access to the drain line for rodding or cleaning, without disturbing the drain body glued into the pipe.
4) Does the Oatey 43563 snap-in drain have a built-in trap?
There is no trap in the 43563. It is a drain body and strainer only, so the trap has to be in the piping below it. On a floor drain that means a P-trap in the 3 inch line, and in a building where the drain rarely sees water, a trap primer or periodic fill keeps the seal from drying out.
5) Can I use a 3 inch snap-in drain strainer on top of a vent stack?
Yes, and it is a listed use for the 43563. Besides floor drainage, it works as a vent stack terminal or an air inlet strainer on 3 inch PVC, keeping debris and nesting out of an open pipe while leaving it free to breathe.
6) Is the strainer on the Oatey 43563 metal or plastic, and will it hold up in a commercial area?
Two materials in one part: the drain body is white PVC and the strainer face is stainless steel. That is the combination you want in an MRO setting, since the stainless grate takes foot and cart traffic and cleaning chemicals while the PVC body just has to hold the solvent weld joint.
7) What is the Oatey part number for the 3 inch PVC snap-in drain with the stainless strainer?
Order Oatey 43563. One model covers it, no finish or size options to pick, and it ships as the drain body with the 3-1/2 inch stainless strainer included, so nothing else is needed except PVC primer and cement if you are welding it in.
