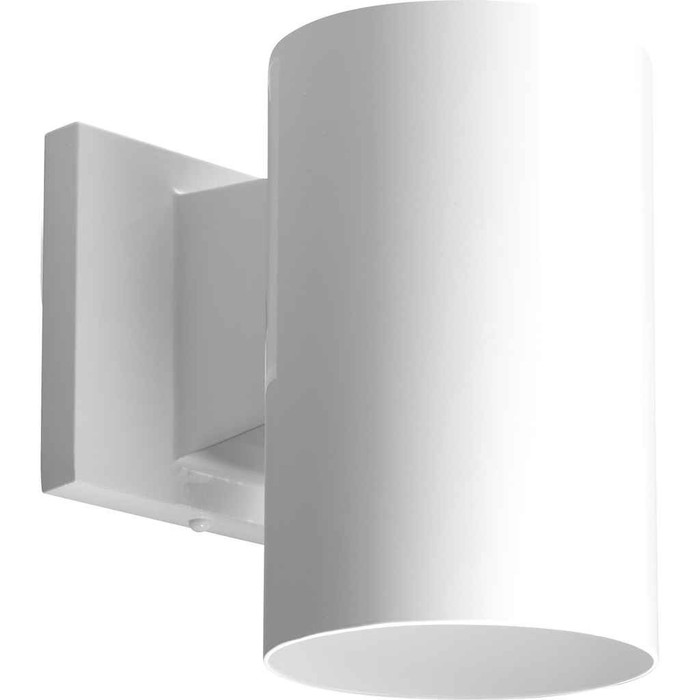

One-Light wall bracket
P5712-30 - spec sheet
Prop 65
- Yes
Features
- White finish.
- Non-corrosive components withstand salt, wind, water & sun damage.
- Interior or exterior use.
- Wet location listed.
- Ideal for coastal locations.
P5712-30 - spec sheet
Manufacturer Resources
Product Specs
- Americans With Disabilities Act:
- No
- Arra Compliant:
- Contact Manufacturer
- Base Unit Of Measure:
- EA
- Box Size:
- 5.5x7.88x7.5 (in)
- Buy American Compliant:
- Contact Manufacturer
- Can Be Mounted Up Or Down:
- No
- Carton Number Of Sub Packs:
- 1
- Carton Pack Description:
- Carton
- Carton Scc 14 Next Lower Level Sub Pack:
- 7.85247E+11
- Carton Total Units:
- 1
- Category General:
- Outdoor
- Certification Agency:
- Proposition 65
- Certified Listed:
- UL-CUL
- Certified Listed Location:
- Wet Location Listed
- Class Code:
- K46
- Collection Name:
- Cylinder
- Color Generic:
- White
- Construction Material Main Part:
- Construction
- Country Of Origin:
- CN
- Darksky:
- Yes, per photometry (not registered with IDA)
- Description Invoice:
- 1-75W PAR 30 5in DN CYL White
- Dimmable:
- Fully dimmable with dimmable bulbs.
- Each Number Of Sub Packs:
- 1
- Each Pack Description:
- Each
- Each Width:
- 5.500 in
- Energy Efficient:
- No
- Energy Star Certified:
- No
- Energy Star:
- No
- Eu Rohs Indicator:
- Contact Manufacturer
- Finish Name:
- White
- Fixture Type:
- Outdoor Wall
- Freight Class Code:
- 10970006
- Gross Weight With Packaging:
- 4 lb.
- Harmonization Code:
- 9405198010
- Height To Center:
- 2.5 in
- Image Actual Or Representative:
- A
- Indoor Outdoor:
- Outdoor
- Installation Mounting Type:
- Wall
- Ja8:
- No
- Lamp Included:
- No
- Lamp Shape:
- BR30
- Lamp Type:
- BR-30
- Lamp Type Actual:
- BR-30
- Lamp Wattage:
- 75 W
- Lifestyle:
- Modern;Transitional
- Lowest Level Uom:
- Each
- Mount Location:
- Wall
- Mounting For Outlet Box Included:
- strap
- Mounting Method:
- Wall
- Msds Flag:
- No
- New Products:
- No
- Note Weight Of Fixture Exceeds Nec Limits:
- No
- Number Of Lamps:
- 1
- Number Of Lamps Total:
- 1
- Order Multiple:
- 1 EA
- Other Heavy Metal Content Indicator:
- No
- Pallet Height:
- 37.500 in
- Pallet Length:
- 48.000 in
- Pallet Weight:
- 225.000 lb.
- Pallet Width:
- 48.000 in
- Post Top Fits Standard:
- No
- Power Source:
- Hardwired
- Power Source Required :
- Yes
- Prewired:
- Yes
- Price Retail 2 2:
- 101.53
- Product Color:
- White
- Product Dimensions:
- 5 in x 7.75 in x 7.25 in
- Product Height:
- 7.25 in
- Product Length:
- 5 in
- Product Style:
- Modern;Transitional
- Product Wattage:
- 75 W
- Product Weight:
- 4 lb.
- Product Width:
- 7.75 in
- Proposition 65 Warning Required:
- Yes
- Quick Install Canopy:
- No
- Quick Link Connector:
- No
- Returnable Indicator:
- Yes
- Room Type:
- Outdoor
- Service Life:
- On Website=Yes
- Socket Type:
- socket
- Socket Type Material:
- ceramic
- Standard:
- UL-CUL
- Stock Indicator:
- S - Shelf Stock
- Sub Class Code:
- K46K385
- Title 20:
- Yes
- Title 22:
- No
- Title 24:
- No
- Voltage Rating:
- 120 V
- Wall Bracket:
- No
- Warranty Length:
- 1-year Limited Warranty
- Width Diameter Descriptor:
- Depth
- Wire Length:
- 6 in
- Product Depth:
- 7.75 in
Progress Lighting P5712-30 – Frequently Asked Questions
1) Can the Progress Lighting P5712-30 cylinder light be used outdoors in the rain?
Yes. The P5712-30 is Wet Location Listed and UL/cUL listed, so it can go on an exposed exterior wall with direct rain contact. It's rated for interior or exterior use, and the non-corrosive components hold up to salt, wind, water and sun, which is why it gets specified for coastal properties.
2) What bulb does the P5712-30 wall cylinder take, and is one included?
It takes a single BR30 lamp up to 75 watts into a ceramic socket, and no bulb ships with the fixture, so order lamps separately. Any dimmable BR30 you put in it will dim, since the fixture itself is fully dimmable with dimmable bulbs.
3) Can I mount this Progress cylinder light facing up as an uplight?
No. The P5712-30 is a downlight only, and Progress lists it as not able to be mounted up or down. If you need an up/down configuration on the same wall, you'll need a different cylinder.
4) What do I need at the wall to install the P5712-30, and does it come with mounting hardware?
It's a hardwired 120 volt fixture that mounts to a standard wall outlet box, and a mounting strap is included. It arrives prewired with about 6 inches of lead wire, so you need a junction box roughed in at the location, not a plug or cord.
5) How big is the Progress P5712-30 cylinder and how far does it stick out from the wall?
Overall it measures 5 x 7.75 x 7.25 inches, with 7.75 inches given as the depth (projection off the wall) and 7.25 inches the height. Center of the fixture sits 2.5 inches from the mounting point, which is the number to use when laying out multiple units to line up with door heads or window trim.
6) Is the P5712-30 light enough for a standard outlet box, or do I need a fan-rated box?
The fixture weighs 4 pounds and Progress flags it as not exceeding NEC weight limits, so a standard listed outlet box with the supplied strap carries it. No special support box is required.
7) Does this Progress cylinder wall light meet dark sky requirements for a residential or campus exterior?
Its photometry is dark sky compliant per Progress, though it is not registered with the International Dark-Sky Association. If your jurisdiction accepts full-cutoff photometry, the downward-only distribution works; if it requires an IDA-registered product on the approval sheet, this one won't satisfy that.
8) Is the Progress P5712-30 an Energy Star or JA8 compliant fixture for California Title 24 work?
No on all three. It is not Energy Star certified, not JA8 listed, and not Title 24 compliant, since it ships as an incandescent-rated BR30 socket with no lamp. It does meet Title 20. For a Title 24 residential exterior, you need a JA8-listed or integrated LED luminaire instead.
9) Will the white finish on this outdoor cylinder hold up near the ocean?
The P5712-30 comes in white and uses non-corrosive components that withstand salt, wind, water and sun, which is the reason it gets called out for coastal locations. It's the only finish this model is built in.
10) Does the P5712-30 carry a Proposition 65 warning?
Yes, a Prop 65 warning is required with this fixture. If you're shipping into California or handing off submittals for a California project, plan for that label.
11) Can I order the P5712-30 in case quantities for a multi-building exterior lighting package?
It sells as an each, one fixture per carton, with an order multiple of 1. So for a 40-unit apartment exterior package you order 40 individual cartons rather than a case pack.
