Progress Lighting P5612-30 One...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$80.17
$30.17

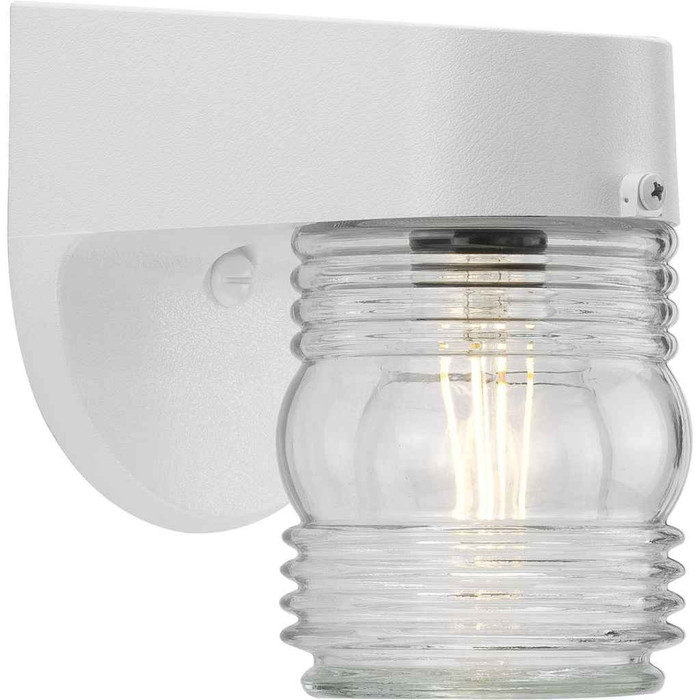

Progress Lighting P5612-30 One-Light wall lantern

Progress Lighting P5612-30 One-Light wall lantern

(No reviews yet) Write a Review

Model: P5612-30
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.17
$30.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
One-Light wall lantern

  • Prop 65

    • Yes

  • Features

    • Clear glass diffuser.
    • White finish.
    • Wall mount.


P5612-30 - spec sheet

Manufacturer Resources

Product Specs

Americans With Disabilities Act:
No
Arra Compliant:
Contact Manufacturer
Base Unit Of Measure:
EA
Box Size:
6.75x8x8.75 (in)
Buy American Compliant:
Contact Manufacturer
Can Be Mounted Up Or Down:
No
Carton Gross Weight Per Pack:
1 lb.
Carton Number Of Sub Packs:
6
Carton Pack Description:
Carton
Carton Scc 14 Next Lower Level Sub Pack:
7.85248E+11
Carton Total Units:
6
Category General:
Outdoor
Certification Agency:
Proposition 65
Certified Listed:
UL-CUL
Certified Listed Location:
Wet Location Listed
Class Code:
K46
Collection Name:
Polycarbonate Outdoor
Color Generic:
White
Country Of Origin:
US
Darksky:
No
Description Invoice:
Polycarbonate 1-60W MED WALL LANT WH
Dimmable:
Fully dimmable with dimmable bulbs.
Each Number Of Sub Packs:
1
Each Pack Description:
Each
Each Width:
6.250 in
Energy Efficient:
No
Energy Star Certified:
No
Energy Star:
No
Eu Rohs Indicator:
Contact Manufacturer
Finish Name:
White
Fixture Type:
Outdoor Wall
Freight Class Code:
10970003
Glass Feature:
Clear
Gross Weight With Packaging:
1 lb.
Harmonization Code:
9405198010
Height To Center:
2.5 in
Image Actual Or Representative:
A
Indoor Outdoor:
Outdoor
Installation Mounting Type:
Wall
Ja8:
No
Lamp Included:
No
Lamp Shape:
A19
Lamp Type:
A19
Lamp Type Actual:
A19
Lamp Wattage:
60 W
Lifestyle:
Traditional;Transitional
Lowest Level Uom:
Each
Mount Location:
Wall
Mounting For Outlet Box Included:
strap
Mounting Method:
Wall
Msds Flag:
No
New Products:
No
Note Weight Of Fixture Exceeds Nec Limits:
No
Number Of Lamps:
1
Number Of Lamps Total:
1
Order Multiple:
1 EA
Other Heavy Metal Content Indicator:
No
Pallet Height:
52.200 in
Pallet Length:
48.000 in
Pallet Weight:
108.000 lb.
Pallet Width:
48.000 in
Post Top Fits Standard:
No
Power Source:
Hardwired
Power Source Required :
Yes
Prewired:
Yes
Price Retail 2 2:
24.2
Product Color:
White
Product Dimensions:
4.75 in x 5.75 in x 7.25 in
Product Height:
7.25 in
Product Length:
4.75 in
Product Style:
Transitional
Product Wattage:
60 W
Product Weight:
1 lb.
Product Width:
5.75 in
Proposition 65 Warning Required:
Yes
Quick Install Canopy:
No
Quick Link Connector:
No
Returnable Indicator:
Yes
Room Type:
Outdoor
Service Life:
On Website=Yes
Socket Type:
socket
Socket Type Material:
porcelain
Standard:
UL-CUL
Stock Indicator:
S - Shelf Stock
Sub Class Code:
K46K375
Title 20:
Yes
Title 22:
No
Title 24:
No
Voltage Rating:
120 V
Warranty Length:
1-year Limited Warranty
Width Diameter Descriptor:
Depth
Wire Length:
6 in
Product Depth:
5.75 in

Progress Lighting P5612-30 – Frequently Asked Questions

1) Can the Progress Lighting P5612-30 wall lantern be used in an exposed outdoor location that gets rained on?
Yes. The P5612-30 is UL and cUL listed for wet locations, so it can go on an unprotected exterior wall where it takes direct rain. It's an outdoor wall fixture in Progress Lighting's Polycarbonate Outdoor collection, with a clear glass diffuser and a white finish.
2) What bulb does the P5612-30 wall lantern take, and does one come with it?
It takes one A19 medium-base lamp up to 60 watts, into a porcelain socket. No bulb is packed with the fixture, so order lamps separately. Any dimmable A19 you put in it will dim, since the fixture itself is fully dimmable with dimmable bulbs.
3) What's included for mounting the P5612-30, and does it fit a standard outlet box?
A mounting strap is supplied for the outlet box, and the fixture comes prewired with 6 inch leads, so an electrician is splicing to house wiring in the box and screwing it up. It's hardwired at 120V, wall mount only. At 1 pound it doesn't approach NEC fixture weight limits on a standard box.
4) Can I install the P5612-30 lantern upside down or use it on a post?
No on both. The P5612-30 is a wall-mount fixture with a fixed orientation, it is not rated to be mounted up or down, and it does not fit a standard post top. If you need a post-mounted or ceiling/downward option, spec a different fixture type.
5) Is the Progress P5612-30 suitable for a California Title 24 outdoor lighting project or an Energy Star rebate?
No. The P5612-30 is not Energy Star certified, is not flagged as energy efficient, and does not carry Title 24 or JA8 compliance. It is a Title 20 listed product. It's an incandescent-style A19 socket fixture, so for a Title 24 or JA8 residential exterior spec you'd need a JA8-compliant LED fixture instead.
6) Will the P5612-30 lantern meet a dark sky ordinance?
No. The P5612-30 is not a dark sky compliant fixture, and it uses a clear glass diffuser, which throws light in all directions rather than cutting it off below the horizontal. If your municipality enforces a dark sky ordinance on exterior wall packs, choose a full-cutoff fixture instead.
7) I'm standardizing exterior lighting across a multi-family property. How does the P5612-30 order and ship?
It's sold each, with an order multiple of 1 EA, and cartons hold 6 units. Each unit ships in a 6.75 x 8 x 8.75 inch box at 1 pound gross. Since it's a single white finish with a clear diffuser and one fixed model number, repeat orders for additional buildings match exactly with no finish or option axis to track.
8) Does the P5612-30 wall lantern carry a Proposition 65 warning, and where is it made?
A Proposition 65 warning is required for this fixture. Country of origin is listed as US. For federal or state jobs asking about ARRA or Buy American status, Progress Lighting handles those determinations directly.
