Leviton LP420-3B 200A NEMA 3R Outdoor Load Center Enclosure, 42-Space Main Breaker

(No reviews yet) Write a Review

Model: LP420-3B

In Stock (leaves warehouse same day if ordered before 3pm ET)

$528.67
$4.29
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

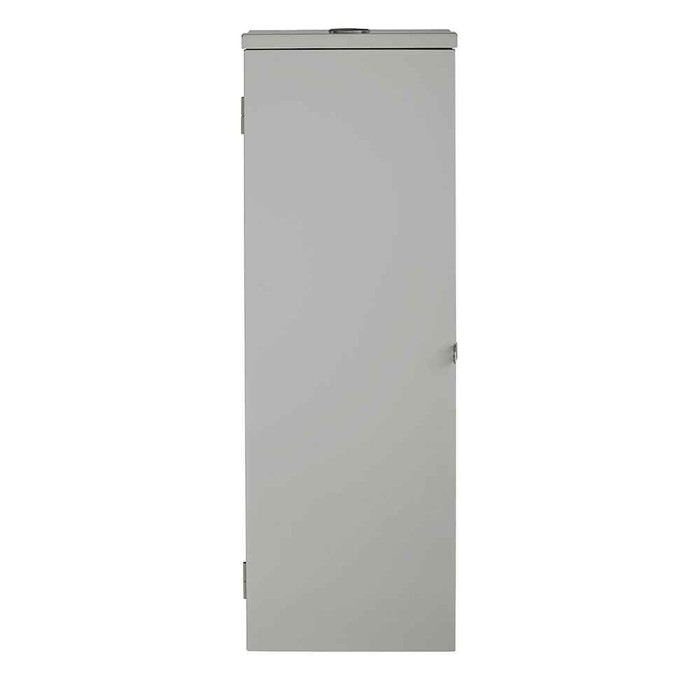

Leviton LP420-3B 200A NEMA 3R Outdoor Load Center Enclosure, 42-Space Main Breaker

The Leviton LP420-3B is a 200 Amp outdoor load center rated NEMA 3R for exposure to rain and outdoor conditions, supplied as an enclosure and door only with a main breaker configuration. It provides 42 spaces / 42 circuits for flexible branch-circuit distribution and carries a 22KA short circuit interrupt rating for demanding residential and light commercial service entrances. Rated 120/240 VAC, this load center is built for code-compliant main electrical distribution in outdoor installations.

Key Features

  • Enclosure Dimensions: 43.5" H x 15" W x 4.4" D enclosure and door for outdoor mounting.
  • Durable Construction: Galvanized steel enclosure with a gray baked enamel finish for corrosion resistance in outdoor environments.
  • Main Breaker Configuration: 200 Amp main breaker load center with 42 spaces / 42 circuits for extensive branch circuit capacity.
  • Electrical Rating: 120/240 VAC with a 22KA short circuit current interrupt rating for reliable fault protection.
  • NEMA 3R Outdoor Rating: Enclosure rated NEMA 3R Outdoor for use in wet and outdoor locations.
  • Busbar: Copper, bright tin-plated busbar for dependable conductivity and connection integrity.
  • Supply and Ground Connections: Supply connections accept 3 AWG - 300 MCM Cu/Al; ground connections accept 4 AWG - 2/0 AWG Cu/Al.

Certifications & Compliance

  • UL 50 Listed
  • UL 50E Listed
  • UL 67 Listed
  • UL 869A Listed
  • NEMA 3R Outdoor Rated Enclosure

Technical Specifications

  • Busbar Material: Copper, Bright Tin-Plated
  • Enclosure Material: Galvanized Steel, Gray Baked Enamel
  • Ground Connection: 4 AWG - 2/0 AWG Cu/Al
  • Nema Enclosure Type: NEMA 3R Outdoor
  • Operating Temperature: 0°C to 40°C
  • Short Circuit Current Rating: 22 KA
  • Spaces Circuits: 42 / 42
  • Supply Connections: 3 AWG - 300 MCM Cu/Al
  • Ul 50: Yes
  • Ul 50e: Yes
  • Ul 67: Yes
  • Ul 869a: Yes
  • Product Voltage: 120/240 VAC
  • Product Dimension: 43.5" H x 15" W x 4.4" D
  • Product Weight: 59.8 lbs
  • Product Color: Grey

Typical Applications

  • Outdoor Residential and Light Commercial Service Entrances
  • Main Electrical Distribution and Load Centers
  • 200 Amp Service Upgrades and Panel Replacements
  • Outdoor and Wet-Location Electrical Installations
  • New Construction and Renovation Electrical Service

Why Leviton?

Leviton builds this LP420-3B load center with a galvanized steel enclosure and gray baked enamel finish to withstand outdoor exposure, backed by UL 50, UL 50E, UL 67, and UL 869A listings for verified safety compliance. With a copper, bright tin-plated busbar and a 22KA interrupt rating, this load center delivers the reliable, code-compliant performance electrical professionals need for main service distribution.

Manufacturer Resources

Product Specs

Busbar Material:
Copper, Bright Tin-Plated
Enclosure Material:
Galvanized Steel, Gray Baked Enamel
Ground Connection:
4 AWG - 2/0 AWG Cu/Al
Nema Enclosure Type:
NEMA 3R Outdoor
Operating Temperature:
0°C to 40°C
Short Circuit Current Rating:
22 KA
Spaces Circuits:
42 / 42
Supply Connections:
3 AWG - 300 MCM Cu/Al
Type Of Load Center:
Main Breaker
Ul 50:
Yes
Ul 50e:
Yes
Ul 67:
Yes
Ul 869a:
Yes
Product Group:
Wiring Devices
Department:
Electrical
Product Subgroup:
Combination Devices
Amperage Rating:
200A
Product Voltage:
120/240 VAC
Product Dimension:
43.5" H x 15" W x 4.4" D
Product Weight:
59.8 lbs
Product Type:
Load Center
Product Color:
Grey

Leviton LP420-3B – Frequently Asked Questions

1) Does the Leviton LP420-3B come with breakers, or is it just the enclosure?
Enclosure and door only. The LP420-3B is a 200 amp main breaker load center supplied as the box and door, so the main breaker and all branch breakers have to be ordered separately alongside it. Budget the full 42 circuits worth of breakers if you're filling it out.
2) Can the LP420-3B load center be mounted outside on an exterior wall?
Yes, that's what it's built for. The enclosure is NEMA 3R rated for outdoor and wet locations, in galvanized steel with a gray baked enamel finish for corrosion resistance. Operating range is 0C to 40C, so it suits a normal exterior service entrance but not a location that runs below freezing or above 104F.
3) Is a 22KA interrupt rating enough for my 200 amp service?
The LP420-3B carries a 22 KA short circuit current rating at 120/240 VAC. That covers the available fault current at the great majority of residential and light commercial service entrances fed from a utility transformer. Where the utility or engineer has calculated available fault current above 22 kA at the panel, you need a higher rated assembly instead.
4) Can I use the Leviton LP420-3B on a 208V three phase system?
No. It's rated 120/240 VAC single phase, so it belongs on a standard residential or light commercial single phase service. A 208Y/120 three phase distribution panel is a different product entirely.
5) What is the difference between the Leviton LP420-3B and the Square D Homeline 60-space main lugs load center?
They solve different jobs. The LP420-3B is a 200 A main breaker load center with 42 spaces / 42 circuits in a NEMA 3R outdoor enclosure, so it can be mounted in a wet or exposed location and disconnects the service at the panel itself. The Square D Homeline HOM-L225PC is a 225 A convertible main lugs load center with 60 spaces and 120 circuits in a NEMA 1 enclosure, which is an indoor, dry-location box fed from an upstream disconnect. If the panel goes on an exterior wall and needs its own main, the LP420-3B is the one that fits; if it is an indoor subpanel or a lugs-fed distribution panel needing high circuit count, the Homeline is.
6) Are Square D QO or Homeline breakers a substitute for what goes in the Leviton LP420-3B?
They are not interchangeable across these panels. The Square D QO 112M100P belongs to the QO series and the HOM-L225PC to the Homeline series, and each takes breakers built for its own series and bus. The Leviton LP420-3B is a Leviton load center with a copper, bright tin-plated busbar rated 120/240 VAC and 22 KA short circuit current, and it must be populated with breakers listed for it. When standardizing breaker stock across a property, match the panel series first, since a panel that looks dimensionally similar does not accept another maker's breakers.
7) I need a load center for an indoor mechanical room, is this the right one?
For a dry indoor location a NEMA 1 panel is the normal choice and costs you nothing in protection you need. The Square D Homeline 60-space 225A convertible main lugs and the Square D QO plug-on neutral convertible main lugs are both NEMA 1 units. Save the LP420-3B for where the panel is actually exposed to weather, since its NEMA 3R rating is the reason to pick it.
8) How many circuits can I actually run in the Leviton LP420-3B?
42 spaces and 42 circuits, so it is not a tandem-rated panel where a space doubles up. One breaker pole per space, and two-pole breakers eat two spaces. If you're planning past 42 circuits on a 200 amp service, you're looking at a larger panel or a subfeed.
9) I only need a subpanel fed from an existing service. Is there a simpler alternative to the Leviton LP420-3B?
Yes. The LP420-3B is a main breaker load center, which is what you want when the panel is the service disconnect. For a subpanel fed from an upstream breaker, a main lugs panel such as the Square D QO 112M100P convertible main lugs load center or the Square D Homeline HOM-L225PC 225 A convertible main lugs load center does the job without a second main. Both of those are NEMA 1, so they belong indoors; the LP420-3B is the choice if that subpanel has to live outside.
10) Which 200 amp panel accepts 300 MCM service conductors for a service upgrade?
The Leviton LP420-3B accepts 3 AWG to 300 MCM Cu/Al on the supply connections and 4 AWG to 2/0 AWG Cu/Al on the ground, at 200 A with a 22 KA short circuit current rating, in a 43.5 in. H x 15 in. W x 4.4 in. D NEMA 3R enclosure. That combination of a panel-mounted 200 A main and an outdoor-rated box is what a 200 A service upgrade on an exterior wall calls for. The Square D Homeline HOM-L225PC and QO 112M100P are convertible main lugs panels in NEMA 1 enclosures, so they are set up as downstream distribution rather than an outdoor service entrance.
11) Does the Leviton LP420-3B have a copper or aluminum bus?
Copper, bright tin-plated. For a property manager or facility buyer standardizing outdoor panels across a portfolio, that's the bus material that holds torque and resists oxidation at the breaker stabs better than a plated aluminum bus.
