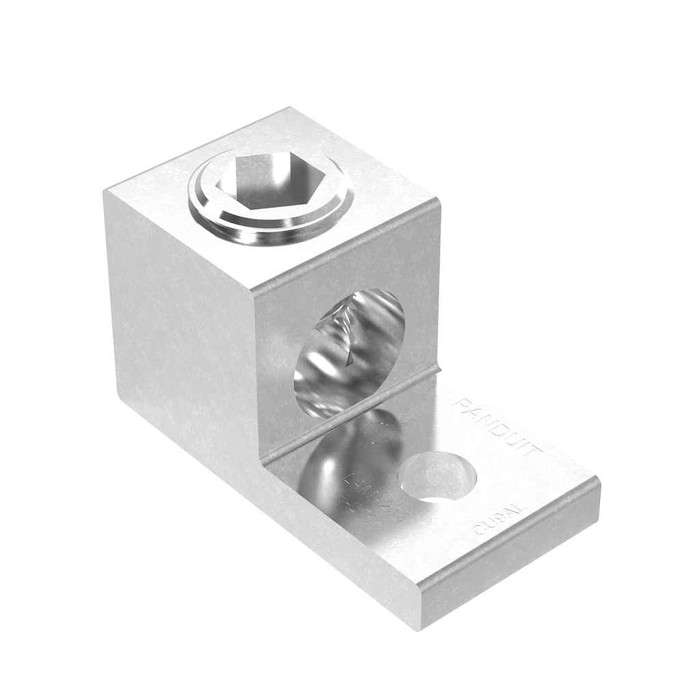

Panduit LAMA250-56-QY Pan-Lug™ LAMA250-56-QY Mech Con, One Hole Lug, 250, Tin Plt Al, Strt, 0.31" Stud

Panduit LAMA250-56-QY Pan-Lug™ Mechanical Lug, 250 kcmil Tin-Plated Aluminum One-Hole Straight Tongue

(No reviews yet) Write a Review

Model: LAMA250-56-QY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$65.47
$18.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit LAMA250-56-QY Pan-Lug™ Mechanical Lug, 250 kcmil Tin-Plated Aluminum One-Hole Straight Tongue

The Panduit Pan-Lug™ mechanical lug delivers a reliable, code-compliant connection for stranded aluminum or copper conductors from 6 AWG up to 250 kcmil. Built from tin-plated aluminum with a single-barrel, straight-tongue design and a 0.31" stud hole, this cULus-listed lug is rated for 600V and 90°C operation, making it suitable for demanding commercial and industrial electrical terminations.

Key Features

  • Conductor Capacity: Accepts stranded aluminum or copper conductors from 6 AWG to 250 kcmil for versatile termination needs.
  • Tin-Plated Aluminum Construction: Offers corrosion resistance and dependable long-term conductivity.
  • Single Barrel Design: Simplifies conductor insertion and compression for a straightforward installation.
  • Straight Tongue Configuration: One-hole mounting with a 0.31" stud hole for secure mechanical attachment.
  • Hex Screw Type: Delivers consistent, reliable tightening torque for professional terminations.
  • Voltage & Temperature Rating: Rated 600V maximum with a 90°C temperature rating for demanding electrical environments.

Certifications & Compliance

  • cULus Listed
  • RoHS Compliant
  • ARRA Compliant

Technical Specifications

  • Base Material: Aluminum
  • Finish Coating: Tin-Plated
  • Barrel Type: Single Barrel
  • Tongue Type: Straight Tongue
  • Screw Type: Hex
  • Maximum Voltage (V): 600
  • Csa Temperature Rating (C): 90
  • Ul Temperature Rating (C): 90
  • Maximum Aluminum Conductor Size (Kcmil): 250
  • Maximum Copper Conductor Size (Kcmil): 250
  • Minimum Aluminum Conductor Size (Awg): 6
  • Minimum Copper Conductor Size (Awg Str): 6
  • Number Of Stud Holes: 1
  • Wire Strip Length (In): 1
  • Overall Height (In): 1.1
  • Sub Brand: Pan-Lug™
  • Country Of Origin: United States
  • Arra Compliant: Y
  • Std Ctn Qty: 500
  • Std Pkg Qty: 25
  • Uom Ea Pk: PK

Typical Applications

  • Commercial Electrical Panel Connections and Terminations
  • Industrial Control Panel and Switchgear Installations
  • Electrical Distribution Systems and Load Centers
  • Motor Control Centers and Electrical Enclosures
  • Power Distribution Equipment and Transformer Connections
  • Electrical Maintenance and Retrofit Projects

Why Panduit?

Panduit Pan-Lug™ mechanical lugs are manufactured in the United States and backed by cULus listing and RoHS compliance, delivering the dependable, code-compliant terminations electrical professionals require. With tin-plated aluminum construction and a 90°C temperature rating, this lug is built to perform reliably in demanding commercial and industrial electrical installations.

Manufacturer Resources

Product Specs

Any Reason Not to Sell:
N
Arra Compliant:
Y
Barrel Type:
Single Barrel
Base Material:
Aluminum
California Pro65 Cancer:
No
Country Of Origin:
United States
Ean:
74983596133
GTIN Carton:
5.0075E+13
GTIN Package:
74983596133
Hazardous Material Flag:
N
Lead Content Indicator:
N
Maximum Aluminum Conductor Size Kcmil:
250
Maximum Copper Conductor Size Kcmil:
250
Mercury Content Indicator:
N
Min Order Qty:
1
Minimum Aluminum Conductor Size Awg:
6
Minimum Copper Conductor Size Awg Str:
6
Note:
Stranded Aluminum or Copper Code Conductor
Number of Stud Holes:
1
Overall Height (In.):
1.1
Overall Height Mm:
27.9
Overall Length (In.):
1.99
Overall Length (mm):
50.5
Overall Width (In.):
0.99
Overall Width (mm):
25.1
Pallet Quantity:
15,000
Pallet Volume:
2.091122
Pallet Weight:
42,750.00
Product Segment:
IEI
Product Type:
Mechanical Lug
REACH Status:
N
Restricted Use of Hazardous Substances:
N
Rohs Compliant:
Compliant
Screw Type:
Hex
Standard Carton Volume Ft3:
0.0697
Standard Carton Weight Pounds:
1,425.00
Standard Package Volume Ft3:
0.0035
Standard Package Weight Pounds:
71.25
Std Carton Height In:
6.875
Std Carton Height MM:
174.625
Std Carton Length In:
20.5
Std Carton Length MM:
520.7
Std Carton Width In:
10.5
Std Carton Width MM:
266.7
Std Ctn Qty:
500
Std Package Height In:
3.5
Std Package Height MM:
88.9
Std Package Length In:
8.1
Std Package Length MM:
205.74
Std Package Width In:
4.4
Std Package Width MM:
111.76
Std. Pkg. Qty.:
25
Sub Brand:
Pan-Lug™
Tongue Angle:
Straight
Tongue Length In:
0.99
Tongue Length (mm):
25.1
Tongue Type:
Straight Tongue
Tongue Width In:
0.99
Tongue Width Mm:
25.1
UOM EA PK:
PK
Wire Strip Length Mm:
25.4
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Lugs & Terminals
Stud Hole Size (In.):
5/16
UL Temperature Rating (°C):
90
Tongue Thickness (In.):
0.25
Finish/Coating:
Tin-Plated
Wire Strip Length (In.):
1
Min. Order UOM:
Piece
Stud Hole Size (mm):
7.9
CSA Temperature Rating (°C):
90
Maximum Voltage (V):
600
Tongue Thickness (mm):
6.3
Std. Pkg. UOM:
Piece
Application:
Stranded Aluminum or Copper Code Conductor

Panduit LAMA250-56-QY – Frequently Asked Questions

1) What wire sizes does the Panduit LAMA250-56-QY lug accept?
The LAMA250-56-QY takes stranded conductor from 6 AWG all the way up to 250 kcmil, and it's rated for either aluminum or copper in that same range. That single range covers most feeder and branch terminations in a panel, so one part number handles a run of mixed sizes on a job instead of stocking several. Strip 1 inch of insulation for full barrel engagement.
2) Can I use the same Panduit Pan-Lug mechanical lug on both aluminum and copper conductors?
Yes, the Pan-Lug LAMA250-56-QY is a dual-rated mechanical lug: 6 AWG to 250 kcmil stranded in aluminum, and the identical 6 AWG to 250 kcmil range in copper. The body itself is aluminum with a tin plating, which is what makes the copper connection acceptable and keeps the aluminum-to-aluminum joint from oxidizing. For an electrician working a retrofit where the existing feeders are copper and the new ones are aluminum, that means one lug on the bar instead of two part numbers.
3) Is a straight tongue lug the right choice, or do I need a 45 or 90 degree tongue?
Straight tongue means the pad comes off the barrel in line with the conductor, so the wire enters on the same axis it lands on. That is what you want when the cable approaches the bus bar or breaker pad straight on, which is the usual case for a landing at the bottom of a panel with the conductor running up the gutter. If the bar sits perpendicular to the cable run and a straight lug would force a sharp bend inside the enclosure bending space, an angled tongue is the better part. The LAMA250-56-QY is straight only.
4) Is the Panduit LAMA250-56-QY rated for 90 degree C conductors?
90 degrees C under both UL and CSA, with a 600 volt maximum. That matters because the lug can't be the weak link in your ampacity calculation: if you're terminating THHN at the 90 C column for derating purposes, or landing on 75 C terminations, this connector doesn't limit you below the equipment rating. It's also cULus Listed and RoHS compliant.
5) How much room do I need in the enclosure for a Panduit 250 kcmil one-hole lug?
The LAMA250-56-QY body measures 1.99 x 0.99 x 1.1 inches overall (50.5 x 25.1 x 27.9 mm). The tongue itself is 0.99 inch long, 0.99 inch wide and 0.25 inch thick. Add the 1 inch strip length ahead of it when you're checking wire bending space against the gutter, and check the 0.25 inch tongue thickness against your bar stack-up if you're landing several lugs on one pad.
6) Do I need a hydraulic crimper for the Panduit Pan-Lug LAMA250-56-QY?
No tooling investment required. This is a mechanical lug, not a compression lug, so the conductor is clamped by a setscrew rather than crimped with a die. The screw takes a hex key. That's the practical difference for a service crew: a compression lug at 250 kcmil means a hydraulic tool and the right die set on the truck, while this one goes in with a hex wrench and a torque check. It also means the termination can be backed out and redone if a conductor gets swapped.
7) Is the Panduit Pan-Lug mechanical lug made in the USA and ARRA compliant for a government job?
Made in the United States and flagged ARRA compliant, which is what a public-works or federally funded project needs to see on the submittal. It also carries cULus Listing and RoHS compliance. For institutional and government procurement running domestic-content requirements on electrical material, the LAMA250-56-QY clears that documentation.
8) Does the Panduit LAMA250-56-QY come in a pack or can I buy one?
You can order a single piece. The minimum order quantity on the LAMA250-56-QY is 1 piece, though Panduit's standard package is 25 pieces and a standard carton holds 500. If you're standardizing terminations across a building's panels, the 25-count package is the sensible buying unit; for a one-off replacement in a load center, order the one.
9) Will a tin-plated aluminum lug hold up in a damp or corrosive environment?
The tin plating over the aluminum body is there for exactly that: it slows oxidation at the contact face, which is where an unplated aluminum joint loses conductivity and starts heating. That's the reason the LAMA250-56-QY is usable on copper as well as aluminum without a dissimilar-metal problem at the bar. It's a lug for enclosures and switchgear, not a submersible connector, so it still belongs inside a rated enclosure.
