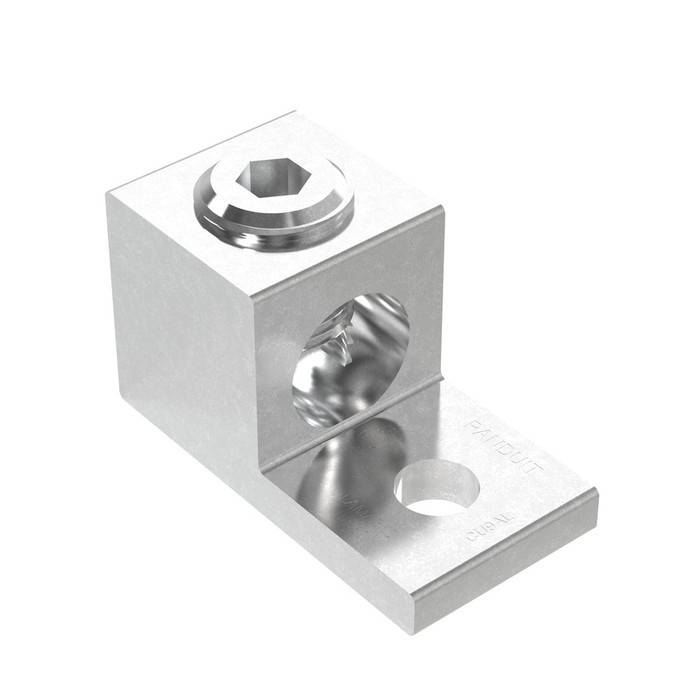

Panduit Pan-Lug One-Hole Mechanical Lug, Tin-Plated Aluminum

Panduit Pan-Lug One-Hole Mechanical Lug, Tin-Plated Aluminum

(No reviews yet) Write a Review

Model: LAMA350-38-QY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Lug One-Hole Mechanical Lug, Tin-Plated Aluminum

The Panduit Pan-Lug tin-plated aluminum one-hole mechanical lug is engineered from extruded aluminum alloy to deliver premium electrical and mechanical performance for a wide 6 AWG-300 kcmil conductor range, helping minimize inventory requirements. This single-barrel lug is cULus Listed and CSA Certified for use up to 600V and is UL temperature rated to 90 Degrees Celsius, making it suitable for demanding commercial and industrial terminations.

Key Features

  • Wide Conductor Range: Accepts 6 AWG-300 kcmil stranded aluminum or copper code conductors, reducing the number of SKUs needed on hand.
  • Durable Construction: Extruded aluminum alloy body provides premium electrical and mechanical performance.
  • Set-Screw Connection: Plated steel or aluminum set screw creates a durable electrical contact between the conductor and lug.
  • Single-Barrel, One-Hole Design: Straight tongue with 0.25 in. (6.3 mm) tongue thickness and 28.4 mm tongue length for a secure mechanical mounting.
  • Voltage Rating: Rated for use up to 600V.
  • Temperature Rating: UL and CSA temperature rated to 90 Degrees Celsius for reliable performance under load.
  • Finish: Tin-plated aluminum construction resists corrosion at the termination point.

Certifications & Compliance

  • cULus Listed
  • CSA Certified
  • Rated for Use up to 600V
  • UL and CSA Temperature Rated to 90 Degrees Celsius

Technical Specifications

  • Maximum Voltage (V): 600
  • CSA Temperature Rating (°C): 90
  • UL Temperature Rating (°C): 90
  • Stud Hole Size (In.): 3/8
  • Stud Hole Size (mm): 9.5
  • Tongue Thickness (mm): 6.3
  • Overall Length (mm): 57.1
  • Base Material: Aluminum
  • Barrel Type: Single Barrel
  • Tongue Angle: Straight
  • Country of Origin: India

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Grounding and Bonding Connections
  • Panelboard and Switchgear Terminations
  • Aluminum or Copper Conductor Splicing and Terminations
  • Renovation and New Construction Wiring

Why Panduit?

Panduit's Pan-Lug mechanical lugs combine an extruded aluminum alloy body with a tin-plated finish and a set-screw connection to deliver a durable, code-compliant termination for stranded aluminum or copper conductors. Backed by cULus Listing and CSA Certification to 600V and 90 Degrees Celsius, this lug is built for dependable performance in professional electrical installations.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0089
Standard Package Weight Pounds:
3.5950
Aluminum Conductor Size:
6 AWG-300 kcmil
Std. Pkg. UOM:
Piece
Maximum Voltage (V):
600
Tongue Thickness (In.):
0.25
CSA Temperature Rating (°C):
90
Tongue Length (mm):
28.4
Standard Carton Volume Ft3:
0.0890
Std Package Length MM:
207.01
Lead Content Indicator:
N
Mercury Content Indicator:
N
Sub Brand:
Pan-Lug™
Note:
Stranded Aluminum or Copper Code Conductor
Wire Strip Length (In.):
1-1/8
Stud Hole Size (mm):
9.5
Tongue Thickness (mm):
6.3
Product Segment:
IEI
Standard Carton Weight Pounds:
35.9500
Overall Height (In.):
1.25
Min Order Qty:
1.0000
GTIN Package:
00074983596157
Std Carton Width MM:
266.7
UOM EA PK:
PK
Pallet Volume:
0.000000
Std Package Width In:
4.45
Any Reason Not to Sell:
N
Barrel Type:
Single Barrel
Tongue Width In:
1.13
Copper Conductor Size:
6 AWG-300 kcmil
Overall Width (In.):
1.13
Tongue Angle:
Straight
REACH Status:
N
Base Material:
Aluminum
Overall Width (mm):
28.7
Std Carton Length In:
20.5
California Pro65 Cancer:
No
Std Carton Height In:
5
Std Package Length In:
8.15
Finish/Coating:
Tin-Plated
Overall Length (mm):
57.1
UL Temperature Rating (°C):
90
Std Carton Width In:
10.5
Std Ctn Qty:
250
Stud Hole Size (In.):
3/8
Product Type:
Mechanical Lug
GTIN Carton:
50074983596152
Product Size:
3/8"
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Lugs & Terminals
RoHS Compliant:
Compliant
Pallet Weight:
0.0000
Hazardous Material Flag:
N
Min. Order UOM:
Piece
Pallet Quantity:
0
Tongue Type:
Straight Tongue
Std Carton Length MM:
520.7
Application:
Stranded Aluminum or Copper Code Conductor

Panduit LAMA350-38-QY – Frequently Asked Questions

1) What wire sizes does the Panduit Pan-Lug LAMA350-38-QY mechanical lug accept?
The Pan-Lug LAMA350-38-QY takes stranded conductors from 6 AWG up to 300 kcmil, and the same range applies whether you are landing aluminum or copper. One lug covers that whole span, so a contractor stocking feeder terminations can carry a single part instead of half a dozen. It is a single-barrel lug, so one conductor per lug.
2) Will this Panduit lug bolt to a 3/8 inch busbar stud?
Yes. The tongue is punched with a 3/8 inch (9.5 mm) hole, one hole only, so it lands on any 3/8 inch stud or busbar tap. Tongue thickness is 0.25 in. (6.3 mm) and tongue width is 1.13 in., so allow for that pad footprint and hardware stack-up on a crowded bar.
3) Can I use an aluminum body lug on copper conductors?
Yes. The Pan-Lug body is extruded aluminum with a tin plating, and it is rated for stranded aluminum or copper code conductors across the same 6 AWG to 300 kcmil range. The tin plating is what makes the dual-rated termination work, since it keeps the dissimilar-metal contact from corroding at the joint.
4) Is the Panduit Pan-Lug rated for 600V service equipment at 90C conductors?
It is cULus Listed and CSA Certified for use up to 600V, with UL and CSA temperature ratings of 90 degrees Celsius. That covers standard panelboard, switchgear, and service terminations on 90C insulated conductors, with ampacity still governed by the termination rating of the equipment itself.
5) How much insulation do I strip back for this mechanical lug?
Strip 1-1/8 inches of insulation so the conductor fully seats in the barrel under the set screw. Short-stripping is the usual cause of a hot lug, since only part of the strands end up under the screw. Overall length of the lug is 57.1 mm, which tells you how much room to leave behind the stud.
6) Should I use a mechanical set-screw lug or a compression lug for this termination?
The Pan-Lug is a set-screw mechanical lug, so it installs with a hex driver and a torque wrench and needs no hydraulic crimper or die set. That is the practical choice for service work, retrofits, and any job where you are terminating a range of sizes with one part, since it covers 6 AWG through 300 kcmil. A compression lug is the alternative when your spec calls for a crimped connection or a fixed conductor size per barrel.
7) Can I use this lug for grounding and bonding connections?
Yes, grounding and bonding terminations are one of its intended uses, along with panelboard and switchgear landings and general aluminum or copper conductor terminations in commercial and industrial work. The 3/8 inch one-hole tongue bolts straight to a ground bar stud.
8) Is this Panduit lug sold individually or by the box?
Minimum order is 1 piece, and the standard package unit of measure is the piece. Standard carton quantity is 250 for anyone buying in bulk for a large feeder or grounding job.
9) Does this lug contain lead or mercury, and is it Prop 65 flagged?
The Panduit Pan-Lug tin-plated aluminum lug carries no lead content indicator and no mercury content indicator, and it is not flagged for California Proposition 65 cancer warning. It is manufactured in India.
