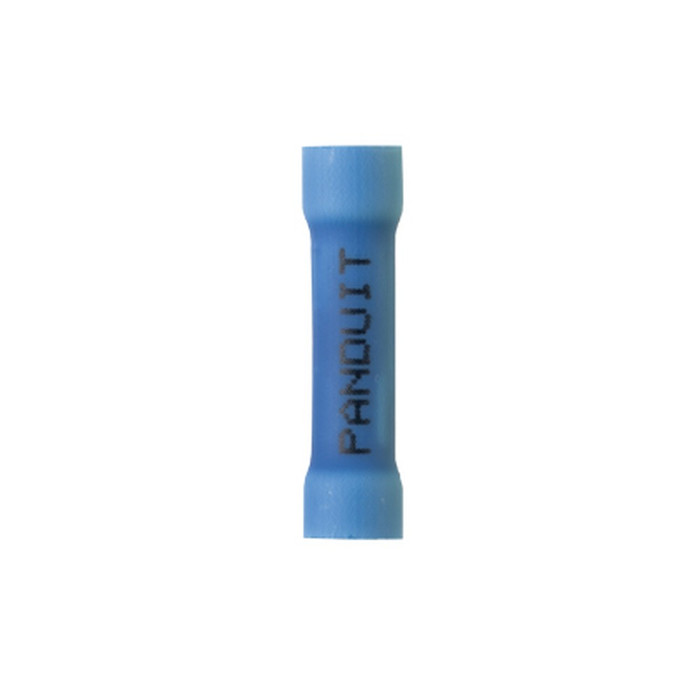

Panduit Pan-Term® BSV10X-Q Vinyl-Insulated Butt Splice, 10-12 AWG

Panduit Pan-Term® BSV10X-Q Vinyl-Insulated Butt Splice, 10-12 AWG

(No reviews yet) Write a Review

Model: BSV14X-L
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Term® BSV10X-Q Vinyl-Insulated Butt Splice, 10-12 AWG

The Panduit Pan-Term® BSV10X-Q is a vinyl-insulated butt splice engineered for reliable, permanent wire-to-wire connections in 10-12 AWG copper conductors. Rated for a maximum voltage of 600V, this funnel-entry connector features a tin-plated copper barrel and meets UL 486C and CSA C22.2 No.65 standards for dependable performance in commercial and industrial electrical applications. Each pack contains 25 pieces, making it a practical choice for panel builders, electricians, and MRO stock.

Key Features

  • Wire Range: Designed for 10-12 AWG copper conductors for consistent, secure splicing.
  • Durable Construction: Copper base material with a tin-plated finish for reliable conductivity and corrosion resistance.
  • Vinyl Insulation: Vinyl-insulated housing helps protect the splice point from moisture and abrasion.
  • Funnel Entry Barrel: Funnel-entry design simplifies wire insertion during installation.
  • Voltage Rating: Maximum voltage of 600V (0.6kV) for standard electrical circuit applications.
  • Wire Strip Length: Requires a 5/16 in. (7.9mm) strip length for proper seating.
  • Temperature Rated: UL temperature rating of 105°C (221°F) and CSA temperature rating of 105°C (221°F).
  • Packaging: Supplied 25 pieces per pack for convenient stocking.

Certifications & Compliance

  • UL 486C Standard
  • CSA C22.2 No.65
  • RoHS Compliant
  • ARRA Compliant

Technical Specifications

  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • CSA Temperature Rating (°C): 105
  • CSA Temperature Rating (°F): 221
  • UL Temperature Rating (°C): 105
  • UL Temperature Rating (°F): 221
  • Wire Strip Length (mm): 7.9
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • Product Segment: IEI
  • UOM EA PK: PK
  • Any Reason Not to Sell: N
  • REACH Status: N
  • California Pro65 Cancer: No
  • Country of Origin: Mexico
  • Pallet Quantity: 0
  • ARRA Compliant: Y
  • Hazardous Material Flag: N
  • Restricted Use of Hazardous Substances: N
  • Prop 65 Warning: No

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Panelboard and Control Panel Wiring
  • Wire-to-Wire Splicing and Repair
  • Copper Conductor Terminations
  • MRO and Electrical Maintenance Stock

Why Panduit?

Panduit Pan-Term® butt splices are built with tin-plated copper barrels and vinyl insulation to deliver dependable, code-compliant connections that meet UL 486C and CSA C22.2 No.65 standards. This combination of proven materials and recognized third-party listings makes the BSV10X-Q a trusted choice for professional electrical splicing work.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0064
Std. Pkg. UOM:
Piece
Maximum Voltage (V):
600
CSA Temperature Rating (°C):
105
Standard Carton Volume Ft3:
0.0641
Lead Content Indicator:
N
Mercury Content Indicator:
N
Sub Brand:
Pan-Term®
Wire Strip Length (In.):
5/16
Product Segment:
IEI
UL Temperature Rating (°F):
221
UOM EA PK:
PK
Pallet Volume:
0.000000
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
REACH Status:
N
Base Material:
Copper
California Pro65 Cancer:
No
Maximum Voltage (kV):
0.6
Finish/Coating:
Tin-Plated
UL Temperature Rating (°C):
105
CSA Temperature Rating (°F):
221
Country of Origin:
MEX
Product Type:
Butt Splice
Pallet Quantity:
0
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Hazardous Material Flag:
N
Insulation Material:
Vinyl
Wire Strip Length (mm):
7.9
Restricted Use of Hazardous Substances:
N
Pallet Weight:
0.0000
Prop 65 Warning:
No
Department:
Electrical
Product Group:
Wiring Devices
