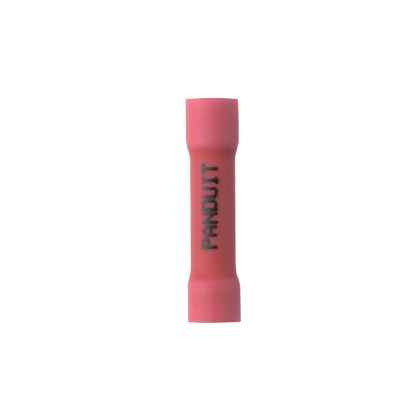

Panduit ESV18BX-Q StrongHold, ESV18BX-Q Butt Splice, Red, Vinyl, 1.03", 22-18 AWG, PK25

Panduit ESV18BX-Q StrongHold Butt Splice Connector, 22-18 AWG Red Vinyl Insulated

(No reviews yet) Write a Review

Model: ESV18BX-Q

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.49
$24.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit ESV18BX-Q StrongHold Butt Splice Connector, 22-18 AWG Red Vinyl Insulated

The Panduit ESV18BX-Q StrongHold butt splice connector delivers professional-grade wire joining performance for 22-18 AWG copper conductors. Featuring red vinyl insulation for easy identification and tin-plated copper construction for superior conductivity, this 1.03" connector provides secure, 600V-rated electrical connections in a 100 pack. The funnel entry barrel design simplifies wire insertion while ensuring reliable crimped connections for professional electrical installations.

Key Features

  • 22-18 AWG Wire Range: Accommodates standard copper conductors from 0.5mm to 1mm for versatile application compatibility.
  • Durable Construction: Tin-plated copper barrel provides excellent conductivity and corrosion resistance for long-term connection reliability.
  • Funnel Entry Barrel Design: Simplifies wire insertion and positioning for consistent, professional crimped connections.
  • 600V Maximum Rating: Supports high-voltage applications with reliable insulation performance and electrical safety.
  • Red Vinyl Insulation: Offers clear visual identification and a 105°C temperature rating for demanding environments.
  • 1.03" Overall Length: Compact profile suitable for confined spaces while maintaining robust connection integrity.
  • 100 Pack: Bulk quantity supports panel wiring, control circuit, and maintenance work without frequent reordering.

Certifications & Compliance

  • UL Listed
  • CSA Certified
  • RoHS Compliant

Technical Specifications

  • Color Code: Red
  • Csa Temperature Rating C: 105
  • Csa Temperature Rating F: 221
  • Hazardous Material Flag: N
  • Maximum Copper Conductor Size Awg: 18
  • Maximum Copper Conductor Size Awg Sol: 18
  • Maximum Copper Conductor Size Awg Str: 18
  • Maximum Metric Conductor Size Mm: 1
  • Maximum Voltage Kv: 0.6
  • Maximum Voltage V: 600
  • Mercury Content Indicator: N
  • Min Order Qty: 250
  • Minimum Copper Conductor Size Awg: 22
  • Minimum Copper Conductor Size Awg Sol: 22
  • Minimum Copper Conductor Size Awg Str: 22
  • Minimum Metric Conductor Size Mm: 0.5
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Product Segment: IEI
  • Reach Status: N
  • Standard Carton Weight Pounds: 0.5
  • Std Carton Height In: 4.4
  • Std Carton Length In: 9.1
  • Std Ctn Qty: 250
  • Std Package Length In: 4.5
  • Std Pkg Qty: 25
  • Wire Strip Length Mm: 7.9

Typical Applications

  • Electrical Panel Wiring and Distribution Systems
  • Control Circuit Connections and Automation
  • Commercial Building Electrical Infrastructure
  • Industrial Equipment Wire Splicing
  • Maintenance and Repair Operations
  • Telecommunications and Data Center Installations

Why Panduit?

Panduit StrongHold connectors deliver proven reliability with UL Listed and CSA Certified performance standards. The tin-plated copper construction and 105°C temperature rating ensure long-term durability in demanding professional environments, while RoHS compliance supports sustainable electrical practices for code-compliant installations.

Manufacturer Resources

Product Specs

Barrel Type:
Funnel Entry
Base Material:
Copper
Color Code:
Red
Copper Conductor Size Awg :
22-18
Country Of Origin:
Mexico
Csa Temperature Rating C :
105
Csa Temperature Rating F :
221
Ean:
6.13056E+11
Finish Coating:
Tin-Plated
Gtin Carton:
5.06131E+13
Gtin Package:
6.13056E+11
Hazardous Material Flag:
N
Insulation Material:
Vinyl
Maximum Copper Conductor Size Awg :
18
Maximum Copper Conductor Size Awg Sol :
18
Maximum Copper Conductor Size Awg Str :
18
Maximum Metric Conductor Size Mm :
1
Maximum Voltage Kv :
0.6
Maximum Voltage V :
600
Mercury Content Indicator:
N
Min Order Qty:
250
Minimum Copper Conductor Size Awg :
22
Minimum Copper Conductor Size Awg Sol :
22
Minimum Copper Conductor Size Awg Str :
22
Minimum Metric Conductor Size Mm :
0.5
Overall Length In :
1.03
Overall Length Mm :
26.2
Pallet Quantity:
0
Pallet Volume:
0
Pallet Weight:
0
Product Segment:
IEI
Product Type:
Butt Splice
Reach Status:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0.1031
Standard Carton Weight Pounds:
0.5
Standard Package Volume Ft3:
0.0103
Standard Package Weight Pounds:
0.05
Std Carton Height In:
4.4
Std Carton Height Mm:
111.76
Std Carton Length In:
9.1
Std Carton Length Mm:
231.14
Std Carton Width In:
4.35
Std Carton Width Mm:
110.49
Std Ctn Qty:
250
Std Package Height In:
0.75
Std Package Height Mm:
19.05
Std Package Length In:
4.5
Std Package Length Mm:
114.3
Std Package Width In:
3.05
Std Package Width Mm:
77.47
Std Pkg Qty :
25
Std Pkg Uom:
Piece
Wire Strip Length In :
16-May
Wire Strip Length Mm :
7.9
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
25

Panduit ESV18BX-Q – Frequently Asked Questions

1) How much insulation do I strip before crimping a Panduit ESV18 butt splice?
Strip about 7.9 mm of insulation off each conductor. That lands the bare copper fully into the barrel from each end without leaving exposed wire outside the splice. The funnel entry barrel helps guide stranded ends in without birdcaging.
2) Can I use this red butt splice on a 480V control circuit?
Yes. The ESV18BX-Q is rated to 600V maximum (0.6 kV), which covers 480V control and power wiring as well as the usual 120/277V circuits.
3) Will a vinyl insulated splice hold up in a hot equipment enclosure?
The vinyl insulation on the ESV18BX-Q is rated to 105 C (221 F) per CSA, which covers most motor control centers and equipment cabinets. For anything running hotter than that continuously, step up to a nylon or heat shrink insulated splice instead.
4) Is the Panduit ESV18BX-Q splice barrel bare copper or plated?
Copper base material with a tin plating. The tin plate is what keeps the contact resistance stable and resists corrosion on the crimp over time, which matters in damp mechanical rooms and outdoor-adjacent panels.
5) How many Panduit ESV18BX-Q splices come in a pack, and what is the minimum order?
The standard package is 25 pieces. The standard carton holds 250, and the minimum order quantity is 250, so an order works out to ten 25-piece packs.
6) Does the Panduit ESV18BX-Q meet UL, CSA and RoHS requirements for a spec job?
It is UL Listed and CSA Certified, and it is RoHS compliant. It also carries no mercury content and is not flagged as hazardous material, which simplifies submittals on healthcare, education, and government work.
7) What is the difference between a butt splice like this and a ring or fork terminal?
A butt splice joins two conductor ends inline, one wire crimped into each end of the barrel. It does not land on a screw or stud. If you need to terminate at a terminal block, breaker lug, or ground bar, you want a ring or fork terminal in the same 22-18 AWG range instead. Use the ESV18BX-Q for extending a run, repairing a cut conductor, or splicing a control lead.
8) Is this splice short enough to fit inside a crowded wireway or junction box?
Overall length is 1.03 inches (26.2 mm), so the finished splice adds just over an inch to the run. That fits comfortably in a wireway, device box, or behind a panel gutter without forcing a bigger bend radius.
9) Where is the Panduit StrongHold ESV18BX-Q made, and how much does a carton weigh for shipping?
Country of origin is Mexico. A standard carton of 250 weighs half a pound and measures 9.1 by 4.4 by 4.35 inches, so full-case buying adds essentially nothing to a freight bill.
How fast can I get the Panduit ESV18BX-Q delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Panduit ESV18BX-Q come with a warranty?
Absolutely. The Panduit ESV18BX-Q is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Panduit ESV18BX-Q?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Panduit ESV18BX-Q from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
