Panduit Pan-Ty® PLT1M-C0 Black...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.33
$0.32

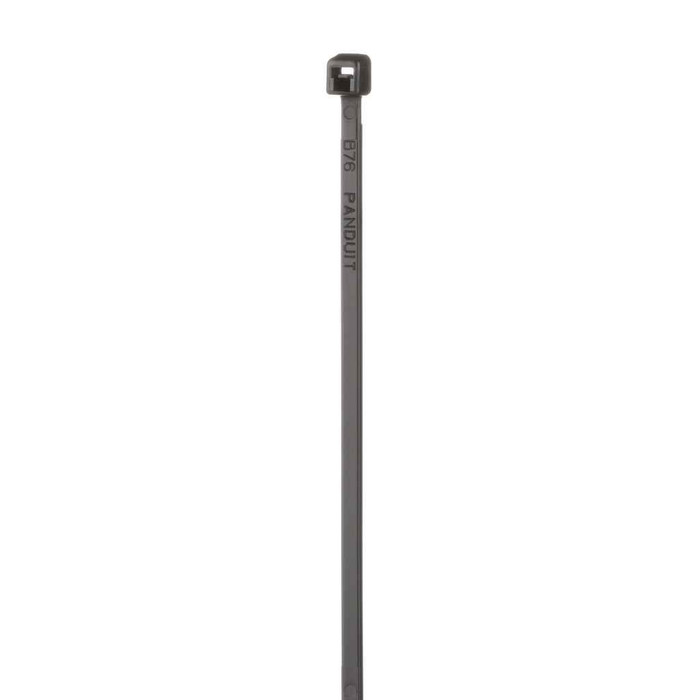

Panduit PLT1M-C0 Pan-Ty® PLT1M-C0 Cable Tie, Black, UV PA6.6, 3.9"L, 18lb, PK100

Panduit Pan-Ty® PLT1M-C0 Black UV-Resistant Nylon Cable Tie, 3.9"L, 18lb, PK100

(No reviews yet) Write a Review

Model: PLT1M-C0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.33
$0.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Ty® PLT1M-C0 Black UV-Resistant Nylon Cable Tie, 3.9"L, 18lb, PK100

The Panduit Pan-Ty® PLT1M-C0 is a black, UV-resistant and weather-resistant Nylon 6.6 cable tie engineered for reliable bundling and securing of wires and cables in indoor and outdoor electrical installations. Each tie measures 3.9"L (99mm) overall length and delivers a minimum loop tensile strength of 18lb (80N), accommodating bundle diameters from 0.06" to 0.87" (1.5mm to 22mm). Backed by UL Recognition, CSA Certification, and RoHS compliance, this PK100 pack of 100 pieces is built for demanding commercial, industrial, and outdoor cable management applications.

Key Features

  • Overall Length: 3.9"L (99mm) for standard bundling and harnessing tasks.
  • Durable Construction: UV-resistant, weather-resistant Nylon 6.6 (PA6.6) body for long-term indoor/outdoor performance.
  • Body Dimensions: 0.098" body width and 0.043" body thickness for a secure, low-profile hold.
  • Tensile Strength: 18lb (80N) minimum loop tensile strength keeps bundles secure under load.
  • Bundle Diameter Range: Accommodates 0.06" to 0.87" (1.5mm to 22mm) diameter bundles.
  • Wide Operating Range: Rated from -60°C to 85°C (-76°F to 185°F) with a minimum installation temperature of -20°C (-4°F).
  • Indoor/Outdoor Rated: UV- and weather-resistant formulation suited for exposed and protected environments alike.
  • Tool Compatible: Designed for use with Panduit GTS-E, GS2B-E, PTS, PPTS, and STS2 installation tools.

Certifications & Compliance

  • CSA Certified
  • UL Recognized (File #E56854)
  • UL 62275 Compliant (Type 2, 21)
  • RoHS Compliant

Technical Specifications

  • Product Material: Nylon 6.6 (UV-Resistant, Weather-Resistant)
  • Overall Length: 3.94in (99mm)
  • Body Width/Thickness: 0.098in / 0.043in (2.5mm / 1.1mm)
  • Min. Loop Tensile Strength: 18lb (80N)
  • Bundle Diameter Range: 0.06in-0.87in (1.5mm-22mm)
  • Operating Temperature: -60°C to 85°C (-76°F to 185°F)
  • Min. Installation Temperature: -20°C (-4°F)
  • Environment: Indoor/Outdoor
  • For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
  • Country Of Origin: Malaysia
  • Standard Package Quantity: 100 Piece

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Cable and Wire Bundling in Panelboards and Enclosures
  • Indoor and Outdoor Cable Management
  • Data Center and Telecommunications Cabling
  • Renovation and New Construction Wiring Projects

Why Panduit?

Panduit backs the Pan-Ty® PLT1M-C0 with UL Recognition, CSA Certification, and RoHS compliance, reflecting a commitment to reliable, code-compliant cable management products. The UV-resistant and weather-resistant Nylon 6.6 construction is engineered to perform across a wide temperature range, making it a dependable choice for professional electrical and data installations that demand long-term durability.

Manufacturer Resources

Product Specs

Any Reason Not To Sell:
N
Arra Compliant:
Y
Body Thickness In:
0.043
Body Thickness Mm:
1.1
Body Width In:
0.098
Body Width Mm:
2.5
California Pro65 Cancer:
No
Country Of Origin:
Malaysia
Ean:
74983540563
Environment:
Indoor/Outdoor
For Use With:
GTS-E, GS2B-E, PTS, PPTS, STS2
Gtin Carton:
5.0075E+13
Gtin Package:
74983540563
Hazardous Material Flag:
N
Lead Content Indicator:
N
Material Description:
Nylon 6.6 (UV-Resistant, Weather-Resistant)
Maximum Bundle Diameter In:
0.87
Maximum Bundle Diameter Mm:
22
Maximum Operating Temperature C:
85
Maximum Operating Temperature F:
185
Mercury Content Indicator:
N
Min Order Qty:
1,000.00
Min Order Uom:
Piece
Minimum Bundle Diameter In:
0.06
Minimum Bundle Diameter Mm:
1.5
Minimum Installation Temperature C:
-20
Minimum Installation Temperature F:
-4
Minimum Loop Tensile Strength Lb:
18
Minimum Loop Tensile Strength N:
80
Minimum Operating Temperature C:
-60
Minimum Operating Temperature F:
-76
Overall Length In:
3.94
Overall Length Mm:
99
Pallet Quantity:
224,000
Pallet Volume:
53.093899
Pallet Weight:
336
Product Color:
Black
Product Material:
Nylon 6.6
Product Segment:
IEI
Product Type:
Premium Cable Tie
Reach Status:
N
Resistance Properties:
UV-Resistant, Weather-Resistant
Restricted Use Of Hazardous Substances:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0.237
Standard Carton Weight Pounds:
1.5
Standard Package Volume Ft3:
0.0237
Standard Package Weight Pounds:
0.15
Std Carton Height In:
5.6
Std Carton Height Mm:
142.24
Std Carton Length In:
10.3
Std Carton Length Mm:
261.62
Std Carton Width In:
6.45
Std Carton Width Mm:
163.83
Std Ctn Qty:
1000
Std Package Height In:
0.95
Std Package Height Mm:
24.13
Std Package Length In:
6
Std Package Length Mm:
152.4
Std Package Width In:
3.85
Std Package Width Mm:
97.79
Std Pkg Qty:
100
Std Pkg Uom:
Piece
Uom Ea Pk:
PK
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Cable Ties & Mounts

Panduit PLT1M-C0 – Frequently Asked Questions

1) Can Panduit PLT1M-C0 ties be used outdoors in direct sunlight?
Yes. The black PLT1M-C0 is made from UV-resistant, weather-resistant Nylon 6.6 and is rated for indoor and outdoor use. The black UV formulation is the one to use on exposed runs; natural (uncolored) nylon ties are indoor only. Service range is -60 C to 85 C (-76 F to 185 F).
2) Can I install Panduit cable ties in cold weather?
Minimum installation temperature for the PLT1M-C0 is -20 C (-4 F). Below that, nylon gets brittle and the tie can crack as it is tensioned. Once installed, it keeps working down to -60 C (-76 F), so a cold storage or outdoor winter installation is fine as long as the tie itself is above -4 F when you cinch it.
3) Is the Panduit PLT1M-C0 UL Recognized and RoHS compliant?
The PLT1M-C0 is UL Recognized under File E56854 and compliant with UL 62275 as a Type 2, 21 tie. It is also CSA Certified and RoHS compliant, with no lead or mercury content indicated. That combination is what institutional and government specs usually call for on cable management.
4) How much load will an 18 lb cable tie actually hold?
18 lb (80 N) is the minimum loop tensile strength, meaning the closed loop is rated to that before failure. It is a bundling rating, not a support rating, so it is sized for holding wire bundles together in panelboards, enclosures and trays rather than carrying suspended weight. For heavier bundles or anything structural, step up to a heavier Panduit Pan-Ty cross section.
5) Which Panduit tools install the PLT1M-C0 cable tie?
It is cut off and tensioned with the Panduit GTS-E, GS2B-E, PTS, PPTS, and STS2 installation tools. A tool is not required to install the tie, but it gives you repeatable tension and a flush cut-off, which is what most inspectors want to see on a commercial panel job.
6) How many Panduit PLT1M-C0 ties come in a pack, and how are they cartoned?
Standard package is 100 pieces, and the standard carton holds 1,000 pieces (ten packs). Minimum order quantity is 1,000 pieces. Handy if you are pricing a full building rough-in rather than a single panel.
7) Will a narrow cable tie cut into low-voltage or data cable jackets?
The PLT1M-C0 has a 0.098 in wide by 0.043 in thick body (2.5 mm by 1.1 mm), which spreads tension over a broader bearing surface than a thin fine-pitch tie. It is used for data center and telecom bundling, but on Cat 6 and fiber the usual rule still applies: tension only to snug, since over-tightening any nylon tie deforms the jacket and changes pair geometry. A tension-limiting tool such as the GS2B-E takes the guesswork out.
8) Is the PLT1M-C0 the right tie for a Buy American or ARRA-funded project?
Country of origin on the PLT1M-C0 is Malaysia, and the item is flagged ARRA compliant in Panduit's data. On federally funded work, confirm which standard your contract cites, because ARRA compliance and Buy American domestic-content rules are not the same test.
