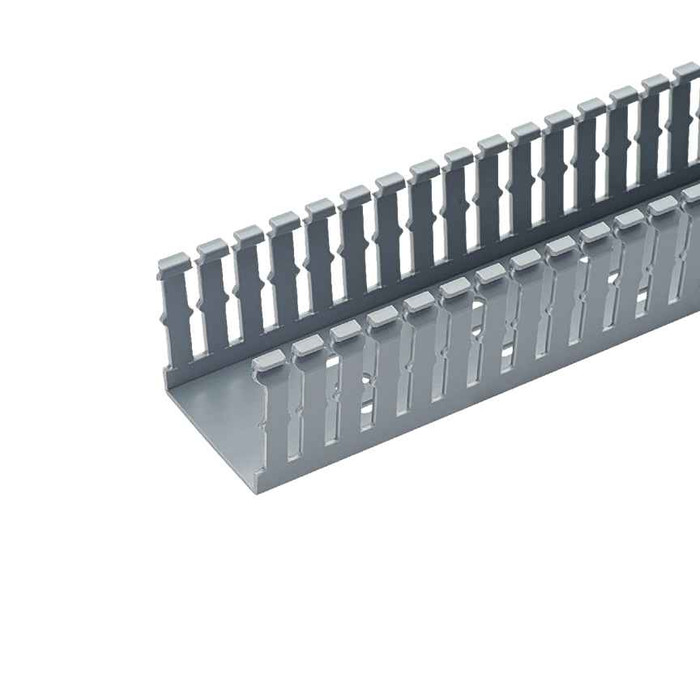

Panduit F2X3LG6 Panduct® F2X3LG6 Base Wiring Duct

Panduit Panduct F2X3LG6 Narrow Slot Base Wiring Duct, 2.25" x 3.14" x 6', Light Gray PVC, 100 Pack

(No reviews yet) Write a Review

Model: F2X3LG6

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,101.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Panduct F2X3LG6 Narrow Slot Base Wiring Duct, Light Gray PVC

The Panduit Panduct F2X3LG6 is a narrow slot base wiring duct engineered for high-density terminal block applications, measuring 2.25" wide x 3.14" high x 6' in length. Constructed of durable Light Gray PVC with a UL94V-0 flammability rating, this base duct features a 0.2" narrow slot width that packs more slots into tight terminal block spacing for organized, professional wire routing. Mounting holes allow for secure, permanent installation, and this listing covers a 100-count pack of 6' sections. Lead-free and RoHS compliant, it is built to meet the demands of professional electrical and industrial control installations.

Key Features

  • Trade Size: 2.25" width x 3.14" height x 6' length base duct section for high-capacity cable routing.
  • Narrow Slot Design: 0.2" slot width delivers more slots to match the spacing of high-density terminal block applications.
  • Durable Construction: Light Gray PVC material with UL94V-0 flammability rating for long-lasting, fire-safe performance.
  • Secure Mounting: Mounting-hole installation method supports reliable, permanent cable management assemblies.
  • Lead-Free Material: RoHS-compliant construction meets environmental standards for professional electrical work.
  • Base Only: Includes base duct only (cover part number C2LG6 sold separately).
  • Pack Quantity: Supplied as a 100-count pack of 6' base duct sections.

Certifications & Compliance

  • UL Recognized
  • CE Compliant
  • BABA Compliant
  • RoHS Compliant
  • UL94V-0 Flammability Rating

Technical Specifications

  • Any Reason Not To Sell: N
  • Arra Compliant: Y
  • Hazardous Material Flag: N
  • Mercury Content Indicator: N
  • Min Order Qty: 60
  • Overall Length Ft: 6
  • Product Color: Light Grey
  • Product Material: PVC
  • Product Segment: IEI
  • Reach Status: N
  • Slot Width In: 0.2
  • Slot Width Mm: 5
  • Std Carton Height In: 3.6
  • Std Ctn Qty: 60
  • Std Package Height In: 3
  • Std Package Length In: 72
  • Std Package Width In: 2
  • Std Pkg Qty: 6
  • Sub Brand: Panduct®
  • Uom Ea Pk: PK
  • Wiring Duct Type: F

Typical Applications

  • High-Density Terminal Block Installations
  • Industrial Control Panels
  • Commercial Electrical Enclosures
  • Data Center Cable Management
  • Manufacturing Facility Wiring
  • Telecommunications Equipment Rooms

Why Panduit?

Panduit backs the Panduct F2X3LG6 with UL Recognition, CE Compliance, and BABA Compliance, along with a UL94V-0 flammability rating and lead-free, RoHS-compliant PVC construction. This combination of certifications and durable materials makes it a dependable choice for high-density terminal block cable management in professional electrical and industrial control environments.

Manufacturer Resources

Product Specs

Any Reason Not To Sell:
N
Arra Compliant:
Y
Country Of Origin:
United States
Cover Part Number:
C2LG6
Duct Dimensions In :
2.25W x 3.14H
Ean:
74983375578
Flammability Rating:
UL94V-0
Gtin Carton:
5.0075E+13
Gtin Package:
74983375578
Hazardous Material Flag:
N
Includes:
Base Only
Material Properties:
Lead-Free
Measurement System:
Imperial
Mercury Content Indicator:
N
Min Order Qty:
60
Min Order Uom:
Foot
Mount Method:
Mounting Holes
Overall Height In :
3.14
Overall Height Mm :
79.8
Overall Length Ft :
6
Overall Length M :
1.83
Overall Width In :
2.25
Overall Width Mm :
57.2
Pallet Quantity:
1,620
Pallet Volume:
24.60375
Pallet Weight:
615.6
Product Color:
Light Grey
Product Material:
PVC
Product Segment:
IEI
Product Type:
Base Wiring Duct
Reach Status:
N
Rohs Compliant:
Compliant
Slot Width In :
0.2
Slot Width Mm :
5
Standard Carton Volume Ft3:
0.9113
Standard Carton Weight Pounds:
22.8
Standard Package Volume Ft3:
0.0911
Standard Package Weight Pounds:
2.28
Std Carton Height In:
3.6
Std Carton Height Mm:
91.44
Std Carton Length In:
72.6
Std Carton Length Mm:
1844.04
Std Carton Width In:
13.3
Std Carton Width Mm:
337.82
Std Ctn Qty:
60
Std Package Height In:
3
Std Package Height Mm:
76.2
Std Package Length In:
72
Std Package Length Mm:
1828.8
Std Package Width In:
2
Std Package Width Mm:
50.8
Std Pkg Qty :
6
Std Pkg Uom:
Foot
Sub Brand:
Panduct®
Uom Ea Pk:
PK
Wiring Duct Style:
Narrow Slot Wiring Duct
Wiring Duct Type:
F
Department:
Electrical
Product Group:
Wiring Devices

Panduit F2X3LG6 – Frequently Asked Questions

1) Does the Panduit F2X3LG6 wiring duct come with a cover?
No. The F2X3LG6 is the base duct only. The matching cover is Panduit part number C2LG6 and has to be ordered separately, so budget a cover for every 6 foot section you run.
2) Does Panduit F2X3LG6 wiring duct meet Buy America / ARRA requirements for a government job?
It is flagged ARRA compliant and BABA compliant, and country of origin is the United States. That is the combination federal, state, and institutional procurement usually asks for on panel build materials.
3) What is a narrow slot wiring duct good for versus a standard slot duct?
Narrow slot duct like the Panduct F2X3LG6 uses a 0.2 inch (5 mm) slot opening, which fits more slots into the same length of duct. That matters alongside high-density terminal blocks, where the block spacing is tight and each wire needs its own exit close to its terminal. Standard or wide slot duct gives fewer, larger openings and is the better pick when you are routing bundles of larger conductors rather than single small wires off closely spaced blocks.
4) How does the F2X3LG6 duct mount inside an enclosure?
Mounting holes. The F2X3LG6 base is drilled for screw or rivet mounting to the sub-panel, which is the permanent method most industrial control builds use. Plan on fasteners and any standoffs separately, since only the base duct is supplied.
5) How is F2X3LG6 duct packaged and what is the minimum I can order?
It ships in standard packages of 6 feet, which is one 6 foot section per package, and the minimum order is 60 feet. A standard carton holds 60 feet (ten sections) and weighs 22.8 pounds. A full pallet is 1,620 feet at 615.6 pounds, worth knowing before you schedule a dock delivery.
6) I need to match existing gray duct in my panels. Is F2X3LG6 the same light gray Panduit uses across Panduct?
It is Panduit's light gray PVC under the Panduct line, the standard gray used through that family. If you are extending or repairing an existing Panduct install, the C2LG6 cover is the light gray mate to this base, so the finished run keeps a consistent look.
