Panduit G2X2LG6 Panduct G2X2LG6 Base Wiring Duct

Panduit G2X2LG6 Wide Slot Base Wiring Duct, 2.25" x 2.12" x 6', Light Gray PVC

(No reviews yet) Write a Review

Model: G2X2LG6

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,247.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit G2X2LG6 Wide Slot Base Wiring Duct, 2.25" x 2.12" x 6', Light Gray PVC

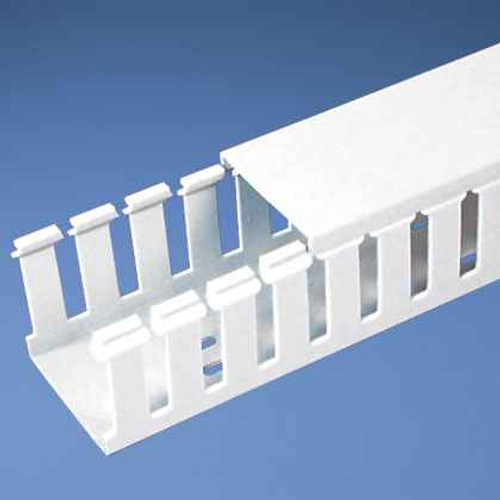

The Panduit Panduct G2X2LG6 is a wide slot/finger base wiring duct measuring 2.25" W x 2.12" H x 6' long, molded in light gray PVC for professional cable management applications. Its wide slot design delivers greater sidewall rigidity than standard slot ducts while still allowing flexible cable entry and exit along the run. Backed by a UL94V-0 flammability rating and UL Recognition, this base-only duct is built for dependable performance in commercial and industrial electrical enclosures.

Key Features

  • Trade Size: 2.25" W x 2.12" H cross-section for medium-capacity cable routing with efficient panel space utilization.
  • 6-Foot Length: Standard 6' sections reduce the number of joints needed and provide continuous, uninterrupted cable protection.
  • Wide Slot Design: Wide slot/finger openings provide greater sidewall rigidity while remaining flexible enough for a wide range of installation requirements.
  • PVC Construction: Durable, lead-free PVC body carries a UL94V-0 flammability rating for safety compliance in enclosure wiring.
  • Mounting Holes: Molded-in mounting holes allow secure, direct attachment inside panels and enclosures for long-term stability.
  • Light Gray Finish: Neutral light gray color blends cleanly with standard electrical and control panel installations.
  • Base Only: Supplied as the wiring duct base; use with the corresponding cover part number for a fully enclosed raceway.

Certifications & Compliance

  • UL Recognized
  • UL94V-0 Flammability Rating
  • RoHS Compliant
  • Lead-Free Materials

Technical Specifications

  • Arra Compliant: Y
  • California Pro65 Cancer: No
  • Hazardous Material Flag: N
  • Mercury Content Indicator: N
  • Min Order Qty: 120
  • Overall Length Ft: 6
  • Product Color: Light Gray
  • Product Material: PVC
  • Product Segment: IEI
  • Reach Status: N
  • Slot Width Mm: 7.9
  • Std Carton Height In: 4.7
  • Std Ctn Qty: 120
  • Std Package Height In: 2
  • Std Package Length In: 72
  • Std Package Width In: 2
  • Std Pkg Qty: 6
  • Wiring Duct Type: G

Typical Applications

  • Commercial Building Cable Management
  • Industrial Control Panel Wiring
  • Data Center Infrastructure
  • Telecommunications Equipment Rooms
  • Manufacturing Facility Electrical Systems
  • Office Building Electrical Distribution

Why Panduit?

Panduit backs the Panduct G2X2LG6 with UL Recognition, a UL94V-0 flammability rating, and RoHS-compliant, lead-free PVC construction. Manufactured in the United States, this base wiring duct delivers the sidewall rigidity and code-compliant performance electrical professionals need for demanding cable management installations.

Manufacturer Resources

Spec Sheet

Product Specs

Arra Compliant:
Y
California Pro65 Cancer:
No
Country Of Origin:
United States
Cover Part Number:
C2LG6
Duct Dimensions In:
2.25W x 2.12H
Ean:
74983545834
Flammability Rating:
UL94V-0
GTIN Carton:
5.0075E+13
GTIN Package:
74983545834
Hazardous Material Flag:
N
Includes:
Base Only
Material Properties:
Lead-Free
Measurement System:
Imperial
Mercury Content Indicator:
N
Min Order Qty:
120
Mount Method:
Mounting Holes
Overall Height (In.):
2.12
Overall Height Mm:
53.8
Overall Length (ft.):
6
Overall Length (m):
1.83
Overall Width (In.):
2.25
Overall Width (mm):
57.2
Pallet Quantity:
2,520
Pallet Volume:
55.094627
Pallet Weight:
648.9
Product Color:
Light Grey
Product Material:
PVC
Product Segment:
IEI
Product Type:
Base Wiring Duct
REACH Status:
N
Rohs Compliant:
Compliant
Slot Width In:
0.31
Slot Width Mm:
7.9
Standard Carton Volume Ft3:
2.6236
Standard Carton Weight Pounds:
30.9
Standard Package Volume Ft3:
0.1312
Standard Package Weight Pounds:
1.545
Std Carton Height In:
4.7
Std Carton Height MM:
119.38
Std Carton Length In:
72.9
Std Carton Length MM:
1851.66
Std Carton Width In:
13.3
Std Carton Width MM:
337.82
Std Ctn Qty:
120
Std Package Height In:
2
Std Package Height MM:
50.8
Std Package Length In:
72
Std Package Length MM:
1828.8
Std Package Width In:
2
Std Package Width MM:
50.8
Std. Pkg. Qty.:
6
Std. Pkg. UOM:
Foot
Wiring Duct Style:
Wide Slot Wiring Duct
Wiring Duct Type:
G
Department:
Electrical
Product Group:
Wiring Devices
Pack size (unit):
6
Product Subgroup:
Conduit & Raceway
Sub Brand:
Panduct®

Panduit G2X2LG6 – Frequently Asked Questions

1) Does the Panduit G2X2LG6 wiring duct come with a cover?
No. The G2X2LG6 is the duct base only. For a fully closed raceway you need to order the matching cover, Panduit part number C2LG6, separately.
2) Is this Panduit duct UL94V-0 rated and RoHS compliant for a control panel build?
Yes. The G2X2LG6 PVC body carries a UL94V-0 flammability rating, is RoHS compliant, and is made from lead-free material. The description also lists it as UL Recognized. Useful if your panel spec calls out flame rating on wire management.
3) What are the actual inside dimensions and length of the Panduit G2X2LG6 duct?
The duct section is 2.25 inches wide by 2.12 inches high (57.2 x 53.8 mm) and runs 6 feet (1.83 m) per piece. Six-foot sticks mean fewer joints across a panel run than cutting from shorter sections.
4) How does the Panduit G2X2LG6 duct mount inside a control panel?
It mounts through molded-in mounting holes, so it fastens directly to the panel subplate or enclosure wall with screws. No separate clips or rails are needed, and no adhesive is supplied.
5) How is the Panduit G2X2LG6 packaged and what is the minimum order?
Standard package is 6 feet (one 6-foot stick), and the standard carton holds 120 feet. Minimum order quantity is 120. Carton weight is 30.9 lb and a full pallet is 2,520 feet.
6) Is the Panduit G2X2LG6 duct made in the USA and ARRA compliant for a government job?
Yes on both counts: country of origin is the United States and the part is flagged ARRA compliant, which is what a public-funded or federally funded project spec usually asks for.
7) Should I use wide slot duct or narrow slot finger duct in my control panel?
Wide slot duct like the G2X2LG6 gives you stiffer sidewalls because there is more material between openings, which helps when the duct is carrying a heavy bundle or spanning between mounting screws. Narrow slot finger duct puts openings closer together, so you get more break-out points for individual conductors landing on terminal blocks. For dense terminal rows, narrow slot wins; for trunk runs across a subplate, wide slot holds its shape better. The G2X2LG6 slot opening is 0.31 inch.
8) Will the Panduit G2X2LG6 match the light gray duct already in my panels?
It is molded in light gray, the standard neutral shade used across Panduit Panduct wiring duct, so it blends with typical control and electrical panel installations. Note the cover is a separate part (C2LG6) and must be ordered in the matching gray.
