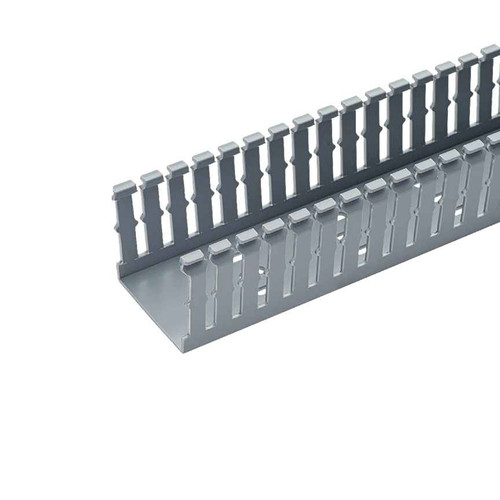

Panduit F4X4LG6 Panduct® F4X4LG6 Base Wiring Duct

Panduit F4X4LG6 Base Wiring Duct, 4.25W x 4.1H, PVC Light Gray

(No reviews yet) Write a Review

Model: F4X4LG6

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,895.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit F4X4LG6 Base Wiring Duct, 4.25W x 4.1H, PVC Light Gray

The Panduit F4X4LG6 Base Wiring Duct is a narrow-slot cable management channel engineered for high-density terminal block applications, measuring 4.25W x 4.1H and built from durable, lead-free PVC in a light gray finish. Its narrow 0.2" slot design maximizes available slot count for precise cable positioning, while the UL94V-0 flammability rating and UL Recognized, CE, RoHS, and BABA compliance support demanding industrial and commercial electrical installations. This base duct ships as a 6-foot (1.83 m) section, with cover part number C4LG6 available separately.

Key Features

  • Duct Dimensions: 4.25W x 4.1H offers medium-capacity cable routing with professional clearance and easy access for ongoing maintenance.
  • Durable PVC Construction: Lead-free PVC material with a UL94V-0 flammability rating delivers fire-resistant, long-term reliability in electrical environments.
  • Narrow 0.2" Slot Design: A finger/slot pattern provides more slots per section to accommodate high-density terminal block spacing requirements.
  • Mounting Holes Installation: Secures via mounting holes for stable installation and straightforward access when modifying cable management runs.
  • Light Gray Finish: Professional appearance integrates seamlessly with standard electrical panel and enclosure color schemes.
  • 6-Foot Overall Length: A standard 6 ft (1.83 m) length minimizes joints and connection points across cable runs; this listing is base duct only.

Certifications & Compliance

  • UL Recognized
  • CE Compliant
  • RoHS Compliant
  • BABA Compliant
  • UL94V-0 Flammability Rating

Technical Specifications

  • Product Material: PVC
  • Product Color: Light Grey
  • Overall Width In : 4.25
  • Overall Height In : 4.1
  • Overall Length Ft : 6
  • Overall Width Mm : 108
  • Slot Width In : 0.2
  • Slot Width Mm : 5
  • Min Order Qty: 60
  • Std Pkg Qty : 6
  • Std Ctn Qty: 60
  • Std Package Height In: 4
  • Std Package Length In: 72
  • Std Package Width In: 4
  • Std Carton Height In: 8.7
  • Uom Ea Pk: PK
  • Wiring Duct Type: F
  • Sub Brand: Panduct®

Typical Applications

  • Industrial Control Panels
  • Electrical Distribution Equipment
  • Terminal Block Assemblies
  • High-Density Wiring Applications
  • Commercial Electrical Installations
  • Manufacturing Facility Wiring

Why Panduit?

Panduit backs the F4X4LG6 Base Wiring Duct with UL Recognized, CE, RoHS, and BABA compliance plus a UL94V-0 flammability rating, reflecting durable, lead-free PVC construction manufactured in the United States. For professional electrical installers, that means dependable, code-compliant cable management built to perform reliably in demanding industrial and commercial environments.

Manufacturer Resources

Product Specs

Minimum Purchase:
6 units
Any Reason Not To Sell:
N
Arra Compliant:
Y
Country Of Origin:
United States
Cover Part Number:
C4LG6
Duct Dimensions In :
4.25W x 4.1H
Ean:
74983375974
Flammability Rating:
UL94V-0
Gtin Carton:
5.0075E+13
Gtin Package:
74983375974
Hazardous Material Flag:
N
Includes:
Base Only
Material Properties:
Lead-Free
Measurement System:
Imperial
Mercury Content Indicator:
N
Min Order Qty:
60
Min Order Uom:
Foot
Mount Method:
Mounting Holes
Overall Height In :
4.1
Overall Height Mm :
104.1
Overall Length Ft :
6
Overall Length M :
1.83
Overall Width In :
4.25
Overall Width Mm :
108
Pallet Quantity:
720
Pallet Volume:
64.303875
Pallet Weight:
473.4
Product Color:
Light Grey
Product Material:
PVC
Product Segment:
IEI
Product Type:
Base Wiring Duct
Reach Status:
N
Rohs Compliant:
Compliant
Slot Width In :
0.2
Slot Width Mm :
5
Standard Carton Volume Ft3:
5.3587
Standard Carton Weight Pounds:
39.45
Standard Package Volume Ft3:
0.5359
Standard Package Weight Pounds:
3.945
Std Carton Height In:
8.7
Std Carton Height Mm:
220.98
Std Carton Length In:
72.9
Std Carton Length Mm:
1851.66
Std Carton Width In:
14.6
Std Carton Width Mm:
370.84
Std Ctn Qty:
60
Std Package Height In:
4
Std Package Height Mm:
101.6
Std Package Length In:
72
Std Package Length Mm:
1828.8
Std Package Width In:
4
Std Package Width Mm:
101.6
Std Pkg Qty :
6
Std Pkg Uom:
Foot
Sub Brand:
Panduct®
Uom Ea Pk:
PK
Wiring Duct Style:
Narrow Slot Wiring Duct
Wiring Duct Type:
F
Department:
Electrical
Product Group:
Wiring Devices

Panduit F4X4LG6 – Frequently Asked Questions

1) Does the Panduit F4X4LG6 wiring duct come with a cover?
No. The F4X4LG6 ships as base duct only, so you have to order the cover separately. The matching cover is Panduit part number C4LG6. Order one cover per length of duct or you'll have open wire channel in the panel.
2) Is Panduit F4X4LG6 wiring duct flame rated for use inside a control panel?
The F4X4LG6 carries a UL94V-0 flammability rating and is UL Recognized. It's also CE and RoHS compliant. That's the rating most control panel builders are asked to show for wireway inside an industrial enclosure.
3) What is the difference between narrow slot and wide slot Panduit wiring duct?
The F4X4LG6 is narrow slot duct with a 0.2 inch (5 mm) slot opening. Narrow slot puts more fingers along the same length, so you get more exit points and can break wires out close to each terminal on tightly pitched terminal blocks. Wide slot duct has fewer, larger openings and suits fatter bundles or larger conductors that won't pass a 5 mm gap. Pick narrow slot when the panel is dense with small control wiring; pick wide slot when you're routing heavier cable.
4) Will a 14 AWG control wire fit through the 0.2 inch slots on this Panduit duct?
The slot opening on the F4X4LG6 is 0.2 inches, which is 5 mm. That passes individual small-gauge control conductors one or two at a time, which is the point of narrow slot duct. It will not pass a fat multiconductor cable or a large bundle in one go. If your breakouts are jacketed cables rather than single wires, step to a wide slot duct instead.
5) How does Panduit F4X4LG6 duct mount to a panel back plate?
Mounting holes. The F4X4LG6 base is secured through holes in the duct floor, so you fasten it down to the subpanel with screws or rivets before dropping wire in, then snap the C4LG6 cover on afterward. Nothing adhesive and no clips are involved, so you'll want to plan hole locations against whatever else is on the back plate.
6) Does Panduit F4X4LG6 duct meet Buy America requirements for a government job?
The F4X4LG6 is made in the United States, is ARRA compliant, and Panduit lists it as BABA compliant. For a federally funded institutional or municipal project where domestic sourcing is a line item on the submittal, that's the documentation you need on the duct.
7) Is Panduit F4X4LG6 wiring duct lead free?
Yes. The F4X4LG6 is lead-free PVC, RoHS compliant, and carries no mercury content. For healthcare, education, and other facilities with restricted-substance procurement rules, that clears the usual questions on a PVC wireway.
8) What color is Panduit Panduct F4X4LG6 duct, and will it match the duct already in my panels?
Light gray, which is the standard Panduct color for industrial control panels and matches the gray finish on most enclosure back plates and existing duct runs. The LG in the part number is the color code, and the matching C4LG6 cover is the same light gray. If your existing panels are white or black duct, this won't match them.
9) How many feet of Panduit F4X4LG6 duct are on a full pallet?
A full pallet of F4X4LG6 is 720 feet, weighing 473.4 pounds and occupying about 64.3 cubic feet. That's twelve cartons. Distributors stocking Panduct narrow slot duct in the 4x4 size usually buy at this level.
