Panduit Panduct® C4LG6-F PVC Flush Duct Cover

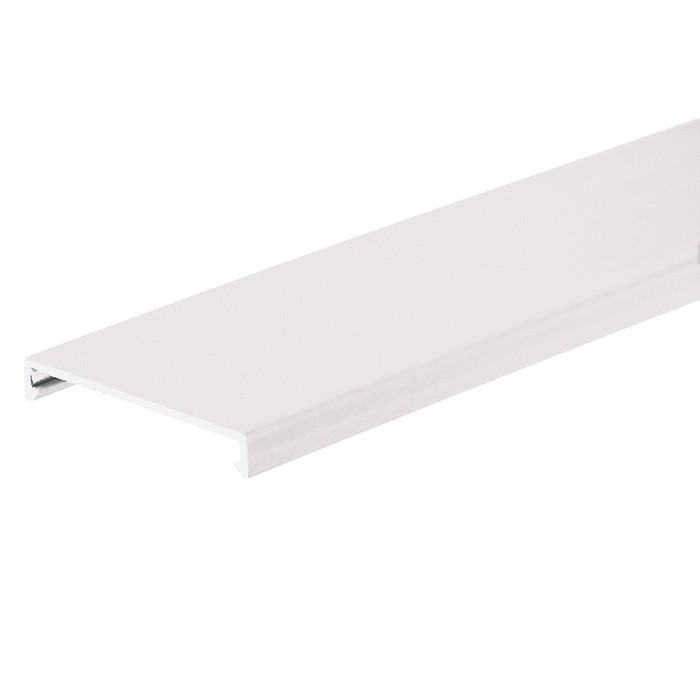

The Panduit Panduct® C4LG6-F is a PVC flush wiring duct cover engineered to snap onto compatible duct bases for clean, code-compliant cable management in panels and control enclosures. Molded from general-purpose, lead-free PVC for indoor use, this cover measures 0.37" x 4.25" (9.4 mm x 108 mm) and ships in a 6' (1.83 m) length. This flush duct cover is available in Gray and White to match panel and enclosure color schemes. It carries a UL 94 flame class of V-0 (after the protective film is removed) and a UL recognized continuous-use temperature rating up to 122°F (50°C), and it is compatible with Type G, Type F, Type D, and Type FS duct bases (base sold separately).
Key Features
- Trade Size: 0.37" x 4.25" (9.4 mm x 108 mm) cover profile in a 6' (1.83 m) length.
- Durable Construction: General-purpose, lead-free PVC material suitable for indoor applications.
- Color Options: Available in Gray and White to complement panel and enclosure finishes.
- Snap-On Mount: Installs directly onto Type G, Type F, Type D, and Type FS duct bases for fast, tool-free assembly.
- Protective Film: Temporary surface film shields the cover from scratches and damage during storage, handling, and installation.
- Non-Slip Liner: Integrated liner helps prevent cover slide once installed, keeping the raceway secure.
- Flammability Rating: UL 94 flame class V-0 after the protective film is removed.
- Temperature Rating: UL recognized for continuous use up to 122°F (50°C).
Certifications & Compliance
- UL Recognized
- CE Compliant
- CSA Certified
- RoHS Compliant
- Flammability Rating of UL94V-0 after protective film is removed
Technical Specifications
- Material: PVC (lead-free)
- Overall Length (ft.): 6
- Std. Pkg. Qty.: 6
- Country of Origin: United States
- RoHS Compliant: Compliant
- Prop 65 Warning: No
- Wiring Duct Style: Flush Cover with Film
- For Use With: Type G, Type F, Type D and Type FS Duct Base
Typical Applications
- Wiring Duct Systems in Control Panels
- Industrial Automation Enclosures
- Panelboard and Load Center Wiring
- Telecommunications and Data Center Cabling
- Indoor Commercial and Industrial Electrical Installations
Why Panduit?
Panduit builds the Panduct® C4LG6-F from lead-free PVC with a UL 94 V-0 flammability rating and UL recognized temperature performance, giving installers a cover they can trust for demanding panel and enclosure environments. Offered in Gray and White, the cover lets electrical contractors match existing duct systems or panel color schemes without compromising on flame or temperature performance. The added protective film and non-slip liner reflect Panduit's focus on practical, installation-friendly details that reduce damage and rework on the job site, while compatibility with Type G, Type F, Type D, and Type FS duct bases keeps the C4LG6-F a flexible choice for standardizing wiring duct coverage across a facility.
"Manufacturer Resources
Product Specs
- Wiring Duct Style:
- Flush Cover with Film
- Std. Pkg. UOM:
- Foot
- Overall Length (m):
- 1.83
- Material Properties:
- Lead-Free
- Std Package Length MM:
- 1828.8
- Mercury Content Indicator:
- N
- Sub Brand:
- Panduct®
- Note:
- Base and Cover Sold Separately.
- Mount Method:
- Snap-On
- Product Segment:
- IEI
- Min Order Qty:
- 120.0000
- For Use With:
- Type G, Type F, Type D and Type FS Duct Base
- UOM EA PK:
- PK
- Any Reason Not to Sell:
- N
- REACH Status:
- N
- Std Carton Length In:
- 72.7
- California Pro65 Cancer:
- No
- Std Package Length In:
- 72
- Country of Origin:
- United States
- Std Ctn Qty:
- 120
- Product Type:
- Flush Duct Cover
- Std Package Height In:
- .1
- Std Package Height MM:
- 2.54
- RoHS Compliant:
- Compliant
- Min. Order UOM:
- Foot
- ARRA Compliant:
- Y
- Std. Pkg. Qty.:
- 6
- Overall Length (ft.):
- 6
- Std Carton Length MM:
- 1846.58
- Hazardous Material Flag:
- N
- Prop 65 Warning:
- No
- Product Material:
- PVC
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Size:
- 0.37" x 4.25"
- Configuration:
- Flush Cover with Film
- Listing:
- UL Recognized
- Standards:
- RoHS Compliant
- Product Subgroup:
- Conduit & Raceway
Panduit C1.5WH6-F – Frequently Asked Questions
1) Does the Panduit C4LG6-F flush duct cover come with a duct base, or do I order that separately?
Cover only. The Panduct C4LG6-F is the snap-on cover, and the base is a separate order. It snaps onto Type G, Type F, Type D and Type FS duct bases, so match your base type before you order the cover.
2) Will the Panduit C4LG6-F cover fit my existing Panduct wiring duct base?
It fits Type G, Type F, Type D and Type FS duct bases. If your panel duct is one of those four Panduct base types, this flush cover snaps straight on. If your base is another Panduct style, this cover is not the one to order.
3) What size is the C4LG6-F cover profile?
The cover profile measures 0.37 x 4.25 inches (9.4 mm x 108 mm), supplied in a 6 foot length. That 4.25 inch dimension is what has to match the width of the duct base you already have in the panel.
4) Is this Panduit duct cover rated for a control panel that runs warm?
UL recognized for continuous use up to 122 F (50 C), with a UL 94 flame class of V-0 once the protective film is peeled off. For enclosures that run hotter than 50 C continuous, this PVC cover is not the right material.
5) How long is each piece of Panduit C4LG6-F duct cover, and how much comes in a carton?
Each stick is 6 feet (1.83 m). Standard package is 6 feet, and the standard carton holds 120 feet, which is also the minimum order quantity in feet. Plan your panel runs in 6 foot multiples so you are not cutting more than you need.
6) What is the minimum I can buy of this Panduit flush duct cover?
120 feet is the minimum order, sold by the foot in 6 foot sticks. That works out to a full carton, so small one-panel jobs will have leftover material. Worth knowing if you are standardizing a shop on one cover profile.
7) Is this wiring duct cover lead-free and RoHS compliant for a spec job?
The Panduct C4LG6-F is molded from general-purpose lead-free PVC, is RoHS compliant, and carries no Prop 65 warning. It is also ARRA compliant and made in the USA, which covers the usual federal and institutional procurement language.
8) What colors does the Panduit flush duct cover come in, and what are the part numbers?
Two colors: light gray as C4LG6-F and white as C1.5WH6-F. Pick the one that matches the duct base already in the panel so the finished enclosure reads consistently.
9) Can I use this Panduit PVC duct cover outdoors or in a wet location?
No. It is a general-purpose PVC cover for indoor use, intended for control panels, industrial automation enclosures, panelboard wiring and indoor data cabling. For outdoor or washdown environments you need a different duct system.
10) Will this cover slide along the duct after it is snapped on?
The cover has an integrated non-slip liner that helps keep it from sliding once snapped onto the base. Useful on long horizontal runs in a panel where a loose cover would creep away from the corner joints.
