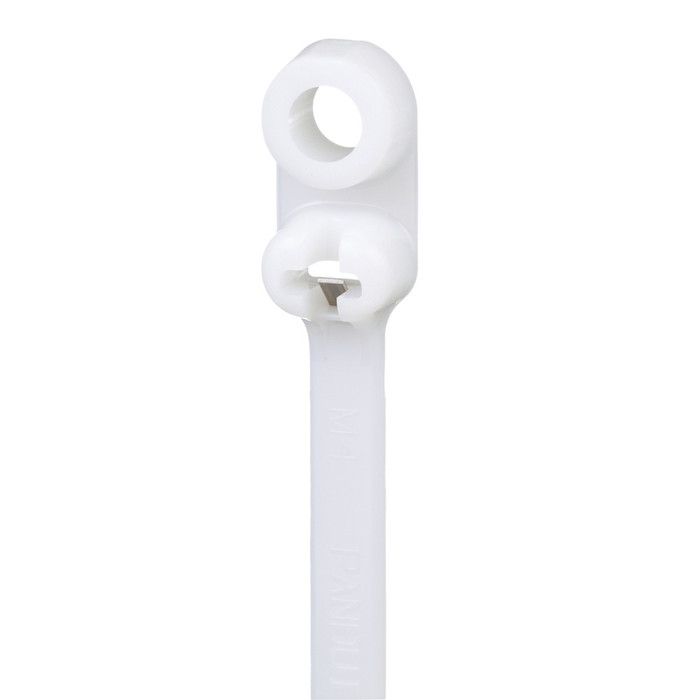

Panduit Dome-Top BC4S-S10-D Weather-Resistant Nylon Cable Tie

Panduit Dome-Top BC4S-S10-D Weather-Resistant Nylon Cable Tie

(No reviews yet) Write a Review

Model: BC4S-S10-D
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$757.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Dome-Top BC4S-S10-D Weather-Resistant Nylon Cable Tie

The Panduit Dome-Top BC4S-S10-D is a barb ty clamp cable tie built for a #10 (M5) mounting screw and an overall length of 15.6" (396mm). Molded from weather-resistant nylon 6.6, it is engineered for demanding bundling applications where UV exposure and outdoor conditions matter, and it is available in Black and Natural to suit visibility and blending requirements across a project. It carries UL Recognition (File #E56854) and is RoHS Compliant, making it a dependable choice for cable and wire management on commercial and industrial jobs.

Key Features

  • Overall Length: 15.6" (396mm) provides ample reach for securing bundled cables and wiring runs.
  • Durable Construction: Weather-resistant nylon 6.6 construction resists UV exposure and outdoor weathering for long service life.
  • Color Options: Available in Black and Natural to match application, identification, or visibility needs.
  • Screw Mount Design: #10 (M5) screw size barb ty clamp tie allows secure attachment to panels, chassis, or mounting surfaces.
  • Loop Tensile Strength: Minimum loop tensile strength of 222N (50 lb) delivers reliable bundle retention under load.
  • Bundle Diameter Range: Accommodates bundle diameters from 0.06" (1.5mm) up to 4" (101.6mm).
  • Temperature Rating: Rated to -76°F (-60°C) minimum operating temperature and -4°F (-20°C) minimum installation temperature.
  • Standard Cross Section: Standard cross-section profile suited to general-purpose bundling.

Certifications & Compliance

  • UL Recognized (File #E56854)
  • RoHS Compliant

Technical Specifications

  • Screw Size: #10
  • Overall Length: 396mm (15.6")
  • Body Width: 4.7mm (0.185")
  • Body Thickness: 1.3mm (0.052")
  • Minimum Loop Tensile Strength: 222N (50 lb)
  • Minimum Bundle Diameter: 1.5mm
  • Maximum Bundle Diameter: 4"
  • Minimum Operating Temperature: -76°F (-60°C)
  • Minimum Installation Temperature: -4°F (-20°C)
  • Resistance Properties: UV-Resistant, Weather-Resistant
  • Pack Size: 1000
  • Country of Origin: Costa Rica

Typical Applications

  • Cable and Wire Bundling in Electrical Enclosures
  • Outdoor and Weather-Exposed Installations
  • Panel and Surface-Mounted Cable Management
  • Industrial and Commercial Wiring Projects
  • General-Purpose Bundling Applications

Why Panduit?

Panduit backs the Dome-Top BC4S-S10-D with weather-resistant nylon 6.6 construction, UL Recognition (File #E56854), and RoHS compliance, giving electrical professionals a cable tie built for consistent, code-compliant performance indoors and out, whether specified in Black or Natural.

Manufacturer Resources

Product Specs

Std. Pkg. UOM:
Piece
Body Width (In.):
0.185
Lead Content Indicator:
N
Mercury Content Indicator:
N
Sub Brand:
Dome-Top®
Minimum Installation Temperature (°F):
-4
Product Segment:
IEI
Resistance Properties:
UV-Resistant, Weather-Resistant
Minimum Loop Tensile Strength (N):
222
Minimum Operating Temperature (°F):
-76
Maximum Bundle Diameter (mm):
101.6
Minimum Loop Tensile Strength (lb):
50
Minimum Bundle Diameter (In.):
0.06
UOM EA PK:
PK
Minimum Bundle Diameter (mm):
1.5
Any Reason Not to Sell:
N
Body Thickness (mm):
1.3
REACH Status:
N
Screw Size:
#10
California Pro65 Cancer:
No
Application:
General
Overall Length (mm):
396
Country of Origin:
Costa Rica
Maximum Bundle Diameter (In.):
4
Body Thickness (In.):
0.052
Product Type:
Cable Tie
Minimum Operating Temperature (°C):
-60
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Overall Length (In.):
15.6
Hazardous Material Flag:
N
Restricted Use of Hazardous Substances:
N
Body Width (mm):
4.7
Minimum Installation Temperature (°C):
-20
Prop 65 Warning:
No
Product Material:
Nylon 6.6
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
1000
Connection Type:
Screw Mount
Listing:
UL Recognized
Standards:
RoHS Compliant

Panduit BC4S-S10-D – Frequently Asked Questions

1) What screw does the Panduit Dome-Top BC4S-S10 mount with, and is the screw included?
The mounting eye takes a #10 (M5) screw, and the fastener is not part of the tie, so order screws separately for your panel or chassis. The head is a Dome-Top design, meaning the screw sits under the tie head rather than through the bundle path, so you can mount the tie first and bundle after.
2) Can I use the Panduit BC4S-S10 cable tie outdoors in direct sun?
Yes. It is molded from weather-resistant nylon 6.6 with UV-resistant and weather-resistant properties, which is what separates it from a standard indoor nylon tie. For sustained UV exposure, choose the black BC4S-S10-C0; carbon black is the pigment that carries UV stability in nylon ties, while the natural BC4S-S10-D is the general indoor/enclosure choice.
3) Can these Panduit ties be installed in freezing weather?
Down to -4 F (-20 C) for installation. Once installed, the tie operates to -76 F (-60 C). The gap matters on a cold job: nylon gets brittle, so a tie that will happily live at -60 C can crack if you cinch it below -20 C. Warm the ties before pulling them in a cold building.
4) Is the Panduit BC4S-S10 UL listed and RoHS compliant for a federal project?
It is UL Recognized under file E56854 and RoHS Compliant. It is also flagged ARRA compliant, with country of origin Costa Rica, which is what a government or institutional buyer needs for Buy American documentation on the submittal.
5) What is the difference between BC4S-S10-C0 and BC4S-S10-D?
Color only. BC4S-S10-C0 is black and BC4S-S10-D is natural. Both are the same 15.6 in standard cross-section clamp tie with a #10 screw mount and 50 lb loop tensile. Pick black where the run sees sunlight, natural for enclosure and indoor work.
6) Should I use a screw-mount clamp tie or a plain cable tie with a separate mounting base?
A one-piece clamp tie like the BC4S-S10 puts the #10 screw eye and the strap in a single part, so there is no adhesive base to fail and one item to stock instead of two. Use it wherever you can drill or tap the panel. A plain tie with an adhesive or push-mount base is the alternative when you cannot put a hole in the surface, but it will not carry the same retention on a hot or oily surface. For bundles over 4 in you need a longer tie than this one regardless of mount type.
7) Do I have to buy a full box of these Panduit clamp ties?
Standard packaging is 1000 pieces, with the order unit of measure set to piece. It is a bulk-carton item, which is how contractors and MRO stockrooms buy it for a full building or a repeat panel build.
8) Does this Panduit tie carry a Prop 65 warning or contain lead?
No Prop 65 warning applies, the California Prop 65 cancer indicator is No, and both lead and mercury content indicators are N. It is not flagged as hazardous material, which keeps it simple for shipping and for facility material submittals in healthcare and education.
