Panduit PLC3S-S10-C0 Locking Clamp Cable Tie, Weather-Resistant Nylon 6.6

Panduit PLC3S-S10-C0 Locking Clamp Cable Tie, Weather-Resistant Nylon 6.6

(No reviews yet) Write a Review

Model: PLC3S-S10-C0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$100.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit PLC3S-S10-C0 Locking Clamp Cable Tie, Weather-Resistant Nylon 6.6

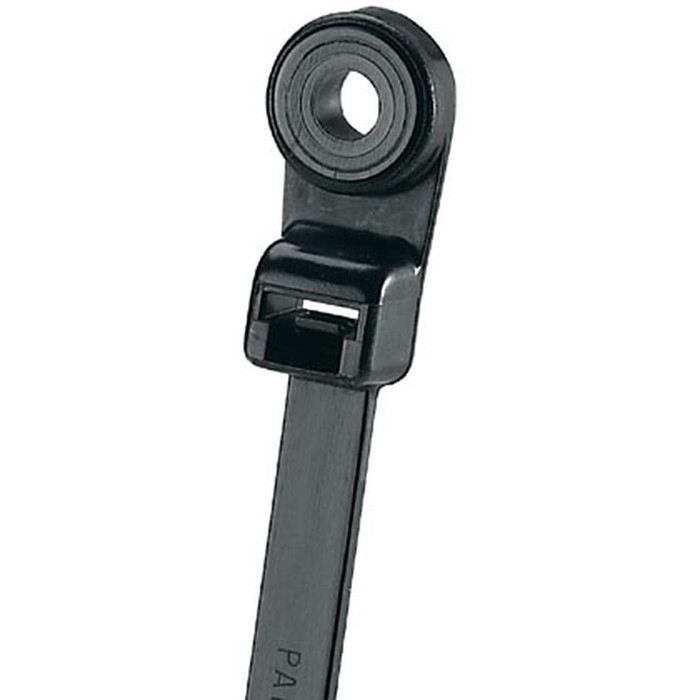

Panduit’s PLC3S-S10-C0 Pan-Ty® locking clamp tie features a standard cross section engineered for a #10 (M5) screw mount, with a 12.0" (305mm) overall length for securing cable bundles up to 3" (76mm) in diameter. Molded from weather-resistant nylon 6.6 and finished in black, this locking clamp tie is UL Recognized and UL 62275 Compliant, delivering a minimum loop tensile strength of 50 lb (222N) for demanding electrical and industrial wiring installations.

Key Features

  • Overall Length: 12.0" (305mm) length accommodates cable bundles up to a 3" (76mm) maximum diameter.
  • Durable Construction: Weather-resistant nylon 6.6 body resists UV exposure for long-term indoor or outdoor performance.
  • Screw Mount Design: Standard cross section sized for a #10 (M5) screw for secure clamp-style panel or surface mounting.
  • Tensile Strength: Minimum loop tensile strength of 50 lb (222N) for dependable bundle retention.
  • Wide Operating Range: Rated from -76°F to 185°F, suitable for a broad range of environmental conditions.
  • Finish: Black color for standard cable and wire management applications.

Certifications & Compliance

  • CE Compliant
  • CSA Certified
  • UL 62275 Compliant (Type 1, 11)
  • UL Recognized

Technical Specifications

  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Mounting Hole Width (mm): 9.5
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50
  • Maximum Bundle Diameter (mm): 76
  • Maximum Bundle Diameter (In.): 3
  • Minimum Bundle Diameter (mm): 1.5
  • Body Thickness (mm): 1.3
  • Body Thickness (In.): 0.052
  • Screw Size: #10
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • REACH Status: N
  • California Pro65 Cancer: No
  • UOM EA PK: PK
  • Std Package Width In: 5.7
  • Std Package Width MM: 144.78
  • Std Package Height In: 1.7
  • Std Carton Width In: 9
  • Std Carton Height MM: 153.67
  • Pallet Quantity: 96,000
  • GTIN Carton: 50074983555814

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Wire and Cable Bundle Management
  • Panel and Enclosure Wiring
  • Outdoor and Weather-Exposed Cable Runs
  • General-Purpose Electrical Assembly

Why Panduit?

Panduit’s Pan-Ty® locking clamp ties are molded from weather-resistant nylon 6.6 and backed by UL Recognition and UL 62275 compliance, giving electrical professionals a dependable, code-compliant option for securing cable bundles in demanding environments. The screw-mount clamp design and rated tensile strength make it a reliable choice for organized, long-lasting wiring installations.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0424
Maximum Operating Temperature (°F):
185
Standard Package Weight Pounds:
0.6250
Std. Pkg. UOM:
Piece
Body Width (In.):
0.19
Mounting Hole Width (mm):
9.5
Standard Carton Volume Ft3:
0.4239
Std Package Length MM:
367.03
Lead Content Indicator:
N
Mercury Content Indicator:
N
Product Segment:
IEI
Resistance Properties:
UV-Resistant
Mounting Hole Width (In.):
0.37
Minimum Loop Tensile Strength (N):
222
Standard Carton Weight Pounds:
6.2500
Minimum Operating Temperature (°F):
-76
Min Order Qty:
1,000.0000
Maximum Bundle Diameter (mm):
76
GTIN Package:
00074983555819
Minimum Loop Tensile Strength (lb):
50
Minimum Bundle Diameter (In.):
0.06
Std Carton Width MM:
228.6
UOM EA PK:
PK
Pallet Volume:
40.698000
Std Package Width In:
5.7
Minimum Bundle Diameter (mm):
1.5
Any Reason Not to Sell:
N
Body Thickness (mm):
1.3
REACH Status:
N
Std Carton Length In:
16.7
Screw Size:
#10
California Pro65 Cancer:
No
Std Carton Height In:
6.05
Application:
General
Std Package Length In:
14.45
Overall Length (mm):
304.8
Country of Origin:
Malaysia
Std Carton Width In:
9
Std Ctn Qty:
1000
Maximum Bundle Diameter (In.):
3
Body Thickness (In.):
0.052
Product Type:
Cable Tie
GTIN Carton:
50074983555814
Std Carton Height MM:
153.67
Std Package Width MM:
144.78
Pallet Quantity:
96,000
Std Package Height In:
1.7
Minimum Operating Temperature (°C):
-60
Product Color:
Black
Department:
Electrical
Product Group:
Wiring Devices
Pack size (unit):
100
Product Subgroup:
Cable Ties & Mounts

Panduit PLC3S-S10-C0 – Frequently Asked Questions

1) What screw size does the Panduit PLC3S-S10-C0 clamp tie mount with, and is the screw included?
The mounting eyelet on this Pan-Ty locking clamp tie is sized for a #10 (M5) screw, with a 0.37 in (9.5mm) mounting hole width. The clamp tie is supplied on its own, so the screw, washer and any anchor for your panel or surface are separate line items you need to add to the order.
2) Can Panduit PLC3S-S10-C0 clamp ties be used outdoors or in direct sun?
Yes. The body is weather-resistant nylon 6.6 in black, with UV resistance called out in the spec, which is what lets it hold up on exposed cable runs rather than going brittle after a season. Natural nylon ties are the ones you keep indoors; this black UV-stabilized version is the outdoor choice.
3) Is the Panduit PLC3S-S10-C0 UL listed for electrical work?
It is UL Recognized and UL 62275 Compliant (Type 1, 11), and also CSA Certified and CE Compliant. Those are the listings inspectors and spec writers usually want to see cited on cable management in commercial and industrial installs.
4) Will these clamp ties survive in an unheated warehouse or a hot equipment enclosure?
The rated operating range runs from -76F (-60C) up to 185F, which covers cold-storage and unheated northern buildings at one end and warm panel interiors at the other. Inside a cabinet that runs hotter than 185F sustained, specify a higher-temperature material instead.
5) How are Panduit PLC3S-S10-C0 clamp ties packaged, and what is the minimum order?
They come in packs of 100 pieces, with a standard carton of 1,000 and a minimum order quantity of 1,000. A standard pack weighs 0.625 lb and a full carton 6.25 lb, so a carton is easy one-hand truck stock for a service van.
6) What is the difference between a locking clamp tie and a regular cable tie with a separate mounting base?
A locking clamp tie is one piece: the mounting eyelet is molded into the tie, so a single #10 screw both anchors and bundles. A standard tie plus an adhesive or screw-down base is two parts and two failure points, and the adhesive versions are the ones that let go in heat. Use the one-piece clamp tie where you have a surface you can drill and want the bundle held tight to it permanently.
7) How wide and thick is the strap on the Panduit PLC3S-S10-C0, for routing through tight spaces?
The strap measures 0.19 in wide and 0.052 in (1.3mm) thick. That standard cross section clears most conduit gaps and strut channels without needing a miniature tie, while still giving you the 50 lb loop rating.
8) Are Panduit PLC3S-S10-C0 clamp ties free of lead and mercury for a healthcare or school project?
Lead and mercury content indicators are both negative on this clamp tie, and it carries no California Proposition 65 cancer warning. That clears the usual institutional procurement screens for restricted substances.
