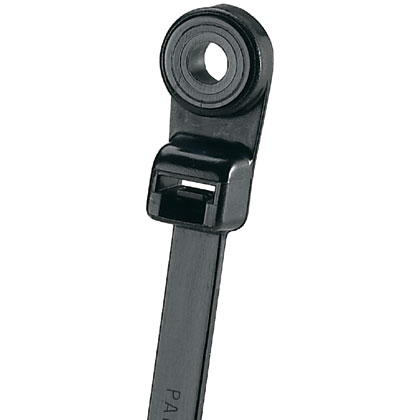

Panduit Locking Clamp Cable Tie, UV-Resistant Nylon 6.6

Panduit Locking Clamp Cable Tie, UV-Resistant Nylon 6.6

(No reviews yet) Write a Review

Model: PLC1M-S4-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Locking Clamp Cable Tie, UV-Resistant Nylon 6.6

The Panduit Locking Clamp Cable Tie secures cable bundles directly to a mounting surface such as a control panel, communication rack, wall, or ceiling. Molded from weather-resistant, UV-stabilized Nylon 6.6 (PA6.6) in black, this locking clamp design allows bundling before or after the clamp is screwed into place through a 0.2" (5.1mm) mounting hole. The family is CE Compliant, CSA Certified, and UL 62275 Compliant (Type 1, 11), and is sized for use with GTS-E, GS2B-E, GTH-E, and GS4H-E mounting systems.

Key Features

  • Locking Clamp Design: Allows cable bundling before or after the clamp is screwed to the mounting surface, simplifying installation sequencing.
  • Durable Construction: Weather-resistant Nylon 6.6 (PA6.6) with high UV resistance for long-term indoor and outdoor reliability.
  • Mounting Hole Diameter: 0.2" (5.1mm) to fit standard panel, rack, and enclosure screw hardware.
  • Wide Operating Range: Rated from -76°F to 185°F (-60°C to 85°C) for demanding thermal environments.
  • Minimum Installation Temperature: -4°F (-20°C) rated for cold-weather field installation.
  • Compatible Mounting Systems: Designed for use with GTS-E, GS2B-E, GTH-E, and GS4H-E surface mounts.
  • Finish: Black color for a clean, low-visibility cable management appearance.

Certifications & Compliance

  • CE Compliant
  • CSA Certified
  • UL 62275 Compliant (Type 1, 11)
  • UL Recognized
  • RoHS Compliant

Technical Specifications

  • Product Type: Locking Clamp Tie
  • Mounting Hole Diameter (In.): 0.2
  • Mounting Hole Diameter (mm): 5.1
  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Minimum Installation Temperature (°F): -4
  • Minimum Installation Temperature (°C): -20
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
  • Country of Origin: MYS

Typical Applications

  • Control Panel and Enclosure Cable Bundling
  • Communication and Data Rack Cable Management
  • Wall and Ceiling-Mounted Cable Runs
  • Industrial and Commercial Electrical Installations
  • Renovation and New Construction Cable Routing

Why Panduit?

Panduit Locking Clamp Cable Ties are built from weather-resistant, UV-stabilized Nylon 6.6 and carry CE Compliant, CSA Certified, and UL 62275 Compliant (Type 1, 11) credentials, giving electrical professionals a dependable, code-aware option for securing cable bundles to panels, racks, walls, and ceilings. RoHS Compliant construction supports environmentally responsible installations, while the locking clamp design speeds up field assembly on commercial and industrial projects.

[{"name": "Product Material", "value": "Nylon 6.6"}, {"name": "Product Type", "value": "Locking Clamp Tie"}, {"name": "Product Color", "value": "Black"}, {"name": "Listing", "value": "UL Recognized"}, {"name": "Country of Origin", "value": "Malaysia"}]

Manufacturer Resources

Product Specs

Maximum Operating Temperature (°F):
185
Mounting Hole Diameter (In.):
0.2
Std. Pkg. UOM:
Piece
Mounting Hole Diameter (mm):
5.1
Lead Content Indicator:
N
Mercury Content Indicator:
N
Minimum Installation Temperature (°F):
-4
Product Color:
Black
Product Segment:
IEI
Minimum Operating Temperature (°F):
-76
For Use With:
GTS-E, GS2B-E, GTH-E, GS4H-E
UOM EA PK:
PK
Any Reason Not to Sell:
N
REACH Status:
N
California Pro65 Cancer:
No
Country of Origin:
MYS
Product Type:
Cable Tie
Minimum Operating Temperature (°C):
-60
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
85
Product Material:
Nylon 6.6
Hazardous Material Flag:
N
Restricted Use of Hazardous Substances:
N
Minimum Installation Temperature (°C):
-20
Prop 65 Warning:
No
Department:
Electrical
Product Group:
Wiring Devices
Pack size (unit):
100
Product Subgroup:
Cable Ties & Mounts

Panduit PLC1M-S4-C – Frequently Asked Questions

1) What size screw hole does the Panduit locking clamp cable tie mount with?
The mounting hole is 0.2 inch (5.1 mm) in diameter, so it takes a #8 or M4-class screw through a panel, rack rail, wall anchor, or ceiling fastener. The clamp mounts through that single hole and the tie portion wraps the bundle, so you only need one fixing point per tie.
2) Can I screw the clamp down first and bundle the cables afterward?
Yes. The locking clamp design lets you bundle before or after the clamp is screwed to the surface, which matters when you are fastening into the back of a control panel or overhead and cannot get a wrapped bundle into position first. Fix the clamps on your layout, pull cable, then dress and cinch.
3) Will these Panduit clamp ties hold up outdoors or in an unheated building?
They are molded from UV-stabilized, weather-resistant Nylon 6.6 in black and are rated for continuous service from -76 F to 185 F (-60 C to 85 C). One limit to watch: the minimum installation temperature is -4 F (-20 C). Below that, install them warm or stage the work, because the nylon should not be cinched at colder temperatures even though it will operate there.
4) Are Panduit locking clamp cable ties UL and CSA compliant for a spec job?
The family is UL Recognized and UL 62275 Compliant (Type 1, 11), CSA Certified, CE Compliant, and RoHS Compliant. That covers the usual submittal boxes for cable management accessories on commercial and industrial electrical work.
5) Which sizes of the Panduit locking clamp tie are available and what are the part numbers?
Three sizes: 1 inch (PLC4H-S25-L0), 3 inch (PLC1M-S4-C), and 9 inch (PLC2S-S10-C0). Pick by the finished bundle diameter you need to capture, not by the number of conductors, since jacket OD drives it.
6) Do these clamp ties work with Panduit adhesive or screw-applied mount bases?
They are sized for use with the GTS-E, GS2B-E, GTH-E, and GS4H-E mounting systems. If you are standardizing a panel build or a rack run on any of those bases, the clamp tie is the matching tie.
7) Should I use a locking clamp tie or a separate cable tie mount and tie?
A locking clamp tie is one piece: the screw-through clamp and the tie are integral, so you fasten through a 0.2 inch hole and you are done. A separate mount plus tie is two SKUs and two steps, but it lets you swap tie sizes on the same base. Go with the clamp tie when the bundle size is known and you want fewer parts on the panel layout; go with a GTS-E or GS4H-E style base and loose ties when bundle sizes vary along the run.
8) How do the Panduit clamp ties come packaged, and can I buy a single piece?
Standard pack size is 100 pieces, and the order and packaging unit of measure is the piece within that pack. For a panel shop or a facilities stockroom, one pack covers a typical build without reordering mid-job.
9) Is there a Prop 65 warning or any hazardous content on these nylon clamp ties?
No Prop 65 warning applies, and the record carries no cancer listing, no lead content, no mercury content, and no hazardous material flag. They are ARRA compliant as well, which matters on federally funded institutional work.
