Panduit EMS-A-D Cable Tie Mount, Natural Nylon 6.6, Epoxy Adhesive

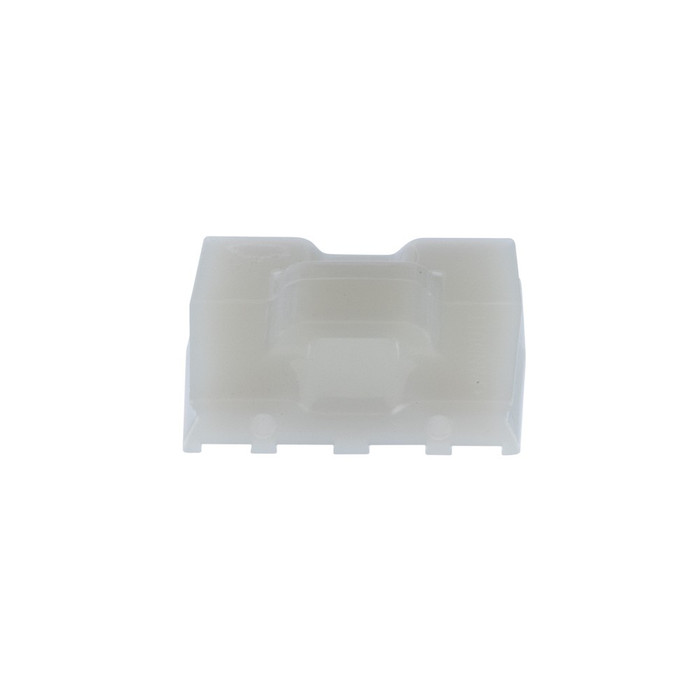

The Panduit EMS-A-D is an epoxy-applied cable tie mount in natural color, affixed to most surfaces with EMA two-part epoxy adhesive. Molded from Nylon 6.6 for added mechanical strength, heat resistance, and wear resistance, it is designed for indoor environments and used with miniature, intermediate, and standard cross-section cable ties. Each mount carries a static load capacity of 4.5 kg and is RoHS Compliant, and it ships in packages of 500 pieces.

Key Features

  • Durable Construction: Molded from Nylon 6.6 for increased mechanical strength, heat resistance, wear resistance, and stiffness.
  • Mounting Method: Applied with EMA two-part epoxy adhesive to secure the mount to most surfaces without drilling.
  • Cable Tie Compatibility: Designed for use with miniature, intermediate, and standard cross-section cable ties.
  • Load Rating: Static load capacity of 4.5 kg for securing wire and cable bundles.
  • Operating Temperature: Rated from -76°F to 185°F (-60°C to 85°C) for a wide range of indoor conditions.
  • Color: Natural finish for a low-profile, unobtrusive appearance.
  • Packaging: Supplied in packages of 500 pieces for bulk wire management projects.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Maximum Operating Temperature (°F): 185
  • REACH Status: N
  • California Pro65 Cancer: No
  • Overall Length (mm): 6.6
  • Mercury Content Indicator: N
  • Product Segment: IEI
  • Static Load Capacity (kg): 4.5
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • ARRA Compliant: Y
  • Maximum Operating Temperature (°C): 85
  • Std. Pkg. Qty.: 500
  • For Use With: Miniature, Intermediate, Standard Cross-section Cable Ties
  • Overall Length (In.): 0.26
  • Std Carton Length MM: 373.38
  • Std Carton Width MM: 373.38
  • UOM EA PK: PK
  • Pallet Volume: 47.744271
  • Product Size: 98"

Typical Applications

  • Wire and Cable Bundle Management
  • Indoor Electrical and Panel Installations
  • Adhesive Mounting on Smooth Surfaces Where Drilling Is Not Desired
  • Commercial and Industrial Wire Routing

Why Panduit?

Panduit builds the EMS-A-D from Nylon 6.6 for added mechanical strength, heat resistance, and wear resistance, and secures it with EMA two-part epoxy adhesive for a reliable, drill-free mounting solution. RoHS compliance supports responsible, code-conscious installations for professional electrical and cable management work.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.1326
Maximum Operating Temperature (°F):
185
Standard Package Weight Pounds:
2.9500
REACH Status:
N
Std. Pkg. UOM:
Piece
Overall Width (mm):
24.9
Std Carton Length In:
14.7
California Pro65 Cancer:
No
Std Carton Height In:
10.95
Std Package Length In:
9.55
Overall Length (mm):
6.6
Country of Origin:
United States
Standard Carton Volume Ft3:
1.3262
Std Package Length MM:
242.57
Mercury Content Indicator:
N
Std Carton Width In:
14.7
Std Ctn Qty:
5000
Mount Method:
Adhesive
Product Segment:
IEI
Static Load Capacity (kg):
4.5
Product Type:
Cable Tie Mount
GTIN Carton:
50074983580168
Std Carton Height MM:
278.13
Std Package Width MM:
222.25
Pallet Quantity:
180,000
Std Package Height In:
3.55
Minimum Operating Temperature (°C):
-60
Standard Carton Weight Pounds:
29.5000
Overall Height (In.):
0.98
Minimum Operating Temperature (°F):
-76
Std Package Height MM:
90.17
Min Order Qty:
1,000.0000
RoHS Compliant:
Compliant
Material Description:
Nylon 6.6
GTIN Package:
00074983580163
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
85
Std. Pkg. Qty.:
500
For Use With:
Miniature, Intermediate, Standard Cross-section Cable Ties
Overall Length (In.):
0.26
Environment:
Indoor
Std Carton Length MM:
373.38
Std Carton Width MM:
373.38
UOM EA PK:
PK
Pallet Volume:
47.744271
Product Material:
Nylon 6.6
Product Color:
Natural
Product Size:
98"
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
1000

Panduit EMS-A-D – Frequently Asked Questions

1) Does the Panduit EMS-A-D cable tie mount come with adhesive, or do I have to order the epoxy separately?
The EMS-A-D is an epoxy-applied mount, and the EMA two-part epoxy adhesive is what bonds it to the surface. The mount itself is the molded Nylon 6.6 base only, so plan on having the EMA two-part epoxy on hand as a separate item to complete the install. There is no pre-applied adhesive pad on this style.
2) What size cable ties fit the EMS-A-D mount?
It takes miniature, intermediate, and standard cross-section cable ties. That covers the bulk of general wire bundling work. Heavy cross-section ties are outside what this mount is specified for, so if you are bundling with heavy-duty ties you want a mount rated for that tie class instead.
3) Can I use these epoxy cable tie mounts outdoors or in an unheated building?
Panduit specifies the EMS-A-D for indoor environments, so exterior use is not what it is built for. Temperature range is wide, -60 to 85 C (-76 to 185 F), so an unheated indoor space or a warm panel interior is within spec. It is the outdoor exposure, not the cold, that puts it out of application.
4) Do Panduit EMS-A-D mounts meet RoHS and Buy American requirements for a government or institutional job?
The EMS-A-D is RoHS Compliant and ARRA Compliant, with country of origin listed as the United States. Mercury content indicator is N, and California Prop 65 cancer is listed as No. That combination is what most federally funded and institutional specs are asking for on a cable management submittal.
5) Why choose an epoxy-mounted tie base instead of a screw-applied or peel-and-stick mount?
Epoxy is the choice when you cannot drill and you do not trust a pressure-sensitive pad. The EMS-A-D bonds to most surfaces with EMA two-part epoxy, so it works on finished sheet metal, enclosure walls, and painted surfaces where a hole would compromise the assembly. The trade-off is cure time and mixing on site. If you need an instant grab and the surface is clean and smooth, an adhesive-backed mount is faster; if the surface can be drilled, a screw-applied mount gives you a mechanical hold with no chemistry involved.
6) What quantity do Panduit EMS-A-D mounts come in, and is there an order minimum?
Standard package is 500 pieces, the standard carton holds 5,000, and the order minimum is 1,000 pieces. So a single-package buy is not an option here, plan on two packages minimum. A full pallet runs 180,000 pieces for anyone standardizing a large facility or stocking a truck fleet.
7) Will Nylon 6.6 cable tie mounts hold up inside a hot control panel?
Up to 85 C (185 F), yes. Nylon 6.6 is used here specifically for its heat resistance along with added mechanical strength, wear resistance, and stiffness, which is why these hold their shape in a warm enclosure rather than creeping under a loaded bundle. Above 185 F you are past the rating and should be looking at a different material class.
