Technical Specifications
- Maximum Operating Temperature (°F): 140
- Minimum Operating Temperature (°F): 32
- Maximum Operating Temperature (°C): 60
- Minimum Operating Temperature (°C): 0
- Maximum Installation Temperature (°F): 140
- Minimum Installation Temperature (°F): 32
- Maximum Installation Temperature (°C): 60
- Overall Length (In.): 1.83
- Std Package Length In: 3.5
- Std Package Width In: 5
- Std Package Height In: 1
- Std Package Width MM: 127
- Std Carton Length In: 4.1
- Std Carton Width In: 3.2
- Std Carton Height In: 2.3
- Std Carton Length MM: 104.14
- Std Carton Width MM: 81.28
- Std Ctn Qty: 10
- Std. Pkg. Qty.: 1
- UOM EA PK: EA
- Pallet Volume: 479.064444
- REACH Status: N
- Mercury Content Indicator: N
- Hazardous Material Flag: N
- ARRA Compliant: Y
Typical Applications
- Fiber Optic Patch Panels and Faceplates
- Surface Mount Box Installations
- Structured Cabling Systems
- Data Center and Telecommunications Rooms
- Commercial Network Infrastructure Installations
Why Panduit?

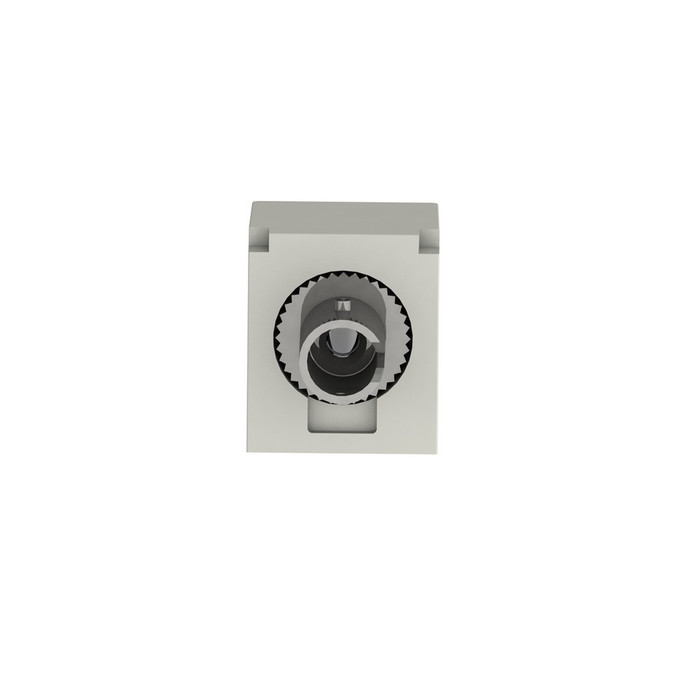

Panduit's Mini-Com® Multimode ST Adapter combines zirconia ceramic split sleeves, FOCIS-10 compatibility, and RoHS-compliant construction to deliver dependable, code-compliant performance for professional fiber optic installations. Its integrated panel retention clips and International White finish ensure a secure fit and consistent appearance across Mini-Com® system components.
Manufacturer Resources
Product Specs
- Module Color:
- International White
- Standard Package Volume Ft3:
- 0.0175
- Maximum Operating Temperature (°F):
- 140
- Standard Package Weight Pounds:
- 0.0400
- REACH Status:
- N
- Std. Pkg. UOM:
- Piece
- Std Carton Length In:
- 4.1
- Maximum Installation Temperature (°F):
- 140
- Std Carton Height In:
- 2.3
- Std Package Length In:
- 3.5
- Overall Length (mm):
- 46.5
- Country of Origin:
- Costa Rica
- Standard Carton Volume Ft3:
- 0.1755
- Std Package Length MM:
- 88.9
- Mercury Content Indicator:
- N
- Std Carton Width In:
- 3.2
- Minimum Installation Temperature (°F):
- 32
- Sub Brand:
- Mini-Com®
- Std Ctn Qty:
- 10
- Product Segment:
- EDI-DC
- Product Type:
- ST Adapter Module
- GTIN Carton:
- 50074983396172
- Std Carton Height MM:
- 58.42
- Split Sleeve Material:
- Zirconia Ceramic
- Std Package Width MM:
- 127
- Pallet Quantity:
- 27,300
- Std Package Height In:
- 1
- Connection Type:
- ST Simplex
- Minimum Operating Temperature (°C):
- 0
- Standard Carton Weight Pounds:
- 0.4000
- Minimum Operating Temperature (°F):
- 32
- Std Package Height MM:
- 25.4
- Min Order Qty:
- 20.0000
- RoHS Compliant:
- Compliant
- GTIN Package:
- 00074983396177
- Min. Order UOM:
- Piece
- ARRA Compliant:
- Y
- Body Style:
- Simplex
- Maximum Operating Temperature (°C):
- 60
- Std. Pkg. Qty.:
- 1
- Maximum Installation Temperature (°C):
- 60
- Overall Length (In.):
- 1.83
- Std Carton Length MM:
- 104.14
- Std Carton Width MM:
- 81.28
- UOM EA PK:
- EA
- Pallet Volume:
- 479.064444
- Std Package Width In:
- 5
- Hazardous Material Flag:
- N
- Department:
- Electrical
- Product Group:
- Conduit & Raceway
- Product Subgroup:
- Conduit Fittings
Panduit CMSTZIW – Frequently Asked Questions
1) Will the Panduit CMSTZIW ST adapter snap into a standard Mini-Com faceplate or patch panel?
Yes. The CMSTZIW is a Mini-Com module with integrated panel retention clips, so it snaps into Mini-Com faceplates, patch panels, and surface mount boxes the same way a copper Mini-Com jack does. Because it is a Mini-Com sub-brand module, it takes one module opening.
2) Is this ST adapter simplex or duplex, and how many fibers does it terminate?
Simplex. The CMSTZIW body style is simplex with an ST simplex connection, so it accepts one ST connector on each side, terminating a single fiber. For a two-fiber circuit you need two modules, one for transmit and one for receive.
3) Can I use a Panduit multimode ST adapter on singlemode fiber?
It is built as a multimode ST adapter, with zirconia ceramic split sleeves. Zirconia ceramic is the sleeve material used for precision alignment, but the adapter is specified multimode, so for singlemode links order the singlemode version of the Mini-Com ST adapter rather than this one.
4) How many of these ST adapters do I have to buy at a time?
Minimum order is 20 pieces. Each piece is packaged individually and the standard carton holds 10, so a 20 piece order comes as two cartons.
5) Is the CMSTZIW ST adapter interface standard enough to mate with other manufacturers' ST patch cords?
It is FOCIS-10 compatible, the TIA standard for the ST connector interface, so standard ST multimode patch cords mate with it regardless of who made the cord.
6) What color is the CMSTZIW adapter, and will it match my other Mini-Com jacks?
International White. That is Panduit's standard Mini-Com color code, so the adapter blends with International White faceplates and jacks already installed in the same opening.
7) What temperature range can this fiber adapter be installed and operated in?
Operating and installation range are both 32 to 140 degrees F (0 to 60 degrees C). That covers conditioned telecom rooms and data centers, but it rules out unheated outdoor enclosures or spaces that drop below freezing.
8) Is the Panduit Mini-Com ST adapter RoHS compliant and acceptable on federally funded work?
The CMSTZIW is RoHS compliant and flagged ARRA compliant, with no mercury content and no hazardous material flag. Country of origin is Costa Rica, which is what a government or institutional buyer usually needs on the submittal.
9) How deep does this ST adapter sit behind the faceplate?
Overall length is 1.83 inches (46.5 mm). Worth checking against shallow surface mount boxes and tight wall cavities, since the ST connector and its fiber bend radius sit behind that.
