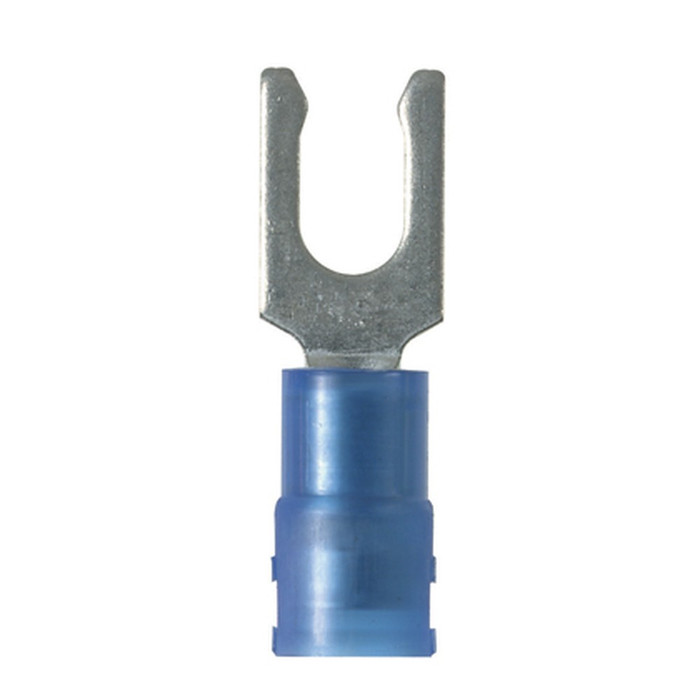

The Panduit Pan-Term® PN1 Series Locking Fork Terminal is a nylon-insulated wire termination fitting engineered for secure, code-compliant stud connections in panels and control enclosures. Built for 18 – 14 AWG wire with a #6 stud size, this locking fork design resists vibration-induced loosening while a tin-plated copper barrel delivers reliable, low-resistance conductivity. Rated to 600V maximum and UL Listed / CSA Certified, it is suited for demanding commercial and industrial wiring applications.

Key Features

• Wire Range: Accepts 18 – 14 AWG conductors with a #6 stud size for precise, secure terminations.
• Durable Construction: Copper base material with a tin-plated finish for consistent conductivity and corrosion resistance.
• Nylon Insulation: Fully nylon-insulated barrel and tongue for added dielectric protection and strain relief.
• Locking Fork Design: Grip-sleeve barrel type with a locking fork tongue that resists backing off under vibration.
• Voltage Rating: Maximum voltage rating of 600V (0.6kV) for demanding electrical circuits.
• Tongue Geometry: Tongue thickness of 0.8mm (0.03 in.) sized for standard stud and terminal block hardware.
• Wire Strip Length: Designed for a 5.6mm (7/32 in.) strip length for consistent, repeatable crimps.
• Temperature Rated: Rated for continuous operation up to 105°C (221°F).

Certifications & Compliance

• UL Listed 587H E52164
• CSA Certified LR31212
• RoHS Compliant

Technical Specifications

• Maximum Voltage (V): 600
• Tongue Thickness (mm): 0.8
• Wire Strip Length (mm): 5.6
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Std Ctn Qty: 500
• Std. Pkg. Qty.: 100
• Country of Origin: MEX

Typical Applications

• Control Panel and Terminal Block Wiring
• Industrial Machinery Electrical Connections
• Commercial Electrical Panel Terminations
• Stud-Mounted Wire Connections Requiring Vibration Resistance
• Compatible With Panduit CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), and UP14ZLW (CD-550) Crimp Tools

Why Panduit?

Panduit's Pan-Term® terminals combine tin-plated copper conductors with nylon insulation and a locking fork tongue to deliver terminations that hold up under vibration and thermal cycling. Backed by UL Listing, CSA Certification, and RoHS compliance, this PN1 Series fork terminal gives electrical professionals a dependable, code-compliant connection point for panel and control wiring work.
