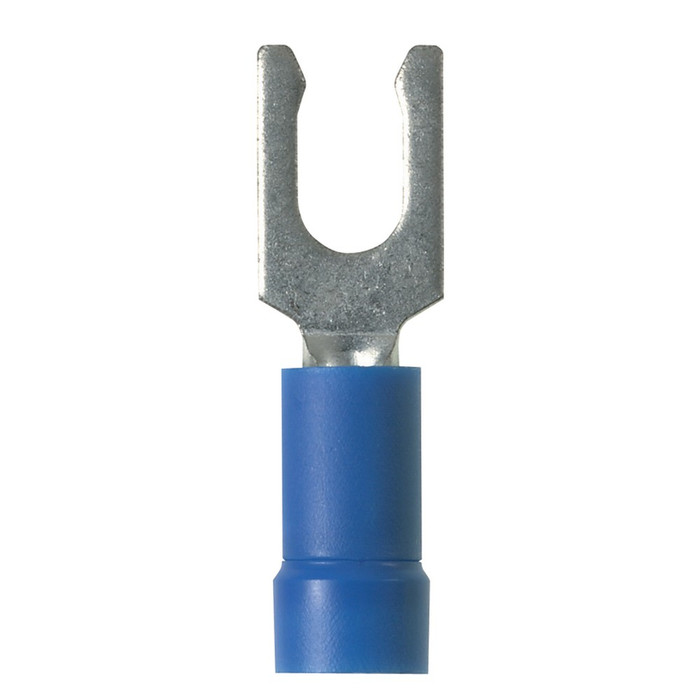

Panduit Pan-Term® PV141 Series Locking Fork Terminal, Vinyl Insulated

Panduit Pan-Term® PV141 Series Locking Fork Terminal, Vinyl Insulated

(No reviews yet) Write a Review

Model: PV14-10LF-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Term® PV141 Series Locking Fork Terminal, Vinyl Insulated

The Panduit Pan-Term® PV141 Series Locking Fork Terminal is a vinyl-insulated, funnel-entry locking fork terminal built for 18-14 AWG conductors and a #10 stud size. Rated for a maximum voltage of 600V, this terminal features a copper base with a tin-plated finish for reliable, corrosion-resistant connections. It is UL Listed (587H E52164) and CSA Certified (LR31212), making it a code-compliant choice for professional electrical and industrial wiring work.

Key Features

  • Wire Range: Accepts 18-14 AWG conductors with a funnel-entry barrel for fast, accurate wire insertion.
  • Locking Fork Design: Vinyl-insulated, blue color-coded fork tongue sized for a #10 stud for a secure, vibration-resistant termination.
  • Durable Construction: Copper base material with a tin-plated finish resists corrosion and maintains conductivity.
  • Voltage Rating: 600V maximum voltage rating suitable for demanding electrical applications.
  • Barrel Type: Funnel entry simplifies wire insertion and improves crimp consistency.
  • Brazed Seam: Brazed barrel seam construction for terminal integrity under load.
  • Flammability Rating: Vinyl insulation rated UL94V-0.

Certifications & Compliance

  • UL Listed 587H E52164
  • CSA Certified LR31212
  • RoHS Compliant

Technical Specifications

  • Maximum Voltage (V): 600
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • Tongue Thickness (mm): 0.8
  • UOM EA PK: PK
  • California Pro65 Cancer: No
  • Maximum Voltage (kV): 0.6
  • Country of Origin: MEX
  • Pallet Quantity: 0
  • Std Package Height In: 1.9
  • Std. Pkg. Qty.: 100
  • Hazardous Material Flag: N
  • Wire Strip Length (mm): 7.9
  • Restricted Use of Hazardous Substances: N
  • Maximum Operating Temperature (°F): 221
  • Product Segment: IEI
  • Maximum Metric Conductor Size (mm²): 2.5
  • Any Reason Not to Sell: N
  • REACH Status: N
  • RoHS Compliant: Compliant
  • ARRA Compliant: Y
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Packaging Type: Bottle
  • Maximum Wire Insulation Diameter (In.): 0.17

Typical Applications

  • Industrial Control Panels and Equipment
  • Panelboard and Terminal Block Wiring
  • Commercial and Industrial Electrical Installations
  • OEM Equipment Wiring and Assembly
  • Renovation and New Construction Wiring Connections

Why Panduit?

Panduit's Pan-Term® locking fork terminals combine copper conductivity, tin-plated corrosion resistance, and UL Listed, CSA Certified construction to deliver dependable, code-compliant terminations for professional electrical work. The funnel-entry barrel and brazed seam construction help ensure consistent crimps and long-term connection reliability in demanding industrial and commercial environments.

Manufacturer Resources

Product Specs

Maximum Voltage (V):
600
Color Code:
Blue
Lead Content Indicator:
N
Mercury Content Indicator:
N
Wire Strip Length (In.):
5/16
Tongue Thickness (mm):
0.8
UOM EA PK:
PK
Pallet Volume:
0.000000
Std Package Width In:
1.95
California Pro65 Cancer:
No
Std Package Length In:
4.35
Maximum Voltage (kV):
0.6
Finish/Coating:
Tin-Plated
Country of Origin:
MEX
Product Type:
Ring Terminal
Std Package Width MM:
49.53
Pallet Quantity:
0
Std Package Height In:
1.9
Flammability Rating:
UL94V-0
Std Package Height MM:
48.26
Std. Pkg. Qty.:
100
Insulation Type:
Vinyl
Hazardous Material Flag:
N
Wire Strip Length (mm):
7.9
Restricted Use of Hazardous Substances:
N
Maximum Operating Temperature (°F):
221
Std. Pkg. UOM:
Piece
Tongue Thickness (In.):
0.03
Std Package Length MM:
110.49
Sub Brand:
Pan-Term®
Product Segment:
IEI
Maximum Metric Conductor Size (mm²):
2.5
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
REACH Status:
N
Base Material:
Copper
Std Carton Height In:
4.35
Seam Type:
Brazed
Std Carton Height MM:
110.49
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
105
Maximum Wire Insulation Diameter (mm):
4.3
Packaging Type:
Bottle
Insulation Material:
Vinyl
Pallet Weight:
0.0000
Maximum Wire Insulation Diameter (In.):
0.17
Department:
Electrical
Product Group:
Wiring Devices
