Panduit PV18 Series Vinyl-Insulated Copper Ring Terminal, Funnel-Entry

Panduit PV18 Series Vinyl-Insulated Copper Ring Terminal, Funnel-Entry

(No reviews yet) Write a Review

Model: PV18-10R-CY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$72.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit PV18 Series Vinyl-Insulated Copper Ring Terminal, Funnel-Entry

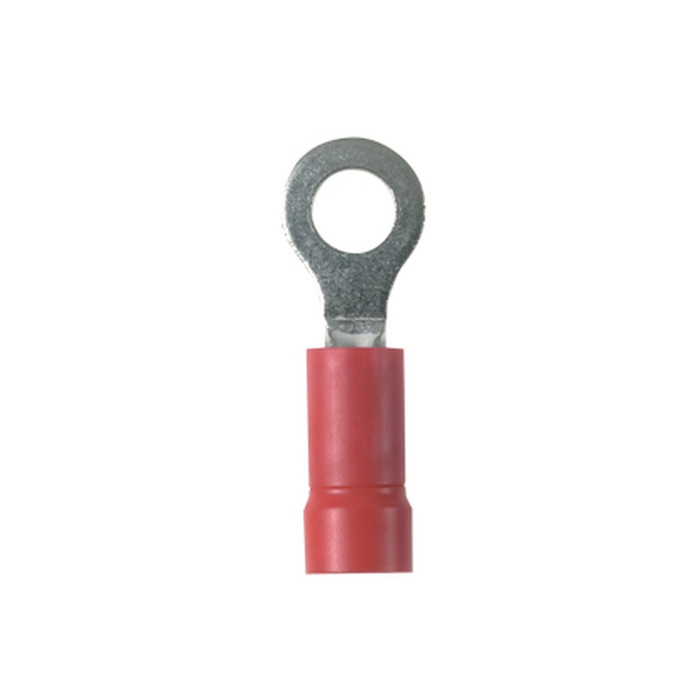

The Panduit PV18 Series Ring Terminal is a vinyl-insulated, funnel-entry Pan-Term® terminal built with a copper base and a brazed barrel seam for reliable, high-tensile crimp connections across the 22-18 AWG wire range. This listing is available with either a #10 Stud or #8 Stud tongue to match your terminal block or ground connection, while sharing the same electrical and mechanical performance across both stud options. Rated up to 600V (0.6kV) with a maximum operating temperature of 221°F (105°C), this terminal is engineered for demanding industrial and commercial wiring where a secure, code-compliant connection is critical. Internal barrel serrations ensure solid wire contact, and the red vinyl housing supports color-coded wire-range identification throughout the PV18 Series lineup.

Key Features

  • Stud Options: Available in #10 Stud or #8 Stud configurations to fit common terminal block and grounding hardware.
  • Funnel Entry Barrel: A wide funnel-entry design simplifies wire insertion while internal serrations maximize wire contact and tensile strength.
  • Brazed Seam Construction: The brazed barrel seam resists splitting during the crimp process for a secure, long-lasting connection.
  • Durable Construction: Copper base material with a tin-plated finish for corrosion resistance and dependable conductivity.
  • Vinyl Insulation: Red, vinyl-insulated housing protects the crimped connection and supports color-coded identification across the PV18 Series.
  • Voltage Rating: Rated up to 600V (0.6kV) for a broad range of electrical applications.
  • Operating Temperature: Maximum operating temperature of 221°F (105°C) for demanding environments.
  • Wire Range: Accommodates 22-18 AWG copper conductors, with a tongue width of 0.31" (7.9mm) and tongue thickness of 0.03" (0.8mm).

Certifications & Compliance

  • cULus Listed 587H E52164
  • CSA Certified LR31212
  • RoHS Compliant
  • UL94V-0 Flammability Rating

Technical Specifications

  • Maximum Operating Temperature (°F): 221
  • Maximum Voltage (V): 600
  • Color Code: Red
  • Tongue Thickness (mm): 0.8
  • Tongue Width (mm): 7.9
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Metric Conductor Size (mm²): 1.5
  • Overall Width (mm): 7.9
  • Maximum Wire Insulation Diameter (mm): 3.8
  • Product Size: 22-18 AWG
  • Wire Strip Length (In.): 5/16
  • Country of Origin: Mexico
  • Std Ctn Qty: 500
  • Std. Pkg. Qty.: 100

Typical Applications

  • Industrial Control Panel Wiring
  • Terminal Block and Ground Connections
  • Panelboard and Enclosure Wiring
  • OEM Electrical Assemblies
  • Commercial and Industrial Wire Termination

Why Panduit?

Panduit's Pan-Term® terminals combine brazed-seam barrels, internal serrations, and corrosion-resistant tin-plated copper construction for connections that hold up under demanding industrial conditions. With cULus and CSA certifications plus RoHS compliance and a UL94V-0 flammability rating, the PV18 Series delivers dependable, code-compliant wire termination—in either #10 Stud or #8 Stud configurations—for professional electrical work.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0074
Maximum Operating Temperature (°F):
221
Std. Pkg. UOM:
Piece
Maximum Voltage (V):
600
Tongue Thickness (In.):
0.03
Standard Carton Volume Ft3:
0.0368
Color Code:
Red
Lead Content Indicator:
N
Mercury Content Indicator:
N
Sub Brand:
Pan-Term®
Wire Strip Length (In.):
5/16
Tongue Thickness (mm):
0.8
Product Segment:
IEI
Minimum Metric Conductor Size (mm²):
0.5
Min Order Qty:
500.0000
Product Size:
22-18 AWG
Maximum Metric Conductor Size (mm²):
1.5
UOM EA PK:
PK
Pallet Volume:
0.000000
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
Tongue Width (In.):
0.31
Copper Conductor Size:
22-18 AWG
Overall Width (In.):
0.31
REACH Status:
N
Base Material:
Copper
Overall Width (mm):
7.9
California Pro65 Cancer:
No
Maximum Voltage (kV):
0.6
Finish/Coating:
Tin-Plated
Country of Origin:
Mexico
Std Ctn Qty:
500
Seam Type:
Brazed
Product Type:
Ring Terminal
Pallet Quantity:
0
Flammability Rating:
UL94V-0
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
105
Std. Pkg. Qty.:
100
Maximum Wire Insulation Diameter (mm):
3.8
Packaging Type:
Bottle
Hazardous Material Flag:
N
Insulation Material:
Vinyl
Restricted Use of Hazardous Substances:
N
Pallet Weight:
0.0000
Tongue Width (mm):
7.9
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100
Product Material:
Copper
Finish:
Tin-Plated
Voltage Rating:
600V
Configuration:
Vinyl-Insulated Funnel-Entry Ring Terminal
Listing:
cULus

Panduit PV18-10R-CY – Frequently Asked Questions

1) Is the Panduit PV18 ring terminal rated for 600V control panel wiring?
Yes, rated to 600V (0.6 kV) with a maximum operating temperature of 105 C (221 F). It is cULus Listed 587H E52164 and CSA Certified LR31212, and the vinyl carries a UL94V-0 flammability rating, which is what inspectors look for on industrial control panel and enclosure wiring.
2) How much insulation do I strip before crimping a PV18 ring terminal?
Strip 5/16 inch of insulation. The funnel-entry barrel makes it easy to feed stranded wire in without birdcaging, and internal serrations bite the strands when you crimp. The barrel seam is brazed rather than butted, so it resists splitting open under the crimp die.
3) Will a PV18 terminal fit over heavy-wall THHN or appliance wire insulation?
The insulation grip on the PV18 accepts wire insulation up to 3.8 mm outside diameter. Most 18 and 16 AWG panel wire falls inside that, but thick-jacketed or double-insulated leads can be too fat for the vinyl sleeve to seat over. Measure the jacket OD if you are working with anything heavier than standard machine tool wire.
4) Can I use this vinyl ring terminal in a damp or corrosive environment?
The base metal is copper with a tin plating, which is the standard corrosion-resistant finish for copper terminations and helps in humid or mildly corrosive panel environments. The vinyl sleeve is not a sealed heat-shrink barrier though, so for direct moisture exposure or outdoor wet locations you want a heat-shrink insulated or nylon terminal instead.
5) How are Panduit PV18 ring terminals packaged and what is the minimum order?
They ship in bottles of 100 pieces, with 500 pieces to a standard carton. Minimum order is 500 pieces. Practical for a panel shop or MRO crib standardizing on one wire range rather than a handful of loose terminals.
6) Should I use a ring terminal or a spade terminal on my terminal block?
Use the ring, like the PV18, anywhere the connection sees vibration or where a loosened screw must not let the wire escape, which is why ring terminals are standard on ground studs, busbars and motor connections. A fork or spade slides out from under a loosened screw, so its only advantage is that you can land it without fully backing the screw out. For ground and bonding connections in an enclosure, ring is the right call.
7) Are Panduit PV18 terminals RoHS compliant and ARRA compliant for government jobs?
RoHS compliant, ARRA compliant, and flagged as containing no lead and no mercury. Country of origin is Mexico. That combination is what institutional and government procurement typically needs on the submittal for a control panel build.
How fast can I get the Panduit PV18-10R-CY delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
