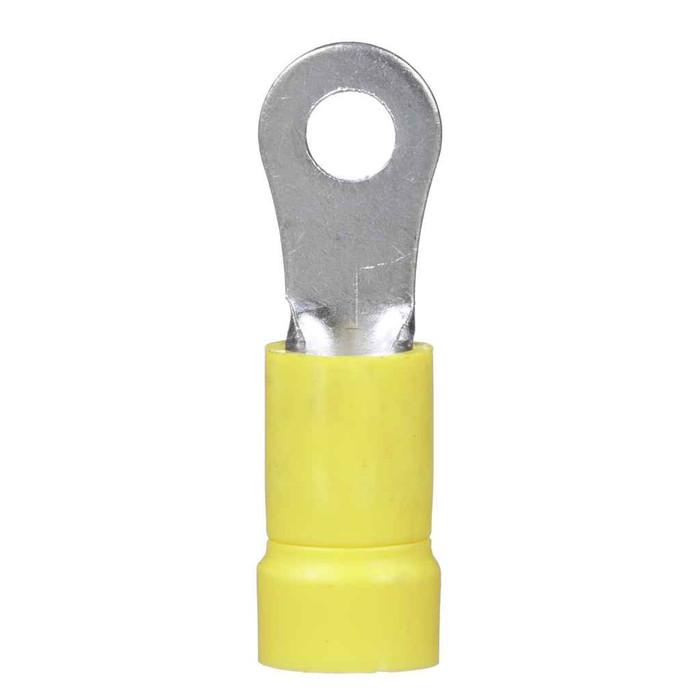

Pan-Term PV10-6R-L Ring Terminal, Vinyl Insulated-Funnel Entry
Standards and Certifications
- Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Prop 65
- No
Manufacturer Resources
Product Specs
- Arra Compliant:
- Y
- Barrel Length In :
- 0.53
- Barrel Length Mm :
- 13.3
- Barrel Type:
- Funnel Entry
- Base Material:
- Copper
- California Pro65 Cancer:
- No
- Color Code:
- Yellow
- Country Of Origin:
- Mexico
- Ean:
- 74983801282
- Finish Coating:
- Tin-Plated
- Flammability Rating:
- UL94V-0
- For Use With:
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Gtin Carton:
- 5.0075E+13
- Gtin Package:
- 74983801282
- Hazardous Material Flag:
- N
- Insulation Diameter In :
- 0.23
- Insulation Diameter Mm :
- 5.7
- Insulation Material:
- Vinyl
- Lead Content Indicator:
- N
- Maximum Copper Conductor Size Awg :
- 10
- Maximum Metric Conductor Size Mm :
- 6
- Maximum Operating Temperature C :
- 75
- Maximum Operating Temperature F :
- 167
- Maximum Voltage Kv :
- 0.3
- Maximum Voltage V :
- 300
- Maximum Wire Insulation Diameter In :
- 0.23
- Maximum Wire Insulation Diameter Mm :
- 5.7
- Maximum Wire Size Awg :
- 10
- Mercury Content Indicator:
- N
- Min Order Qty:
- 50
- Minimum Copper Conductor Size Awg :
- 12
- Minimum Metric Conductor Size Mm :
- 4
- Minimum Wire Size Awg :
- 12
- Overall Length In :
- 1.05
- Overall Length Mm :
- 26.7
- Overall Width In :
- 0.31
- Overall Width Mm :
- 7.9
- Packaging Type:
- Bottle
- Pallet Quantity:
- 0
- Pallet Volume:
- 0
- Pallet Weight:
- 0
- Product Segment:
- IEI
- Product Type:
- Ring Terminal
- Reach Status:
- N
- Rohs Compliant:
- Compliant
- Standard Carton Volume Ft3:
- 0.0368
- Standard Carton Weight Pounds:
- 2.5
- Standard Package Volume Ft3:
- 0.0037
- Standard Package Weight Pounds:
- 0.25
- Std Carton Height In:
- 3.8
- Std Carton Height Mm:
- 96.52
- Std Carton Length In:
- 9.3
- Std Carton Length Mm:
- 236.22
- Std Carton Width In:
- 3.9
- Std Carton Width Mm:
- 99.06
- Std Ctn Qty:
- 500
- Std Package Height In:
- 1.8
- Std Package Height Mm:
- 45.72
- Std Package Length In:
- 3.6
- Std Package Length Mm:
- 91.44
- Std Package Width In:
- 1.75
- Std Package Width Mm:
- 44.45
- Std Pkg Qty :
- 50
- Std Pkg Uom:
- Piece
- Stud Hole Size In :
- #6
- Stud Hole Size Mm :
- 3.5
- Stud Size:
- #6
- Tongue Length In :
- 0.53
- Tongue Length Mm :
- 13.3
- Tongue Thickness In :
- 0.04
- Tongue Thickness Mm :
- 1
- Tongue Width In :
- 0.31
- Tongue Width Mm :
- 7.9
- Wire Strip Length In :
- 16-May
- Wire Strip Length Mm :
- 7.9
