Panduit StrongHold™ Adhesive-B...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$15.87

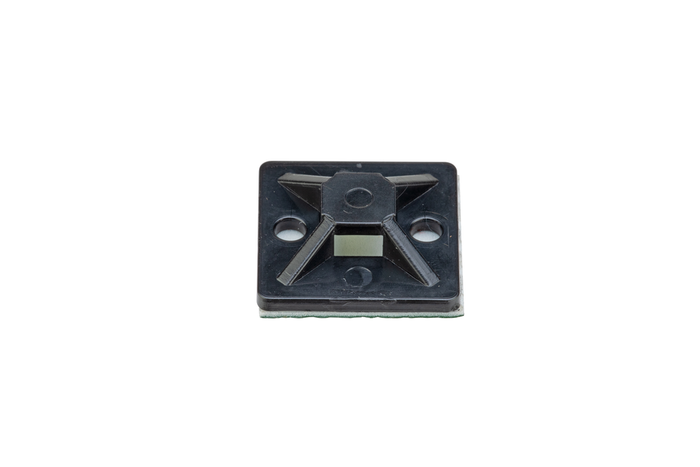

Panduit StrongHold™ Adhesive-Backed Cable Tie Mount

Panduit StrongHold™ Adhesive-Backed Cable Tie Mount

(No reviews yet) Write a Review

Model: SMP16A-3X0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StrongHold™ Adhesive-Backed Cable Tie Mount, PA 6.6 Nylon

The Panduit StrongHold™ Adhesive-Backed Cable Tie Mount is a dependable, low-installed-cost method for securing wires and cables in place of drilled mounts. Molded from V-2 flame-rated Nylon 6.6 for added mechanical strength, heat resistance, and stiffness, this .976" x .976" (25 x 25 mm) black mount works with miniature, intermediate, and standard cable ties and is rated for both indoor and outdoor use. It meets UL62275 and RoHS standards and ships in packages of 30.

Key Features

  • Adhesive-Backed Mounting: Rubber adhesive tape backing allows quick, tool-free installation without drilling into surfaces.
  • Durable PA 6.6 Construction: V-2 flame-rated Nylon 6.6 increases mechanical strength, heat and wear resistance, and stiffness versus standard nylon.
  • Compact Mount Size: .976" x .976" (25 x 25 mm) footprint accepts miniature, intermediate, and standard cable ties.
  • Wide Operating Range: Rated from -20°F to 120°F (-29°C to 49°C) for reliable performance indoors and outdoors.
  • Static Load Capacity: Supports up to 0.5 lb (0.23 kg) of static load per mount.
  • Black Finish: Low-profile black color for a clean look in wire and cable routing applications.

Certifications & Compliance

  • Standards Met: UL62275
  • RoHS Compliant
  • Flammability Rating: UL 94 V-2

Technical Specifications

  • Maximum Operating Temperature (°F): 120
  • Minimum Operating Temperature (°F): -20
  • Maximum Operating Temperature (°C): 49
  • Minimum Operating Temperature (°C): -29
  • Overall Height (In.): 0.3
  • Overall Width (mm): 25
  • Overall Length (mm): 25
  • Static Load Capacity (lb): 0.5
  • Static Load Capacity (kg): 0.23
  • Std. Pkg. Qty.: 30
  • Std Ctn Qty: 300
  • UOM EA PK: PK
  • Mercury Content Indicator: N
  • REACH Status: Y
  • Country of Origin: CHN
  • Product Segment: IEI

Typical Applications

  • Wire and Cable Bundling in Commercial and Industrial Facilities
  • Panelboard and Control Panel Wiring Management
  • Indoor and Outdoor Cable Routing
  • Renovation Projects Where Drilling Is Not Practical
  • Data, Communications, and Power Cable Organization

Why Panduit?

Panduit's StrongHold™ cable tie mounts are built from V-2 flame-rated Nylon 6.6 for added strength, heat resistance, and long-term stiffness, and are tested to UL62275 and RoHS standards. The adhesive-backed design gives electrical and data professionals a fast, reliable, code-conscious way to secure cable ties without compromising the mounting surface.

Manufacturer Resources

Spec Sheet

Product Specs

Standard Package Volume Ft3:
0.0122
Maximum Operating Temperature (°F):
120
Standard Package Weight Pounds:
0.1200
Std. Pkg. UOM:
Piece
Standard Carton Volume Ft3:
0.1220
Std Package Length MM:
119.38
Mercury Content Indicator:
N
Sub Brand:
StrongHold™
Mount Method:
Adhesive Tape
Product Segment:
IEI
Standard Carton Weight Pounds:
1.2000
Overall Height (In.):
0.3
Minimum Operating Temperature (°F):
-20
Min Order Qty:
300.0000
Std Carton Width MM:
88.9
UOM EA PK:
PK
Pallet Volume:
43.927998
Std Package Width In:
6.7
Any Reason Not to Sell:
N
Overall Width (In.):
0.98
Static Load Capacity (lb):
0.5
REACH Status:
Y
Overall Width (mm):
25
Std Carton Length In:
12.6
California Pro65 Cancer:
N
Std Carton Height In:
4.7
Application:
Used With Miniature, Intermediate, and Standard Cable Ties
Std Package Length In:
4.7
Overall Length (mm):
25
Country of Origin:
CHN
Std Carton Width In:
3.5
Std Ctn Qty:
300
Static Load Capacity (kg):
0.23
Product Type:
Cable Tie Mount
Std Carton Height MM:
119.38
Std Package Width MM:
170.18
Pallet Quantity:
108,000
Std Package Height In:
2
Flammability Rating:
UL 94 V-2
Minimum Operating Temperature (°C):
-29
Std Package Height MM:
50.8
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
Maximum Operating Temperature (°C):
49
Std. Pkg. Qty.:
30
Overall Length (In.):
0.98
Environment:
Indoor
Product Material:
Nylon 6.6
Std Carton Length MM:
320.04
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
1000
