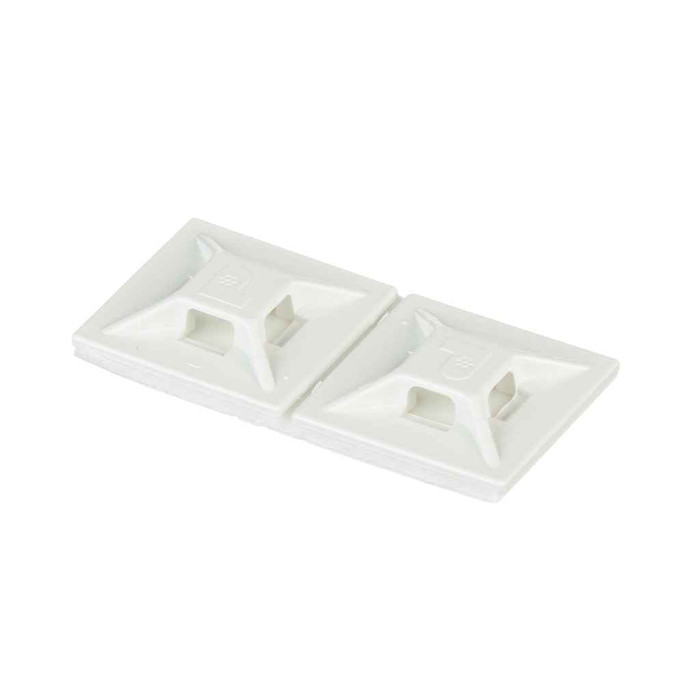

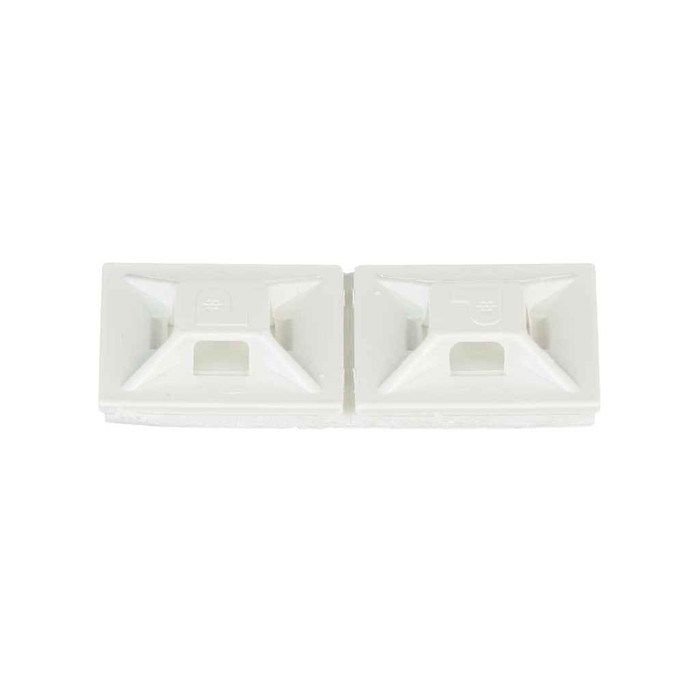

Panduit ABMM-A-D Adhesive-Backed Cable Tie Mount, White ABS
The Panduit ABMM-A-D Cable Tie Mount is a white ABS mounting base designed for fast, drill-free installation using a rubber adhesive backing. Sized at 0.75x0.75", this low-profile mount accepts cable tie entry from all four sides and is compatible with miniature and intermediate cross-section cable ties, making it a versatile choice for organizing and securing cable runs in indoor commercial and industrial environments.
Key Features
- Compact Footprint: 0.75x0.75" base (19.1mm x 19.1mm) with a low-profile 0.18" height keeps the mount unobtrusive on panels and surfaces.
- Durable Construction: Molded from white ABS for a clean appearance and reliable, long-lasting performance.
- Four-Sided Tie Entry: Accepts cable tie entry from all four sides for flexible routing in any direction.
- Miniature and Intermediate Compatibility: Engineered for use with miniature and intermediate cross-section cable ties.
- Adhesive Tape Mounting: Rubber adhesive backing allows quick, drill-free installation on flat surfaces.
- Wide Operating Range: Rated for use from -20°F to 120°F (-29°C to 49°C), suitable for demanding indoor environments.
- Static Load Capacity: Supports a static load of 0.3 lb (0.136 kg) per mount.
Certifications & Compliance
- CE Compliant
- UL Recognized: E136577
- RoHS Compliant
Technical Specifications
- Application: Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties
- For Use With: Miniature, Intermediate Cross-Section Ties
- Environment: Indoor
- Material Description: ABS
- Mount Method: Adhesive Tape
- Maximum Compatible Panel Thickness (in): 0.04
- Maximum Operating Temperature: 120°F
- Minimum Operating Temperature: -20°F
- Overall Height: 0.18 in
- Overall Length: 19.1 mm
- Overall Width: 19.1 mm
- Static Load Capacity: 0.3 lb
- Standard Package Quantity: 500
- Country of Origin: United States
Typical Applications
- Structured Cabling and Network Wiring Installations
- Panel and Enclosure Wire Management
- Commercial and Industrial Cable Routing
- Renovation and New Construction Wiring Projects
Why Panduit?
Panduit backs the ABMM-A-D with UL Recognized and RoHS Compliant construction in durable white ABS, giving installers a dependable, code-aware cable management component. The adhesive-tape mounting design simplifies installation while the four-sided tie entry and broad operating temperature range support reliable performance across demanding indoor cable management applications.
Manufacturer Resources
Product Specs
- Any Reason Not to Sell:
- N
- Arra Compliant:
- Y
- California Pro65 Cancer:
- No
- Country Of Origin:
- United States
- Ean:
- 74983585014
- Environment:
- Indoor
- For Use With:
- Miniature, Intermediate Cross-Section Ties
- GTIN Carton:
- 5.0075E+13
- GTIN Package:
- 74983585014
- Hazardous Material Flag:
- N
- Material Description:
- ABS
- Maximum Compatible Panel Thickness In:
- 0.04
- Maximum Compatible Panel Thickness Mm:
- 1
- Maximum Operating Temperature (°C):
- 49
- Maximum Operating Temperature (°F):
- 120
- Mercury Content Indicator:
- N
- Min Order Qty:
- 1,000.00
- Min. Order UOM:
- Piece
- Minimum Operating Temperature (°C):
- -29
- Minimum Operating Temperature (°F):
- -20
- Mount Method:
- Adhesive Tape
- Overall Height (In.):
- 0.18
- Overall Height Mm:
- 4.6
- Overall Length (In.):
- 0.75
- Overall Length (mm):
- 19.1
- Overall Width (In.):
- 0.75
- Overall Width (mm):
- 19.1
- Pallet Quantity:
- 400,000
- Pallet Volume:
- 42.256
- Pallet Weight:
- 560
- Product Color:
- White
- Product Material:
- ABS
- Product Segment:
- IEI
- Product Type:
- Cable Tie Mount
- REACH Status:
- N
- Rohs Compliant:
- Compliant
- Standard Carton Volume Ft3:
- 0.5282
- Standard Carton Weight Pounds:
- 7
- Standard Package Volume Ft3:
- 0.0528
- Standard Package Weight Pounds:
- 0.7
- Static Load Capacity Kg:
- 0.136
- Static Load Capacity Lb:
- 0.3
- Std Carton Height In:
- 8.8
- Std Carton Height MM:
- 223.52
- Std Carton Length In:
- 10.95
- Std Carton Length MM:
- 278.13
- Std Carton Width In:
- 9.05
- Std Carton Width MM:
- 229.87
- Std Ctn Qty:
- 5000
- Std Package Height In:
- 1.7
- Std Package Height MM:
- 43.18
- Std Package Length In:
- 9.4
- Std Package Length MM:
- 238.76
- Std Package Width In:
- 8.7
- Std Package Width MM:
- 220.98
- Std. Pkg. Qty.:
- 500
- Std. Pkg. UOM:
- Piece
- UOM EA PK:
- PK
- Department:
- Electrical
- Product Group:
- Cable Management & Identification
- Product Subgroup:
- Cable Ties & Mounts
Panduit ABMM-A-D – Frequently Asked Questions
1) What size cable ties fit the Panduit ABMM-A-D adhesive mount?
The ABMM-A-D takes miniature and intermediate cross-section cable ties, and the tie can enter from any of the four sides so you can route in whatever direction the bundle runs. Heavy or standard cross-section ties are too wide for the slot, so for larger bundles you need a bigger mount.
2) Can I use a Panduit ABMM-A-D cable tie mount outdoors or in an unheated space?
No. It is rated for indoor use only, with an operating range of -20 F to 120 F (-29 C to 49 C). White ABS with a rubber adhesive is not an outdoor, UV-exposed, or wet-location part. For exterior runs use an outdoor-rated mount and a weather-resistant tie.
3) Does this Panduit mount need a drilled hole or screw?
No drilling. The ABMM-A-D mounts with a rubber adhesive tape backing, so it presses onto a clean flat surface. That is the reason to pick it on finished panels, painted drywall, or anywhere you cannot put a hole, like a leased space or a sealed enclosure wall.
4) How much space does the ABMM-A-D take up inside an enclosure?
The base footprint is 0.75 x 0.75 inches (19.1 x 19.1 mm) and overall height is 0.18 inches (4.6 mm). Low enough that a tied bundle on top of it still clears most panel doors and wireway covers.
5) Is the Panduit ABMM-A-D RoHS compliant and UL Recognized?
Yes on both. The ABMM-A-D is RoHS compliant and carries UL Recognition under file E136577, and it is CE compliant. It is also made in the United States and flagged ARRA compliant, which matters on federally funded work with domestic-content requirements.
6) How many Panduit ABMM-A-D mounts come in a package?
Standard package is 500 pieces, and a standard carton holds 5,000 (ten packs). The order minimum is 1,000 pieces, so a typical small order is two 500-count packs.
7) What is the maximum panel thickness listed for this Panduit cable tie mount?
Maximum compatible panel thickness is 0.04 inches (1 mm). That figure is the thin sheet metal or panel material the mount is matched to, so plan on using it on light gauge panels and flat sheet rather than structural plate.
8) Will a white cable tie mount blend in on finished walls and panels?
The ABMM-A-D is molded in white ABS, so it disappears against white enclosure interiors, ceiling tile grid, and painted drywall. For AV or structured cabling work in finished occupied space, that is usually the reason to pick white over black.
