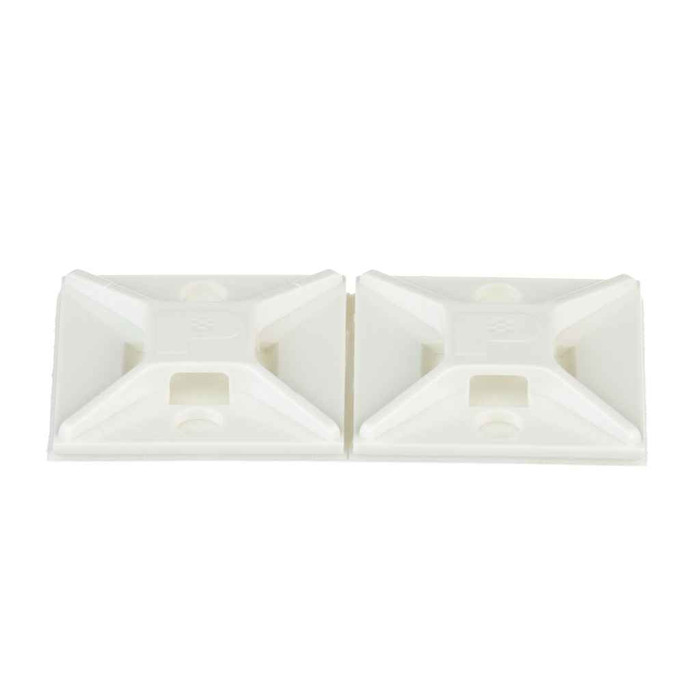

Panduit ABM2S-A-C Cable Tie Mount, White ABS, Rubber Adhesive, 1x1", 100-Pack
The Panduit ABM2S-A-C Cable Tie Mount is a white ABS mounting base designed to anchor miniature, intermediate, and standard cross-section cable ties to a surface using a rubber adhesive backing. Measuring 1x1", this mount provides a clean, screw-free way to route and secure cabling in indoor environments. It is CE Compliant, UL Recognized (E136577), and RoHS Compliant, and ships in packs of 100.
Key Features
- Trade Size: 1x1" overall footprint for compact mounting on panels, enclosures, and surfaces.
- Durable Construction: Molded white ABS body resists impact and everyday wear in indoor cable management applications.
- Adhesive Mount: Rubber adhesive backing allows fast, tool-free installation without drilling or screws.
- Broad Tie Compatibility: Accepts miniature, intermediate, and standard cross-section cable ties for flexible bundling options.
- Wide Operating Range: Rated from -29°C to 49°C (-20°F to 120°F) for stable performance across typical indoor conditions.
- Panel Compatibility: Suited for panels up to 0.04" (1mm) thick.
- Static Load Capacity: Holds up to 0.5 lb (0.227 kg) of bundled cable weight.
Certifications & Compliance
- CE Compliant
- UL Recognized: E136577
- RoHS Compliant
Technical Specifications
- Product Material: ABS
- Color: White
- Mount Method: Adhesive Tape
- Application: Used with Miniature, Intermediate, and Standard Cross-Section Cable Ties
- Environment: Indoor
- Overall Length: 1" (25.4mm)
- Overall Width: 1" (50.3mm)
- Overall Height: 0.2" (5.1mm)
- Maximum Operating Temperature: 120°F (49°C)
- Minimum Operating Temperature: -20°F (-29°C)
- Maximum Compatible Panel Thickness: 0.04" (1mm)
- Static Load Capacity: 0.5 lb (0.227 kg)
- Standard Package Quantity: 100 (PK100)
- Country of Origin: United States
Typical Applications
- Data Center and Network Cabinet Cable Management
- Panel and Enclosure Wire Bundling
- Commercial and Industrial Cable Routing
- Indoor Structured Cabling Installations
- Renovation and New Construction Wiring Projects
Why Panduit?
Panduit builds cable management components like the ABM2S-A-C from durable ABS material with an adhesive design engineered for reliable, code-compliant performance. Backed by UL Recognition and RoHS and CE compliance, this mount delivers dependable, tool-free cable securement for professional installations.
Manufacturer Resources
Product Specs
- Any Reason Not To Sell:
- N
- Application:
- Used with Miniature, Intermediate, and Standard Cables Ties
- Arra Compliant:
- Y
- California Pro65 Cancer:
- No
- Country Of Origin:
- United States
- Ean:
- 74983580330
- Environment:
- Indoor
- For Use With:
- Miniature, Intermediate, Standard Cross-Section Ties
- Gtin Carton:
- 5.0075E+13
- Gtin Package:
- 74983580330
- Hazardous Material Flag:
- N
- Material Description:
- ABS
- Maximum Compatible Panel Thickness In:
- 0.04
- Maximum Compatible Panel Thickness Mm:
- 1
- Maximum Operating Temperature C:
- 49
- Maximum Operating Temperature F:
- 120
- Mercury Content Indicator:
- N
- Min Order Qty:
- 500
- Min Order Uom:
- Piece
- Minimum Operating Temperature C:
- -29
- Minimum Operating Temperature F:
- -20
- Mount Method:
- Adhesive Tape
- Overall Height In:
- 0.2
- Overall Height Mm:
- 5.1
- Overall Length In:
- 1
- Overall Length Mm:
- 25.4
- Overall Width In:
- 1
- Overall Width Mm:
- 50.3
- Pallet Quantity:
- 80,000
- Pallet Volume:
- 43.121272
- Pallet Weight:
- 296
- Product Color:
- White
- Product Material:
- ABS
- Product Segment:
- IEI
- Product Type:
- Cable Tie Mount
- Reach Status:
- N
- Rohs Compliant:
- Compliant
- Standard Carton Volume Ft3:
- 0.2695
- Standard Carton Weight Pounds:
- 1.85
- Standard Package Volume Ft3:
- 0.0539
- Standard Package Weight Pounds:
- 0.37
- Static Load Capacity Kg:
- 0.227
- Static Load Capacity Lb:
- 0.5
- Std Carton Height In:
- 4.4
- Std Carton Height Mm:
- 111.76
- Std Carton Length In:
- 10.3
- Std Carton Length Mm:
- 261.62
- Std Carton Width In:
- 10.25
- Std Carton Width Mm:
- 260.35
- Std Ctn Qty:
- 500
- Std Package Height In:
- 1.55
- Std Package Height Mm:
- 39.37
- Std Package Length In:
- 8.65
- Std Package Length Mm:
- 219.71
- Std Package Width In:
- 6.05
- Std Package Width Mm:
- 153.67
- Std Pkg Qty:
- 100
- Std Pkg Uom:
- Piece
- Uom Ea Pk:
- PK
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Cable Ties & Mounts
Panduit ABM2S-A-C – Frequently Asked Questions
1) Can I use the Panduit ABM2S-A-C outdoors or in an unconditioned attic or rooftop?
Indoor only. The ABM2S-A-C is an ABS mount with a rubber adhesive backing, rated for an operating range of -20 to 120 degrees F (-29 to 49 C). A rooftop, a hot attic, or an exterior wall runs past the top of that range in summer, and an adhesive mount in weather is the wrong call regardless. For outdoor or wet-location routing, use a screw-mounted or weather-rated mount instead.
2) What size cable ties fit the Panduit ABM2S-A-C mount?
Miniature, intermediate, and standard cross-section ties all pass through the ABM2S-A-C. That covers most of what an electrician or low-voltage tech carries on the truck. Heavy cross-section ties are not in the compatible list, so if you are bundling with a heavy-duty tie, size up to a larger mount.
3) Is the Panduit ABM2S-A-C UL Recognized and RoHS compliant for a spec job?
Yes on both. The ABM2S-A-C carries UL Recognition under file E136577, is CE compliant, and is RoHS compliant. It is also ARRA compliant and made in the United States, which is what matters when a federal, state, or institutional project carries a domestic sourcing requirement.
4) Do I need to drill for the Panduit ABM2S-A-C, or does it stick on?
It sticks on. The mount uses a rubber adhesive backing, so it goes onto a clean, dry surface with no drilling, no screws, and no tools. That is the reason to pick it in a finished space, a leased suite, or a sheet metal enclosure where you do not want a new hole. The tradeoff is the 0.5 lb load limit and indoor-only use.
5) How much room does the ABM2S-A-C cable tie mount take up inside a panel?
The footprint is 1 inch by 1 inch, and it stands 0.2 inch (5.1 mm) off the surface. That low profile is what lets it sit behind a door or under a wireway without fouling anything when the enclosure closes. Lay out your runs on the 1 inch square and you know exactly what real estate each mount claims.
6) How many Panduit ABM2S-A-C mounts come in a pack, and what is the minimum order?
Standard packaging is 100 pieces per pack, cartons run 500, and the minimum order is 500 pieces. So a single job order lands at one carton, not one bag. Pallet quantity is 80,000 if you are stocking a warehouse or standardizing across a portfolio.
7) Can the ABM2S-A-C tie mount be used on a thin sheet metal panel?
Yes, up to 0.04 inch (1 mm) panel thickness. That covers the thin-gauge sheet you find in network cabinets, wireway covers, and light equipment enclosures. Thicker structural panel is outside the stated compatibility, and since the mount bonds with adhesive rather than clipping through a hole, surface prep matters more than gauge: clean and dry before you press it down.
8) Is a cable tie mount the right choice, or should I be using clips or straps for my run?
An adhesive tie mount like the ABM2S-A-C is for anchoring a bundle at a point on a flat surface, when you want the tie itself to do the holding and you cannot or will not drill. It suits panel and cabinet dressing, low-voltage drops along a finished surface, and tidying an existing install. Where the run carries real weight, needs a rated support, or lives outdoors, it is the wrong tool: the mount tops out at 0.5 lb of static load and is rated indoor only. Screw-applied mounts, J-hooks, or strapping take over from there.
9) What color is the Panduit ABM2S-A-C, and will it show on a wall or panel?
White ABS. On white drywall, a white enclosure interior, or a light panel it disappears; against gray or black gear it will read as a visible dot, which is worth knowing before you set a hundred of them across a finished lobby or a patient room. There is one model, ABM2S-A-C, so white is the color it comes in.
10) Does the Panduit ABM2S-A-C contain mercury or fall under a California Prop 65 cancer warning?
Neither. The ABM2S-A-C has no mercury content indicated, carries no Prop 65 cancer listing, and is not classed as hazardous material for shipping. It is molded ABS with a rubber adhesive back. Facilities and institutional buyers filing material disclosures can take those three straight off the record.
