Panduit T12F-C Polyethylene Spiral Wrap, Natural

Panduit T12F-C Polyethylene Spiral Wrap, Natural

(No reviews yet) Write a Review

Model: T12F-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$65.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit T12F-C Polyethylene Spiral Wrap, Natural

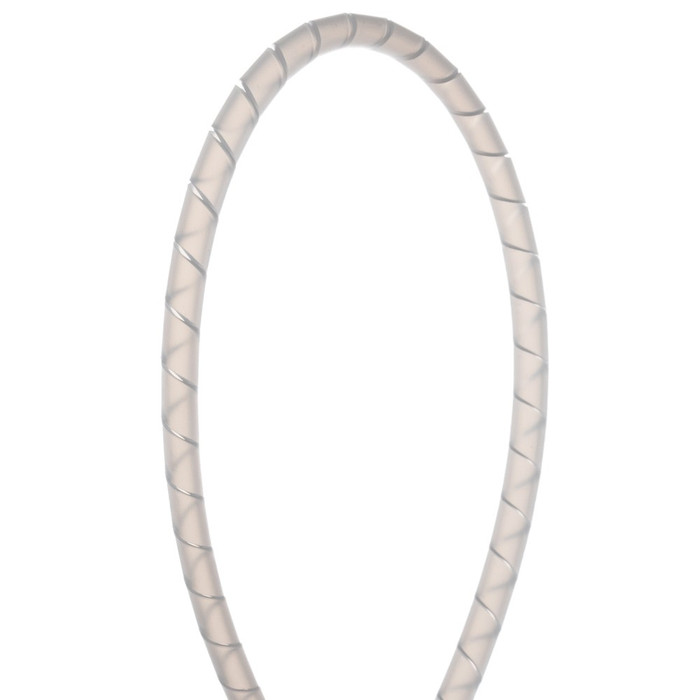

The Panduit T12F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing while harnessing multiple cables into a single manageable bundle and allowing for breakouts. This lightweight, flexible, and durable spiral wrap measures 0.12" (3.2 mm) outer diameter x 100' (30.5 m) long and accommodates bundle diameters from 0.0625" to 0.5" (1.6 mm to 12.7 mm). Rated for continuous use from -40°F to 122°F (-40°C to 50°C) and finished in Natural color, this spiral wrap is UL Recognized (E141152) for demanding commercial and industrial cable management applications.

Key Features

  • Compact Profile: 0.12" (3.2 mm) outer diameter x 100' (30.5 m) long roll for extended run coverage.
  • Bundle Range: Accommodates bundle diameters from 0.0625" to 0.5" (1.6 mm to 12.7 mm), ideal for irregular cable shapes.
  • Durable Construction: Polyethylene material with 0.03" (0.8 mm) wall thickness delivers lightweight, flexible, abrasion-resistant protection.
  • Breakout Capability: Spiral design harnesses multiple cables into one manageable bundle while allowing single or multiple cable breakouts.
  • Temperature Rating: Rated for continuous operation from -40°F to 122°F (-40°C to 50°C).
  • Flammability Rating: UL94-HB rated material for added safety assurance.
  • Finish: Natural color for a clean, unobtrusive appearance on cable runs.

Certifications & Compliance

  • UL Recognized E141152
  • RoHS Compliant
  • Not Subject to California Proposition 65 Cancer Warning

Technical Specifications

  • Maximum Operating Temperature (°F): 122
  • Maximum Operating Temperature (°C): 50
  • Minimum Operating Temperature (°F): -40
  • Minimum Operating Temperature (°C): -40
  • Outer Diameter (mm): 3.2
  • Wall Thickness (mm): 0.8
  • Overall Length (ft.): 100
  • Maximum Bundle Diameter (In.): 0.5
  • Minimum Bundle Diameter (mm): 1.6
  • Std. Pkg. Qty.: 1
  • REACH Status: N
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • Hazardous Material Flag: N
  • ARRA Compliant: Y
  • Country of Origin: United States

Typical Applications

  • Harnessing Multiple Cables Into a Single Manageable Bundle
  • Cable Breakout Applications for Single or Multiple Conductors
  • Abrasion Protection for Wires, Cables, Hoses, and Tubing
  • Data Center and Network Cabling Organization
  • Commercial and Industrial Wire Management Installations

Why Panduit?

Panduit's T12F-C Spiral Wrap combines a lightweight polyethylene construction with abrasion-resistant performance, giving electrical professionals a dependable, code-conscious solution for organizing and protecting cable bundles. Backed by UL Recognition (E141152) and RoHS compliance, this spiral wrap is built to perform reliably across a wide -40°F to 122°F operating range in demanding commercial and industrial environments.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0648
Outer Diameter (In.):
0.12
Maximum Operating Temperature (°F):
122
Wall Thickness (mm):
0.8
Standard Package Weight Pounds:
0.5500
REACH Status:
N
Std. Pkg. UOM:
Roll
Overall Length (m):
30.48
California Pro65 Cancer:
No
Wall Thickness (In.):
0.03
Std Package Length In:
8.95
Country of Origin:
United States
Standard Carton Volume Ft3:
0.0000
Std Package Length MM:
227.33
Lead Content Indicator:
N
Mercury Content Indicator:
N
Outer Diameter (mm):
3.2
Maximum Bundle Diameter (In.):
0.5
Std Ctn Qty:
0
Product Segment:
IEI
Resistance Properties:
Abrasion-Resistant
Product Type:
Spiral Wrap
Std Package Width MM:
215.9
Pallet Quantity:
0
Std Package Height In:
1.85
Flammability Rating:
UL94-HB
Minimum Operating Temperature (°C):
-40
Standard Carton Weight Pounds:
0.0000
Minimum Operating Temperature (°F):
-40
Std Package Height MM:
46.99
Min Order Qty:
1.0000
Maximum Bundle Diameter (mm):
12.7
RoHS Compliant:
Compliant
GTIN Package:
00074983706006
Min. Order UOM:
Roll
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
50
Std. Pkg. Qty.:
1
Overall Length (ft.):
100
Minimum Bundle Diameter (In.):
0.06
UOM EA PK:
EA
Pallet Volume:
0.000000
Std Package Width In:
8.5
Minimum Bundle Diameter (mm):
1.6
Hazardous Material Flag:
N
Any Reason Not to Sell:
N
Product Material:
Polyethylene
Product Color:
Natural
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Cable Management

Panduit T12F-C – Frequently Asked Questions

1) What cable bundle sizes does Panduit T12F-C spiral wrap fit?
The T12F-C spiral wrap handles bundles from 0.0625 in (1.6 mm) up to 0.5 in (12.7 mm) diameter. That covers everything from a single small conductor run up to a half-inch harness of data or control cable. If your bundle is bigger than 1/2 inch, step up to a larger-diameter spiral wrap rather than stretching this one.
2) Should I use spiral wrap or a braided sleeve / split loom for a cable run with branch takeoffs?
Spiral wrap is the right pick when conductors have to leave the bundle at different points. The T12F-C is an open helix, so a single cable or a group can break out anywhere along the run without cutting the wrap or terminating the bundle. A solid sleeve or split loom gives more complete coverage but forces you to end the sleeve at each breakout. For a harness feeding several devices off one trunk, spiral is the simpler build.
3) Is Panduit T12F-C spiral wrap UL listed and RoHS compliant for a spec job?
It is UL Recognized under file E141152 and the polyethylene carries a UL94-HB flammability rating. It is also RoHS compliant, ARRA compliant, made in the United States, and not subject to the California Prop 65 cancer warning. Note UL Recognized is a component recognition, not a UL Listing of a finished assembly.
4) How much spiral wrap comes on one roll of T12F-C?
One roll, 100 feet (30.48 m) of wrap. Minimum order is one roll and that is also the standard package, so you can buy a single roll for a small job rather than a case.
5) Can Panduit T12F-C spiral wrap be used outdoors or in an unheated warehouse?
Continuous operating range is -40 F to 122 F (-40 C to 50 C), so an unheated warehouse, a rooftop chase, or a cold northern shop is within rating. What it will not take is heat above 122 F, so keep it off engine compartments, boiler rooms, or anything running hot.
6) How thick is the wall on T12F-C spiral wrap, and will it really stop abrasion?
Wall thickness is 0.03 in (0.8 mm) with a 0.12 in (3.2 mm) outer diameter on the strand. That is a thin, light polyethylene profile rated abrasion-resistant, meant to keep cable jackets off sheet metal edges, cable tray rails, and rack corners. It is protection against rubbing and chafing, not crush or impact armor.
7) Is polyethylene spiral wrap OK for data center and low-voltage cable bundles?
Yes. Polyethylene is non-conductive and the wrap is intended for harnessing and protecting data and network cabling as well as general wire, hose, and tubing runs. It bundles a group of cables into one manageable run and still lets you pull individual drops out where they terminate. Keep the finished bundle within the 1/2 inch maximum diameter.
8) Will natural-color spiral wrap look out of place on white or gray cable in a finished space?
The T12F-C is supplied in Natural, a translucent off-white polyethylene rather than a bold color. On white, gray, or light jacketed cable in an office, hospitality, or multi-family space it reads as low-key. If you need it to disappear against black cable or want color coding by circuit, pick a black or colored spiral wrap instead.
