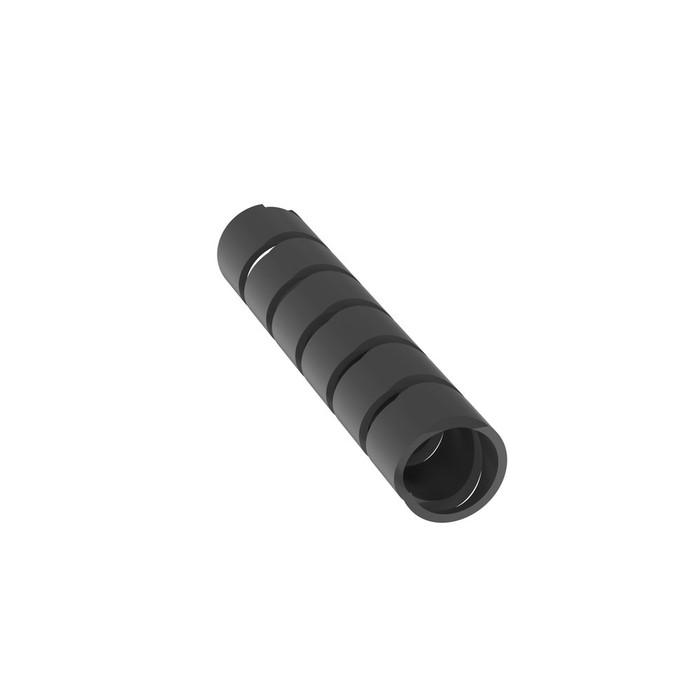

Panduit T75FC0 Spiral Wrap, Black Polyethylene
The Panduit T75FC0 Spiral Wrap is a weather-resistant black polyethylene wrap that provides continuous abrasion protection for wires, cables, and tubing. This family of spiral wrap is available in 0.625" and 0.875" tube diameters, each supplied as a 100' (30.5 m) roll for continuous cable coverage, and accommodates bundle diameters ranging from 0.875" to 6" (22.2 mm to 152.4 mm). It harnesses multiple cables into a single manageable bundle while allowing for single or multiple breakouts, and is UL Recognized and rated for continuous operation from -40°F to 122°F (-40°C to 50°C), making it suitable for both indoor and outdoor installations.
Key Features
- Size Range: Available in 0.625" and 0.875" tube diameters, each supplied as a 100' (30.5 m) roll.
- Durable Construction: UV-resistant polyethylene (PE) material delivers lightweight, flexible, and durable protection.
- Bundle Diameter Range: Accommodates bundles from 0.875" to 6" (22.2 mm to 152.4 mm), allowing use with irregular shapes.
- Breakout Capability: Harnesses multiple cables into a single manageable bundle while allowing single or multiple cable breakouts.
- Temperature Rating: Rated for continuous use from -40°F (-40°C) to 122°F (50°C).
- Finish: Black color for consistent, professional cable management appearance.
- Environment: Suitable for both indoor and outdoor installations.
Certifications & Compliance
- UL Recognized - E141152
- UL94HB Flammability Rating
- RoHS Compliant
Technical Specifications
- Size Range: 0.625" - 0.875"
- Maximum Operating Temperature (°F): 122
- Minimum Operating Temperature (°F): -40
- Maximum Operating Temperature (°C): 50
- Minimum Operating Temperature (°C): -40
- Material: Polyethylene
- Color: Black
- Overall Length (ft.): 100
- Overall Length (m): 30.48
- Std. Pkg. Qty.: 1
- Std. Pkg. UOM: Roll
- Pallet Quantity: 20
- Country of Origin: United States
- Flammability Rating: UL94-HB
- Lead Content Indicator: N
- Mercury Content Indicator: N
- Hazardous Material Flag: N
- Restricted Use of Hazardous Substances: N
- REACH Status: N
- Prop 65 Warning: No
Typical Applications
- Bundling and Organizing Multiple Cables, Wires, and Hoses
- Abrasion Protection for Wire and Cable Harnesses
- Indoor and Outdoor Cable Management Installations
- Cable Runs Requiring Single or Multiple Breakouts
- Commercial and Industrial Wiring Installations
Why Panduit?
Panduit's T75FC0 Spiral Wrap family combines UV-resistant polyethylene construction with a UL Recognized listing and UL94HB flammability rating, delivering dependable abrasion protection for professional cable management applications. With 0.625" and 0.875" tube diameters covering a bundle diameter range of 0.875" to 6", this wrap is a reliable choice for organizing and protecting cables in both indoor and outdoor environments.
Manufacturer Resources
Product Specs
- Standard Package Volume Ft3:
- 2.4780
- Maximum Operating Temperature (°F):
- 122
- Std. Pkg. UOM:
- Roll
- Overall Length (m):
- 30.48
- Standard Carton Volume Ft3:
- 0.0000
- Lead Content Indicator:
- N
- Mercury Content Indicator:
- N
- Product Segment:
- IEI
- Standard Carton Weight Pounds:
- 0.0000
- Minimum Operating Temperature (°F):
- -40
- Min Order Qty:
- 1.0000
- UOM EA PK:
- EA
- Pallet Volume:
- 0.000000
- Any Reason Not to Sell:
- N
- REACH Status:
- N
- California Pro65 Cancer:
- No
- Country of Origin:
- United States
- Std Ctn Qty:
- 0
- Product Type:
- Spiral Wrap
- Pallet Quantity:
- 20
- Flammability Rating:
- UL94-HB
- Minimum Operating Temperature (°C):
- -40
- RoHS Compliant:
- Compliant
- Min. Order UOM:
- Roll
- ARRA Compliant:
- Y
- Maximum Operating Temperature (°C):
- 50
- Std. Pkg. Qty.:
- 1
- Overall Length (ft.):
- 100
- Environment:
- Indoor and Outdoor
- Hazardous Material Flag:
- N
- Restricted Use of Hazardous Substances:
- N
- Prop 65 Warning:
- No
- Product Material:
- Polyethylene
- Product Color:
- Black
- Product Size:
- 875"
- Product Size:
- 625"
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Listing:
- UL Recognized
- Standards:
- UL94HB
- Product Subgroup:
- Cable Management
Panduit T75F-C0 – Frequently Asked Questions
1) What bundle diameter can Panduit T100F-C0 spiral wrap handle?
The T100F-C0 spiral wrap works on bundles from 0.875 inch up to 6 inches (22.2 mm to 152.4 mm). That range is wide because the spiral opens up as you wind it on, so it also takes irregular shapes and bundles that change diameter along the run. If your bundle is under 7/8 inch, this size will be loose on it.
2) Can Panduit spiral wrap be used outdoors or in unheated buildings?
Yes. The polyethylene wrap is UV resistant and rated for both indoor and outdoor service, with a continuous operating range of -40 F to 122 F (-40 C to 50 C). That covers unheated warehouses, rooftop runs and exterior equipment in cold climates. It is not a high-heat product, so keep it away from anything running above 122 F.
3) Is Panduit T100F-C0 spiral wrap UL rated, and what is its flammability rating?
It is UL Recognized under file E141152 and carries a UL94-HB flammability rating. HB is the horizontal burn classification, the baseline UL94 rating, so if your spec calls for a self-extinguishing V-0 or V-2 material this polyethylene wrap will not meet it. It is also RoHS compliant with no lead or mercury content and no Prop 65 warning.
4) Should I use spiral wrap or braided sleeving when cables need to branch off mid-run?
Spiral wrap is the one that handles breakouts. Because it is a continuous open spiral rather than a closed sleeve, individual cables can exit anywhere along the run without cutting or terminating the wrap, and you can add a cable later without stripping the harness. A closed sleeve has to be cut or slid off. Use the Panduit T100F-C0 where the harness fans out to multiple devices; use a closed sleeve where the bundle runs point to point with no branches.
5) How is Panduit T100F-C0 spiral wrap sold, by the foot or by the roll?
By the roll. One roll is 100 feet (30.48 m) and the minimum order is a single roll, so there is no cut-to-length charge and no minimum footage. A pallet holds 20 rolls if you are buying in volume for a large harness job.
6) Is Panduit spiral wrap made in the USA for a federally funded project?
The T100F-C0 spiral wrap has a country of origin of USA and is flagged ARRA compliant, which is what government, school district and other federally funded procurement usually needs on the submittal.
7) Will spiral wrap protect cables where they rub on a metal edge or move constantly?
That is the main job of this product. The polyethylene spiral gives continuous abrasion protection where a harness crosses a sheet metal edge, passes through a panel opening, or flexes on moving equipment. Polyethylene is flexible and lightweight, so it will not stiffen a bundle that has to move. For a fixed sharp edge, it does not replace a grommet or bushing where code or the drawing calls for one.
