Panduit T38F-C0 Black UV Polye...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$402.89
$267.41

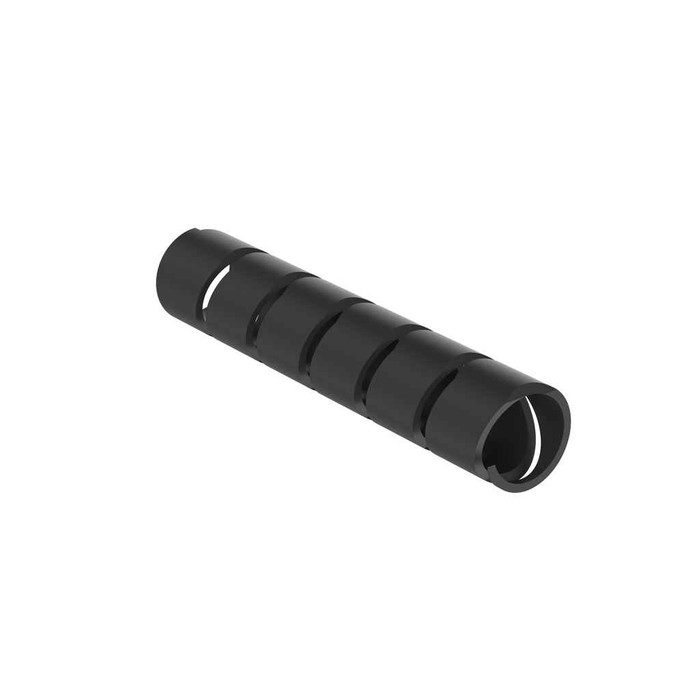

Panduit T38F-C0 T38F-C0 Spiral Wrap, Black, UV PE, 0.3125" Min Dia., 100' Roll, PK1

Panduit T38F-C0 Black UV Polyethylene Spiral Wrap, 0.3125" to 3" Bundle Dia, 100' Roll

(No reviews yet) Write a Review

Model: T38F-C0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$402.89
$267.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit T38F-C0 Black UV Polyethylene Spiral Wrap, 0.3125" to 3" Bundle Dia, 100' Roll

The Panduit T38F-C0 Spiral Wrap is a black, UV-resistant polyethylene cable management solution built for both indoor and outdoor applications. It accommodates bundle diameters from 0.3125" to 3", and the 100' roll length delivers extensive coverage for professional installations with minimal splicing. Backed by a UL94-HB flammability rating and abrasion-resistant construction, this spiral wrap organizes and protects cable bundles across a wide -40°F to 122°F operating temperature range.

Key Features

  • Bundle Diameter Range: Accommodates 0.3125" to 3" diameter bundles for versatile cable configurations and installation needs.
  • UV-Resistant Polyethylene: Black polyethylene construction withstands outdoor exposure while maintaining structural integrity.
  • Extended Length Coverage: 100' roll length reduces splicing and provides continuous protection for long cable runs.
  • Wide Operating Temperature Range: Rated from -40°F to 122°F for reliable performance across diverse environments.
  • UL94-HB Fire Rating: Meets flammability standards for safe use in commercial and industrial installations.
  • Abrasion Resistance: Protective wrap shields cables from mechanical wear and environmental damage.
  • Breakout Capability: Allows single or multiple cable breakouts while keeping the bundle organized and intact.

Certifications & Compliance

  • UL94-HB Flammability Rating
  • RoHS Compliant
  • ARRA Compliant

Technical Specifications

  • Arra Compliant: Y
  • California Pro65 Cancer: No
  • Hazardous Material Flag: N
  • Lead Content Indicator: N
  • Maximum Bundle Diameter In: 3
  • Maximum Operating Temperature C: 50
  • Maximum Operating Temperature F: 122
  • Mercury Content Indicator: N
  • Min Order Qty: 1
  • Minimum Bundle Diameter Mm: 7.9
  • Minimum Operating Temperature C: -40
  • Minimum Operating Temperature F: -40
  • Outer Diameter Mm: 9.5
  • Overall Length Ft: 100
  • Pallet Quantity: 63
  • Pallet Volume: 0
  • Product Segment: IEI
  • Reach Status: N
  • Standard Carton Volume Ft3: 0
  • Standard Carton Weight Pounds: 0
  • Std Ctn Qty: 0
  • Std Package Height In: 6.8
  • Std Pkg Qty: 1
  • Wall Thickness Mm: 1.4

Typical Applications

  • Data Center Cable Management
  • Industrial Control Panel Wiring
  • Telecommunications Infrastructure
  • Commercial Building Systems
  • Outdoor Equipment Installations
  • Manufacturing Facility Wiring

Why Panduit?

Panduit spiral wrap solutions deliver dependable cable organization backed by a UL94-HB flammability rating and RoHS compliance. The abrasion-resistant, UV-stable polyethylene construction and wide -40°F to 122°F operating range make the T38F-C0 a reliable choice for professional cable management across commercial, industrial, and telecommunications environments.

Manufacturer Resources

Product Specs

Arra Compliant:
Y
California Pro65 Cancer:
No
Country Of Origin:
United States
Ean:
74983706068
Environment:
Indoor and Outdoor
Flammability Rating:
UL94-HB
Gtin Package:
74983706068
Hazardous Material Flag:
N
Lead Content Indicator:
N
Maximum Bundle Diameter In:
3
Maximum Bundle Diameter Mm:
76.2
Maximum Operating Temperature C:
50
Maximum Operating Temperature F:
122
Mercury Content Indicator:
N
Min Order Qty:
1
Minimum Bundle Diameter In:
0.3125
Minimum Bundle Diameter Mm:
7.9
Minimum Operating Temperature C:
-40
Minimum Operating Temperature F:
-40
Outer Diameter In:
0.38
Outer Diameter Mm:
9.5
Overall Length Ft:
100
Overall Length M:
30.48
Pallet Quantity:
63
Pallet Volume:
0
Pallet Weight:
236.25
Product Color:
Black
Product Material:
Polyethylene
Product Segment:
IEI
Product Type:
Spiral Wrap
Reach Status:
N
Resistance Properties:
Abrasion-Resistant
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0
Standard Carton Weight Pounds:
0
Standard Package Volume Ft3:
0.8359
Standard Package Weight Pounds:
3.75
Std Ctn Qty:
0
Std Package Height In:
6.8
Std Package Height Mm:
172.72
Std Package Length In:
14.6
Std Package Length Mm:
370.84
Std Package Width In:
14.5
Std Package Width Mm:
368.3
Std Pkg Qty:
1
Std Pkg Uom:
Roll
Wall Thickness In:
0.055
Wall Thickness Mm:
1.4
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Cable Management

Panduit T38F-C0 – Frequently Asked Questions

1) What size cable bundle will Panduit T38F-C0 spiral wrap fit?
The T38F-C0 wraps bundles from 0.3125 inch (7.9 mm) up to 3 inches (76.2 mm) in diameter. That covers everything from a small control-panel harness to a heavy multi-conductor run. Below 5/16 inch the wrap will not grip the bundle properly, and past 3 inches it will not close around it, so for larger bundles step up to a wider spiral wrap size.
2) Can this Panduit spiral wrap be used outdoors or in direct sun?
Yes. The T38F-C0 is black UV-stabilized polyethylene rated for indoor and outdoor use, and it runs from -40 F to 122 F (-40 C to 50 C). That covers unheated yards, rooftop equipment, and outdoor gear enclosures. The black pigment is what carries the UV resistance, so do not substitute a natural or clear wrap for sun-exposed runs.
3) Does the Panduit T38F-C0 meet flammability and RoHS requirements for a commercial install?
It carries a UL94-HB flammability rating and is RoHS compliant. It is also ARRA compliant with United States country of origin, which matters on federally funded work, and it is flagged as containing no lead and no mercury with no California Prop 65 cancer warning.
4) Is spiral wrap or split loom tubing the better choice for a cable run with branches?
Spiral wrap like the T38F-C0 is the one to use when cables need to leave the bundle at different points. The open helix lets you break out a single cable or several anywhere along the run without cutting the wrap or terminating the bundle. Split loom encloses the bundle continuously and is better where you want full coverage against debris and no exposed cable. Spiral also flexes with moving or articulating runs, which is where it earns its place on machinery and robotics.
5) Will this spiral wrap hold up in an unheated warehouse or a freezer area?
Down to -40 F it will. The T38F-C0 is rated -40 F to 122 F, so unheated warehouses, loading docks, and cold-storage adjacent runs are within range. The upper limit of 122 F is the one to watch: it is not suited to wrapping cable that runs against hot equipment, steam lines, or inside high-temperature enclosures.
6) What is the correct Panduit part number for black 100 foot spiral wrap, and is it a single item?
The manufacturer part number is T38F-C0, sold as one model with no finish or size options to pick: black polyethylene, 100 foot roll. That is the number to quote on a purchase order or cross-reference against a submittal.
