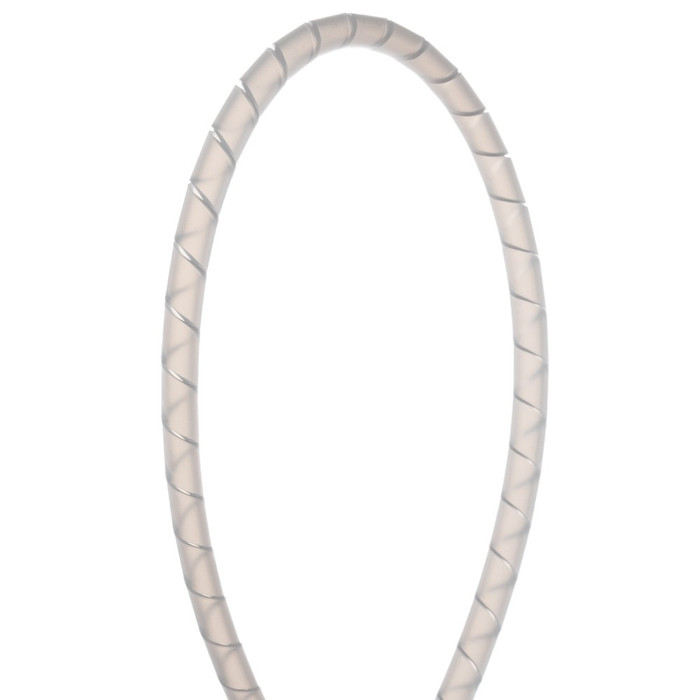

Panduit T75N-T Nylon 6.6 Spiral Wrap, Natural
The Panduit T75N-T Nylon 6.6 Spiral Wrap delivers continuous abrasion protection for wires, cables, hoses, and tubing while harnessing multiple cables into a single manageable bundle. Built from durable Nylon 6.6, this spiral wrap measures 0.75" (19.1 mm) diameter x 200' (61.0 m) long and accommodates a bundle diameter range of 0.625" to 5" (15.9 mm to 127.0 mm). It is UL Recognized and rated for continuous use up to 149°F (65°C), making it a reliable choice for professional wire management applications.
Key Features
- Overall Dimensions: 0.75" (19.1 mm) outer diameter x 200' (61.0 m) long for continuous, long-run coverage.
- Durable Construction: Nylon 6.6 material provides lightweight, flexible, abrasion-resistant protection for wires, cables, hoses, and tubing.
- Spiral Wrap Design: Harnesses multiple cables into a single manageable bundle while allowing breakouts of single or multiple cables at any point.
- Bundle Diameter Range: Accommodates bundles from 0.625" to 5" (15.9 mm to 127.0 mm), suitable for irregular cable shapes.
- Wall Thickness: 1 mm (0.04") wall for consistent abrasion resistance along the full length.
- Operating Temperature: Rated from -40°F to 149°F (-40°C to 65°C) for demanding environments.
- Finish: Natural color, flexible construction for easy installation around irregular shapes.
Certifications & Compliance
- UL Recognized - E141152
- UL94-HB Flammability Rating
- RoHS Compliant
Technical Specifications
- Maximum Operating Temperature (°F): 149
- Minimum Operating Temperature (°F): -40
- Maximum Operating Temperature (°C): 65
- Minimum Operating Temperature (°C): -40
- Wall Thickness (mm): 1
- Overall Length (ft.): 200
- Overall Length (m): 61
- Maximum Bundle Diameter (In.): 5
- Maximum Bundle Diameter (mm): 127
Typical Applications
- Wire and Cable Harnessing in Industrial and Commercial Panels
- Abrasion Protection for Cables, Hoses, and Tubing
- Cable Bundle Management with Multiple Breakout Points
- Equipment and Machinery Wiring Protection
- Panelboard and Control Cabinet Wiring
Why Panduit?
Panduit builds the T75N-T Spiral Wrap from Nylon 6.6 for lightweight, flexible, and abrasion-resistant cable protection that stands up to demanding wire management applications. Backed by UL Recognition and RoHS compliance, this spiral wrap delivers dependable, code-conscious performance for organizing and protecting cable bundles in commercial and industrial settings.
Manufacturer Resources
Product Specs
- Standard Package Volume Ft3:
- 2.4780
- Outer Diameter (In.):
- 0.75
- Maximum Operating Temperature (°F):
- 149
- Wall Thickness (mm):
- 1
- Standard Package Weight Pounds:
- 10.8500
- REACH Status:
- N
- Std. Pkg. UOM:
- Roll
- Overall Length (m):
- 61
- Wall Thickness (In.):
- 0.04
- Std Package Length In:
- 21.4
- Country of Origin:
- United States
- Standard Carton Volume Ft3:
- 0.0000
- Std Package Length MM:
- 543.56
- Mercury Content Indicator:
- N
- Outer Diameter (mm):
- 19.1
- Maximum Bundle Diameter (In.):
- 5
- Std Ctn Qty:
- 0
- Product Segment:
- IEI
- Resistance Properties:
- Abrasion-Resistant
- Product Type:
- Spiral Wrap
- Std Package Width MM:
- 543.56
- Pallet Quantity:
- 20
- Std Package Height In:
- 9.4
- Flammability Rating:
- UL94-HB
- Minimum Operating Temperature (°C):
- -40
- Standard Carton Weight Pounds:
- 0.0000
- Minimum Operating Temperature (°F):
- -40
- Std Package Height MM:
- 238.76
- Min Order Qty:
- 1.0000
- Maximum Bundle Diameter (mm):
- 127
- RoHS Compliant:
- Compliant
- GTIN Package:
- 00074983705870
- Min. Order UOM:
- Roll
- ARRA Compliant:
- Y
- Maximum Operating Temperature (°C):
- 65
- Std. Pkg. Qty.:
- 1
- Overall Length (ft.):
- 200
- Minimum Bundle Diameter (In.):
- 0.62
- UOM EA PK:
- EA
- Pallet Volume:
- 0.000000
- Std Package Width In:
- 21.4
- Minimum Bundle Diameter (mm):
- 15.9
- Hazardous Material Flag:
- N
- Any Reason Not to Sell:
- N
- Pallet Weight:
- 217.0000
- Product Material:
- Nylon 6.6
- Product Color:
- Natural
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Cable Management
Panduit T75N-T – Frequently Asked Questions
1) Can this spiral wrap be used outdoors or in a cold warehouse?
Rated -40 to 149 degrees F (-40 to 65 degrees C) for continuous use, so unheated warehouses, cold storage and equipment enclosures are within range. It is not the part for high heat runs near steam lines or engine compartments that exceed 149 F.
2) Is the Panduit T75N-T spiral wrap UL listed and RoHS compliant?
It is UL Recognized under file E141152 and carries a UL94-HB flammability rating. It is also RoHS compliant. For specifications that call for a self-extinguishing V-0 material, HB will not satisfy that line item.
3) How much spiral wrap comes on a roll of Panduit T75N-T?
One roll, 200 feet (61 m), and a roll is the minimum order. That is a single continuous length you cut to suit, so a panel shop can pull short pieces for individual harnesses off the same roll.
4) Should I use spiral wrap or split loom tubing for a cable harness with branch-offs?
Spiral wrap is the choice when cables leave the bundle at different points. The T75N-T spiral lets you break out a single cable or a group anywhere along the run without cutting or terminating the wrap, and it conforms to irregular bundle shapes. Loom or braided sleeving is better when the whole bundle runs point to point with no mid-run exits and you want full enclosure.
5) What is this spiral wrap made of, and will it hold up against rubbing on sheet metal edges?
Nylon 6.6 with a 1 mm (0.04 in) wall, and abrasion resistance is its stated property. That wall runs the full length, so cables passing through a panel cutout or over a machine frame get the same protection everywhere along the wrap.
6) Is the Panduit T75N-T made in the USA and does it meet Buy American requirements for a federal job?
Country of origin is the United States and the part is flagged ARRA compliant, which is what a government or institutional procurement office typically needs on the submittal. It is also non-hazardous and mercury free.
7) What color is the T75N-T spiral wrap?
Natural, meaning the uncolored nylon. It is the standard choice for panel and machine wiring where you are not color coding circuits by wrap; if the job calls for black for UV exposure or identification, natural is not that part.
8) How big is the shipping package for a roll of T75N-T, and how many fit on a pallet?
A single roll ships as one package measuring 21.4 x 21.4 x 9.4 inches at 10.85 pounds. Twenty rolls make a pallet. Useful if you are staging material in a stockroom or planning dock space on a multi-roll order.
