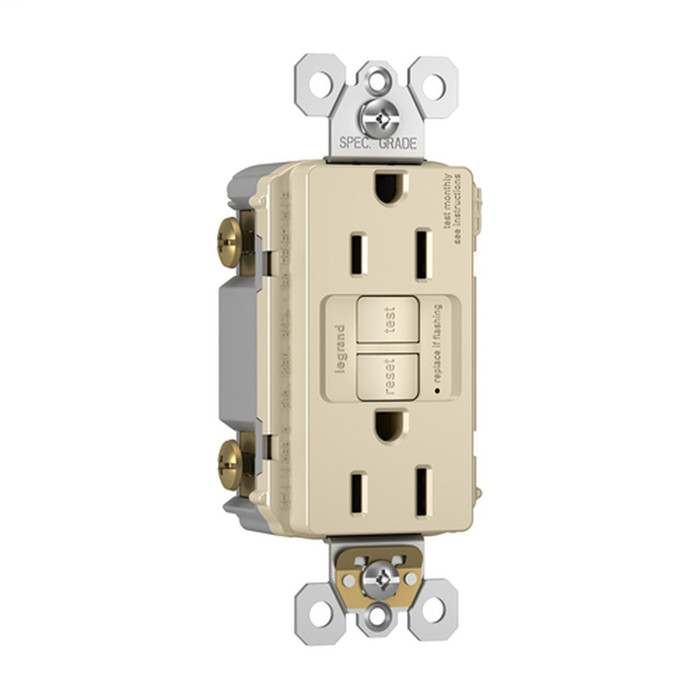

Pass & Seymour 1597 Series 15A 125V Self-Test Tamper-Resistant GFCI Receptacle

Pass & Seymour 1597 Series 15A 125V Self-Test Tamper-Resistant GFCI Receptacle

The Pass & Seymour 1597 Series is a 15A, 125VAC Self-Test Tamper-Resistant GFCI Receptacle that runs an automatic self-test every three seconds to confirm it is ready to protect. If the device fails its self-test, the red LED indicator light flashes to signal replacement is needed, and the SafeLock™ Protection feature disconnects power to the receptacle if critical components are damaged and ground-fault protection is lost. Rated Class A with a 10kA short circuit rating and UL Listed to UL498, this GFCI meets National Electrical Code® Tamper-Resistant requirements and is FSUL Listed per Federal Specification WC596.

Key Features

• Electrical Rating: 15A, 125VAC, 60 Hz with a Supply Voltage Range of 102-132 VAC for reliable receptacle protection.
• Feed-Thru Protection: 20 Amp feed-thru capacity allows the GFCI to protect downstream receptacles on the same circuit.
• Durable Construction: High-impact-resistant thermoplastic housing with an extra-long strap for secure box mounting.
• Fast Trip Response: 0.025 sec. nominal trip time per UL Standard with a Trip Threshold of 5 +/- 1 mA and 10kA short circuit rating.
• Tamper-Resistant Shutters: Patented shutter system helps prevent improper insertion of foreign objects, meeting NEC Tamper-Resistant requirements.
• Self-Test Monitoring: Automatic self-test every three seconds with a red LED trip indicator light and SafeLock™ Protection that disconnects power if protection is lost.
• Flexible Wiring: Two back-wire holes per terminal with side or internal screw-pressure-plate back wire for #10-#14 AWG solid or stranded copper wire.
• Miswire Protection: Prevents line-load reversal miswire, cutting power to the face and downstream receptacles if wired incorrectly.

Certifications & Compliance

• UL Listed (UL498)
• cULus Listed
• Meets 2015 UL requirements and exceeds UL 943 voltage surge requirements
• FSUL Listed per Federal Specification WC596
• Meets National Electrical Code® Tamper-Resistant requirements

Technical Specifications

• CSA Listed: No
• UL Listed: Yes
• Volts: 125
• cULus: Yes
• Federal Spec: Yes

Typical Applications

• Kitchen, Bathroom, and Laundry Receptacle Circuits
• Commercial and Residential Electrical Installations
• Feed-Thru Protection of Downstream Receptacles
• Renovation and New Construction Wiring
• Child-Safe Tamper-Resistant Applications

Why Pass & Seymour?

Pass & Seymour engineers the 1597 Series with high-impact-resistant thermoplastic construction, a 10kA short circuit rating, and SafeLock™ Protection to deliver dependable, code-compliant ground-fault protection. Backed by UL Listing to UL498 and FSUL Listing per Federal Specification WC596, this GFCI receptacle is built for reliable performance in demanding professional electrical installations.
