Pass & Seymour 25414 Power Interrupting Connector, Metallic

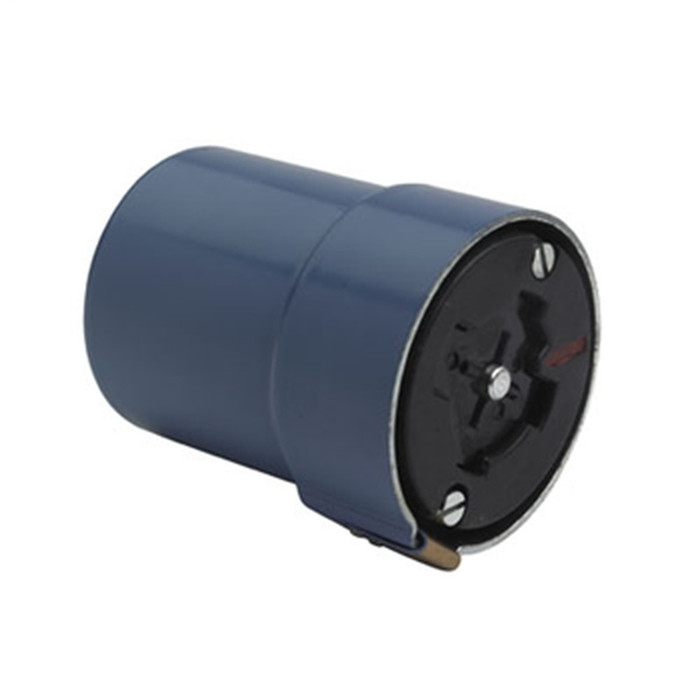

The Pass & Seymour 25414 Power Interrupting Connector is a heavy-duty 4-pole, 5-wire metallic connector built for demanding power distribution applications. Rated 30A/600VAC and 20A/250VDC, this connector is UL Listed and constructed for reliable, code-compliant performance in commercial and industrial power interrupting circuits.

Key Features

  • Configuration: 4-pole, 5-wire design for multi-circuit power interrupting connections.
  • Durable Construction: Metallic housing built for strength and long service life in demanding electrical environments.
  • Type: Power Interrupting Connector designed to safely make and break load under rated conditions.
  • Electrical Ratings: Rated 30A/600VAC and 20A/250VDC for versatile power distribution use.
  • Country of Origin: Manufactured in the United States of America and Buy American Act compliant.

Certifications & Compliance

  • UL Listed
  • Buy American Act Compliant

Technical Specifications

  • CUL Listing No: No
  • Volts (AC): 600
  • UL Listing No: Yes
  • CSA Listing Info: No
  • Amps: 30A
  • cURus: No
  • Number Of Wires: 5
  • cULus: No
  • UR: No
  • Federal Spec: No

Typical Applications

  • Commercial and Industrial Power Distribution
  • Power Interrupting and Load-Break Circuits
  • Multi-Pole, Multi-Wire Connection Points
  • Panelboard and Equipment Power Feeds
  • Renovation and New Construction Electrical Work

Why Pass & Seymour?

Pass & Seymour engineers the 25414 Power Interrupting Connector with quality materials and a time-tested, durable design for dependable performance under real-world electrical loads. Backed by UL Listing and Buy American Act compliance, it delivers the reliable, code-compliant power connection professionals expect from Pass & Seymour for commercial and industrial installations.

Manufacturer Resources

Product Specs

list_batch:
PASS-20260820
Product Type:
Power Interrupting Connector
Voltage Rating:
600V
Amperage Rating:
30A
Listing:
UL Listed
Country Of Origin:
United States
Product Material:
Metallic
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors

Pass & Seymour 25414 – Frequently Asked Questions

1) What amperage and voltage is the Pass & Seymour 25414 connector rated for?
The Pass & Seymour 25414 power interrupting connector carries a 30A rating at 600VAC, and 20A at 250VDC. That 600V AC rating is what lets it be used on 480V three-phase feeds, not just 120/208V branch work. Size your conductors and overcurrent protection to the 30A limit, not to the connector body size.
2) Is the Pass & Seymour 25414 a 3-phase connector, and how many wires does it take?
It is a 4-pole, 5-wire device, so it terminates three phase conductors plus a neutral plus a ground. That is the configuration for a 3-phase, 4-wire grounded system. If your feed is single phase or 3-phase 3-wire without a neutral, you are buying more poles than you need and should look at a 2-pole 3-wire or 3-pole 4-wire connector instead.
3) Can you break load with the 25414, or does the circuit have to be de-energized first?
This is a power interrupting connector, which means it is built to make and break load under its rated conditions, 30A/600VAC. That is the difference between it and a standard pin-and-sleeve or plug-and-receptacle pair that is rated for connection only and must be switched dead before uncoupling. For equipment that gets disconnected under load, that interrupting capability is the reason to spec this type.
4) Does the 25414 connector meet Buy American requirements for a federal or public works job?
The 25414 is manufactured in the United States and the product data states Buy American Act compliance, which is what procurement on federal, military and many state or municipal projects will ask you to document. It is also UL Listed, which covers the AHJ side of the inspection.
5) Is the Pass & Seymour 25414 UL Listed, and is it CSA approved for Canadian work?
UL Listed, yes. For Canada, the product data shows no CSA listing and no cUL or cULus mark on the 25414, so if the job is in Canada and the inspector wants a Canadian certification mark, this is not the device to specify.
6) Is the Pass & Seymour 25414 housing metal or plastic?
Metallic. The 25414 uses a metal housing rather than a thermoplastic or nylon body, which is what you want where the connector takes mechanical abuse, gets stepped on, or hangs off equipment in an industrial bay. In corrosive or washdown areas a nonmetallic body is often the better choice, so weigh the environment before standardizing on it.
7) Where does a 4-pole 5-wire interrupting connector like this get used on a commercial job?
Typical placements are panelboard and equipment power feeds, multi-pole multi-wire connection points, and load-break circuits in commercial and industrial power distribution, including both renovation and new construction. The usual reason to pick it over hard-wiring is equipment that has to be disconnected and reconnected without pulling terminations, with the 30A/600V rating setting the ceiling on what it can feed.
