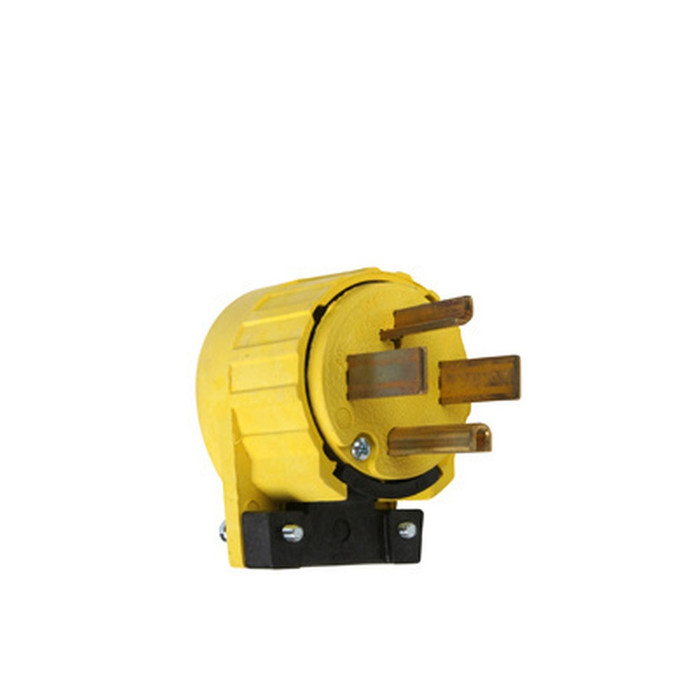

Pass & Seymour 30A 125/250V Angle Plug, Yellow

Pass & Seymour 30A 125/250V Angle Plug, Yellow

(No reviews yet) Write a Review

Model: 5746-AN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$122.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour 30A 125/250V Angle Plug, Yellow

The Pass & Seymour 30A 125/250V Angle Plug, Yellow is built for demanding industrial and commercial power connections where a compact, angled cord-and-plug design is required. Rated 30A at 125/250V, this plug is manufactured with quality materials and a time-tested design, conforms to NEMA WD-1 and WD-6 dimensional standards, and is cULus Listed for verified safety performance. The yellow housing makes it easy to identify on job sites and in industrial cord-set assemblies.

Key Features

  • Amperage & Voltage Rating: Rated 30A, 125/250V for demanding industrial and commercial power circuits.
  • Angled Body Design: Space-saving angle configuration suited for tight installation clearances and cord routing.
  • Durable Construction: Quality materials and a time-tested design deliver long-term durability in the field.
  • Code Compliance: Conforms to NEMA WD-1 and WD-6 standards for dimensional and performance requirements.
  • Color: Yellow housing for quick visual identification on the job site.

Certifications & Compliance

  • cULus Listed
  • Conforms to NEMA WD-1
  • Conforms to NEMA WD-6

Technical Specifications

  • Product Line: Pass & Seymour
  • Amperage / Voltage: 30A, 125/250V
  • Country of Origin: Mexico
  • Packaging: 60 EA per carton

Typical Applications

  • Industrial and Commercial Power Distribution
  • Portable Cord and Plug Assemblies
  • Heavy-Duty Equipment Connections
  • Wet and Demanding Job Site Environments
  • Renovation and New Construction Wiring

Why Pass & Seymour?

Pass & Seymour engineers this angled plug with quality materials and a time-tested design, backed by cULus Listing and conformance to NEMA WD-1 and WD-6 standards. Electrical professionals can depend on this 30A, 125/250V angle plug for consistent, code-compliant performance in the toughest industrial and commercial environments, where reliable power connections directly impact job site safety and uptime.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
Straight Blade Plug
Voltage Rating:
125/250V
Amperage Rating:
30A
Listing:
cULus
Standards:
NEMA WD-1 and WD-6
Product Color:
Yellow
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors

Pass & Seymour 5746-AN – Frequently Asked Questions

1) Will the Pass & Seymour 5746-AN angle plug work on a 125/250V circuit for a dryer or welder cord?
The 5746-AN is rated 30A at 125/250V, so it is built for two-pole 125/250V cord-and-plug loads at 30 amps or less, which is the range portable heavy equipment and appliance cords fall into. It is a cord-end plug, not a receptacle, so you still need a matching 30A 125/250V receptacle or connector body on the supply side. Match the blade configuration to the outlet you are plugging into before you wire it up.
2) Is the Pass & Seymour 5746-AN plug UL listed for commercial and industrial work?
It is cULus Listed, which covers both US and Canadian requirements, and it conforms to NEMA WD-1 and WD-6 dimensional and performance standards. For an inspector or a spec that calls for a listed wiring device with NEMA-conforming dimensions, that is the documentation you need.
3) What should I use instead of the Pass & Seymour 5746-AN in a patient care area?
The 5746-AN is an industrial and commercial angle plug rated 30A, 125/250V and is not a hospital grade device. For patient care spaces, the Bryant 8395T is an angle hospital-grade plug in NEMA 5-20P configuration, and the Bryant 8266T is a hospital grade plug in NEMA 5-15P. Match the amperage and configuration of the equipment cord you are terminating.
4) I need a 50A plug, not the 30A Pass & Seymour 5746-AN. What is the option?
The 5746-AN is rated 30A at 125/250V. For a higher amperage cord set, the Bryant 7516NC is a rubber electrical plug in the NM10-50P series. Verify the receptacle configuration on the equipment or feeder before ordering, since a 50A device will not mate with a 30A receptacle.
5) Why choose an angle plug instead of a straight blade plug?
The angled body turns the cord off to the side as it leaves the plug, so it works where a straight plug would stick out too far from the wall or get the cord kinked, and it takes strain off the cord exit. If you have clearance behind equipment and want the simpler profile, a straight blade plug like the Leviton 5666-C industrial grade plug is the alternative. For a four-wire three-pole angle plug instead of this two-pole arrangement, the Leviton 275-E is a commercial grade angle plug.
6) Is this plug suitable for outdoor or wet job site use?
It is called out for wet and demanding job site environments as part of portable cord assemblies, but it is not a watertight device. If the connection will sit in standing water or be hosed down, use a watertight plug instead, such as the Bryant 8666TSP watertight plug.
7) Is the Pass & Seymour 5746-AN tamper-resistant?
The 5746-AN is a 30A 125/250V angle plug that is cULus Listed and conforms to NEMA WD-1 and WD-6; tamper resistance is a feature of other devices. If you need tamper-resistant plugs, the Leviton 8215-CAT is a tamper-resistant hospital-grade plug in NEMA 5-15P and the Leviton 8315-CT is the tamper-resistant hospital-grade NEMA 5-20P version, both supplied in packs of 100.
8) What is the difference between the Pass & Seymour 5746-AN and the Leviton 5666-C plug?
The Pass & Seymour 5746-AN is an angle-body plug rated 30A at 125/250V, cULus Listed and conforming to NEMA WD-1 and WD-6. The Leviton 5666-C is a straight blade plug in a 3-wire 2-pole polarized industrial grade build for 250-volt single-phase service. The angle body routes the cord along the wall, while the straight body projects out from the receptacle.
9) Can I use the Eaton Arrow Hart AH5266 in place of the Pass & Seymour 5746-AN?
No. The Eaton Arrow Hart AH5266 Ultra Grip is a straight blade plug rated 15A 125V in an industrial specification grade build, while the Pass & Seymour 5746-AN is a 30A 125/250V angle plug. The amperage and voltage ratings differ, so the two are not interchangeable on the same cord set or receptacle.
10) Does the yellow color mean anything electrically, or is it just for identification?
It is purely visual. The yellow housing is there so the plug stands out on a job site or in a bin of cord sets, which helps when you are keeping 30A 125/250V assemblies separate from 15A and 20A cords. The electrical rating is set by the 30A 125/250V marking and the blade configuration, not the color.
