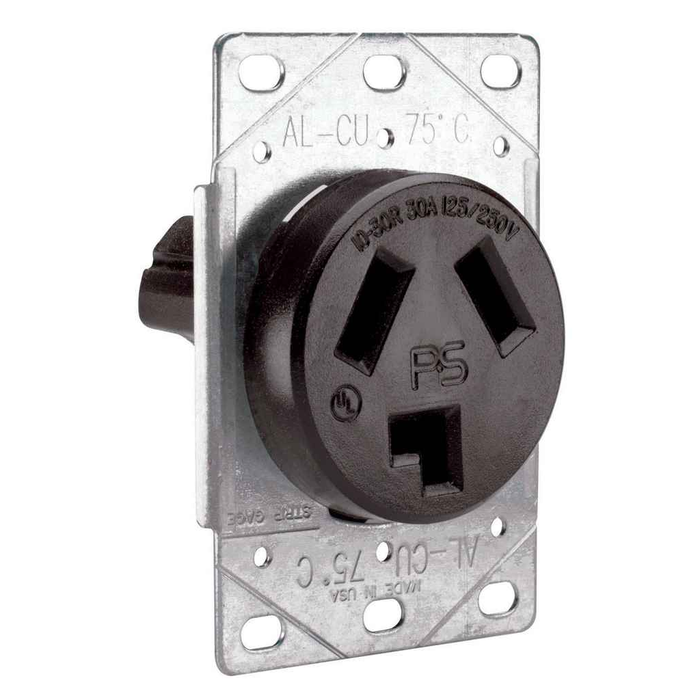

Pass & Seymour 3860 30A 125/250V 10-30R Straight Blade Receptacle, 3-Pole 3-Wire Black

Pass & Seymour 3860 30A 125/250V 10-30R Straight Blade Receptacle, 3-Pole 3-Wire Black

(No reviews yet) Write a Review

Model: 3860

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.66
$9.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour 3860 30A 125/250V 10-30R Straight Blade Receptacle, 3-Pole 3-Wire Black

The Pass & Seymour 3860 30A 125/250V 10-30R straight blade flush receptacle delivers reliable power distribution for demanding electrical applications. This UL Listed 3-pole, 3-wire receptacle features a durable black finish and flush mounting design, engineered to handle 30-amp loads at dual voltage ratings of 125/250V. Built with quality materials and time-tested design principles, this receptacle provides dependable performance for professional installations requiring robust power connections.

Key Features

  • 30A Current Rating: Handles high-amperage loads safely and efficiently for demanding electrical equipment and appliances.
  • 125/250V Dual Voltage: Accommodates both standard and higher voltage applications with versatile power distribution capability.
  • 10-30R Configuration: NEMA standard straight blade design ensures proper mating with compatible plugs and reliable electrical connections.
  • 3-Pole 3-Wire Design: Provides proper grounding and phase separation for safe operation of connected equipment.
  • Flush Mount Design: Clean, professional appearance with secure wall mounting for permanent installations.
  • Durable Black Finish: Resistant construction maintains appearance and performance in demanding environments.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial Kitchen Equipment
  • Industrial Machinery Connections
  • Heavy-Duty Appliance Installations
  • Workshop and Manufacturing Facilities
  • Professional Service Areas
  • High-Amperage Equipment Connections

Why Pass & Seymour?

Pass & Seymour delivers proven reliability through time-tested design principles and quality materials construction. This UL Listed receptacle provides the durability and performance standards required for professional electrical installations, backed by the trusted Pass & Seymour commitment to electrical safety and dependable operation. The 3860's 30A, 125/250V, 10-30R configuration and 3-pole 3-wire design make it a dependable choice wherever heavy-duty straight blade power connections are required.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Receptacle
Product Color:
Black
Voltage Rating:
125/250V
Amperage Rating:
30A
Configuration:
10-30R
Listing:
UL Listed
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Product Height:
3.75 in
Product Depth:
1.9 in
Product Width:
2.5 in

Pass & Seymour 3860 – Frequently Asked Questions

1) Can I use the Pass & Seymour 3860 on an existing 3-wire dryer circuit without a separate ground wire?
Yes, that is exactly what it is built for. The 3860 is a 3-pole 3-wire 10-30R rated 30A at 125/250V, so it lands two hots and a combined neutral/ground conductor, which is how pre-1996 dryer circuits were run. If you are pulling new wire, code today calls for a 4-wire circuit and a 14-30R instead.
2) I need a 30A outlet for a piece of shop equipment. Is the 3860 the right pick, or do I need a locking receptacle?
The 3860 is a straight blade device: the plug pulls straight out, which is fine for a dryer, range-type appliance, or stationary kitchen equipment that never gets bumped. For machinery where cord tension or vibration could unseat the plug, use a twist-lock instead. In that family ZenSupply carries the Eaton 7379 industrial locking receptacle, rated 50A at 600V/250V AC/DC in black.
3) Can I put the Pass & Seymour 3860 on a 20-amp circuit?
No. It is a 30A device and the branch circuit, wire, and breaker all have to suit the 30A load it serves. If the circuit is 20A, use a 20A device such as the Leviton 16352-1PW commercial grade 20A 125V NEMA 5-20R duplex or the Bryant 5362B heavy-duty 20A/125V duplex.
4) Is the Pass & Seymour 3860 suitable for a hazardous or classified area?
The 3860 is a UL Listed flush-mount straight blade receptacle intended for standard commercial and industrial interiors such as kitchens, workshops, and machinery connections. It is not an explosionproof device. Where the area classification calls for one, the Appleton FSQC series interlocked explosionproof receptacle is the type of device specified, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is a 3-pole factory-sealed option. Those are built around enclosure and sealing requirements the 3860 does not address.
5) What should I use instead of the Pass & Seymour 3860 if the equipment cord has a twist-lock plug?
The Pass & Seymour 3860 is a straight blade device in the 10-30R pattern, so a twist-lock cord cap will not engage it. For a locking connection, the Eaton 7379 is an industrial locking receptacle rated 50A at 600V/250V AC/DC in black. Match the receptacle to the exact cap configuration on the equipment cord before ordering, since locking and straight blade patterns are not interchangeable in either direction.
6) Is the Pass & Seymour 3860 a flush-mount outlet or a surface-mount box receptacle?
It is a flush receptacle, meant to mount in a wall box behind a plate for a finished install. If your application is exposed conduit or a machine drop where the device sits on the surface, you want a surface-mount housing or a power-inlet style device instead.
7) Does the 3860's 125/250V rating mean I can feed it from a single-pole 120V circuit?
No. The 125/250V rating on a 10-30R reflects a two-hot supply off a double-pole breaker, giving 250V across the hots and 125V from either hot to the neutral. A single 120V hot will not serve equipment that expects both legs.
8) For a healthcare facility, can the Pass & Seymour 3860 be used at patient-care receptacle locations?
Patient-care areas call for hospital grade devices, and the 3860 is not designated as one. The Leviton 16262-HGW is a hospital grade duplex receptacle in white, supplied in packs of 100 for facility-wide standardization. Keep the 3860 for the 30A 125/250V equipment connections elsewhere in the building, such as kitchen and service area appliance circuits, and specify hospital grade where the code requires it.
9) I need a single outlet rather than a duplex, but on a standard 125V circuit. What is the alternative to the Pass & Seymour 3860?
The 3860 is a single-outlet device, but it is a 30A 125/250V 10-30R configuration, so it only suits a dedicated dual-voltage appliance circuit. On an ordinary 125V branch circuit where you still want one outlet rather than two, the Eaton 816W is a commercial specification grade single receptacle rated 15A, and the Eaton 6450W is a heavy-duty industrial specification grade decorator single receptacle accepting #14-10 AWG conductors.
10) Does the Pass & Seymour 3860 work for a 277V motor control connection?
No. The 3860 is rated 125/250V in a 3-pole 3-wire 10-30R straight blade pattern. For a 277V connection, the Bryant 430R9W from the 4750DR series is a 2-pole 3-wire 277V motor-duty receptacle. The voltage ratings and pole and wire counts differ, so the two are not interchangeable on either circuit.
11) Where is the Pass & Seymour 3860 made, and what part number do I order?
Order it as Pass & Seymour 3860. Country of origin on our record is China. That is the full manufacturer part number for the 30A 125/250V 10-30R black device, so no suffix or option code is needed.
12) What if I need more outlet positions at a workstation than the Pass & Seymour 3860 provides?
The 3860 provides one 30A 125/250V 10-30R outlet, which is intended for a single heavy appliance or machine cord on a dedicated circuit. Where a workstation needs several 125V positions instead, the Bryant 21254IGO is a quad straight-blade receptacle in NEMA 5-20R rated 20A, and the Leviton 16352-1PW is a commercial grade heavy-duty straight blade duplex in 20A 125V NEMA 5-20R. Those serve general equipment plugs; the 3860 stays on its own dedicated feed.
13) The Pass & Seymour 3860 is black. What are the options if the specification calls for a lighter device color?
The 3860 is supplied in black, which suits equipment rooms, kitchens, and shop areas where a dedicated 30A 125/250V appliance outlet is being installed. The comparable straight blade devices in lighter colors are all standard 125V types rather than 10-30R: the Eaton 5262W heavy-duty industrial duplex is 15A 125V 5-15R in gray, and the Leviton 16342 Decora Plus commercial grade duplex is 20A 125V NEMA 5-20R in white. Color cannot substitute for configuration, so the 10-30R circuit still takes the 3860.
14) For high-abuse areas, how does the Pass & Seymour 3860 compare with impact-resistant commercial receptacles?
The 3860 is a UL Listed flush-mount 30A 125/250V device built for heavy-duty straight blade power connections in workshops, manufacturing facilities, and commercial kitchens. Where the concern is physical abuse on general 125V outlets rather than high-amperage capacity, the Leviton 16251W is a commercial grade heavy-duty impact-resistant straight blade receptacle. The two address different circuits, so in a shop it is common to carry the 3860 for machine feeds and an impact-resistant commercial device for the convenience outlets.
15) What color is the Pass & Seymour 3860 and does it matter for matching the other outlets in the building?
Black. On 30A 10-30R devices black is the normal industrial/appliance color, so it will not match ivory or white 15A and 20A duplexes on the same wall, but those are different configurations anyway and nobody specs a 10-30R for appearance.
