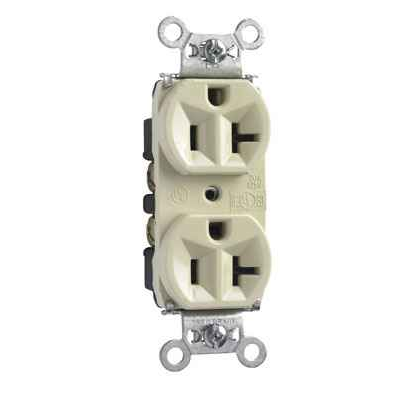

Pass & Seymour 5362I 20A 125V Hard Use Spec-Grade Duplex Receptacle, Ivory

Pass & Seymour 5362I 20A 125V Hard Use Spec-Grade Duplex Receptacle, Ivory

(No reviews yet) Write a Review

Model: PAS-5362-I

In Stock (leaves warehouse same day if ordered before 3pm ET)

$60.27
$6.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour 5362I 20A 125V Hard Use Spec-Grade Duplex Receptacle, Ivory

The Pass & Seymour 5362I 20A 125V Hard Use Spec-Grade Duplex Receptacle delivers professional-grade power distribution for demanding commercial and industrial applications. Rated 20A 125V and finished in Ivory, this hard use spec-grade device combines a corrosion-resistant plated steel strap, impact-resistant nylon face, and dual back and side wire terminals for flexible, code-compliant installation. It is cULus Listed, making it suitable for commercial and industrial electrical work where durability and safety are essential.

Key Features

  • 20A 125V Rating: Handles high-current loads safely, delivering robust electrical capacity for demanding equipment and appliances.
  • Hard Use Spec-Grade Construction: Reinforced components and impact-resistant materials withstand frequent use and harsh conditions.
  • Corrosion-Resistant Steel Strap: Plated and tabbed steel strap locks into the face and back body assembly, preventing separation under stress.
  • Dual Wiring Options: Back and side wire terminals with an 8-hole internal screw-pressure-plate system accept #10-#14 AWG conductors for installation flexibility.
  • Auto-Ground Clip: Ensures a positive grounding connection for enhanced electrical safety and code compliance.
  • Impact-Resistant Nylon Face: Withstands physical abuse while maintaining a professional appearance and reliable functionality.
  • Matte Ivory Finish: Clean, professional matte ivory finish measuring 2.635 in height, 1.32 in width, and 0.78 in depth.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial Office Buildings
  • Industrial Facilities
  • Healthcare Facilities
  • Educational Institutions
  • Retail Establishments
  • Workshop and Laboratory Environments

Why Pass & Seymour?

Pass & Seymour backs this Hard Use Spec-Grade Duplex Receptacle with cULus Listed certification and rugged construction, including a corrosion-resistant plated steel strap and impact-resistant nylon face rated for continuous operation from -40°C to +60°C. The reinforced steel strap design and isolated terminal compartments deliver long-term durability and safe, code-compliant performance in demanding commercial and industrial electrical environments.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Duplex Receptacle
Product Color:
Ivory
Product Finish:
Matte
Voltage Rating:
125V
Amperage Rating:
20A
Listing:
cULus
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Product Height:
2.635 in
Product Depth:
0.78 in
Product Width:
1.32 in

Pass & Seymour PAS-5362-I – Frequently Asked Questions

1) What wire gauge will the Pass & Seymour 5362I receptacle accept, and can I back wire it?
The 5362I takes #10 through #14 AWG conductors through an 8-hole internal screw-pressure-plate system, and it is both back wire and side wire, so you can run straight through the back holes or wrap the side screws. That #10 capacity matters on a 20A circuit where the designer called for a heavier conductor or a long home run.
2) Is the Pass & Seymour 5362I a 20 amp receptacle I can put on a dedicated 20A branch circuit?
Rated 20A at 125V, so it is the correct device for a 20 amp branch circuit feeding equipment, benches, or appliance loads. A 15A device on that circuit would not accept a 20A plug blade.
3) Is the 5362I tough enough for a shop, loading dock, or unheated space?
It is built as a hard use spec-grade device: plated corrosion-resistant steel strap tabbed into the face and back body so the assembly cannot separate under plug stress, impact-resistant nylon face, and isolated terminal compartments. Rated for continuous operation from -40C to +60C, so unheated warehouses and cold docks are within range.
4) What is the closest alternative to a Pass & Seymour 5362I if I need another brand?
The Bryant 5362BI is the direct counterpart, a 20A/125V heavy-duty duplex receptacle carrying the same numeric designation in ivory. The Bryant 5362B series is the same heavy-duty device in another color. If you want commercial grade rather than heavy-duty, the Leviton 16352-1PW is a 20A 125V NEMA 5-20R duplex.
5) Can I use the Pass & Seymour 5362I in a patient care area, or do I need a hospital grade device?
The 5362I is a hard use spec-grade duplex receptacle listed cULus and is commonly used in healthcare facilities for general areas, but it is not a hospital grade device. Where the drawing calls for hospital grade, use the Leviton 16262-HGW hospital grade duplex receptacle in white instead. That is a different product class, not a finish variation, so confirm which the specification requires before substituting either way.
6) What is the closest cross-brand equivalent to the Pass & Seymour 5362I 20A 125V duplex receptacle?
The Bryant 5362BI is the closest match - it is a 20A/125V heavy-duty duplex receptacle, the same amperage and voltage rating as the Pass & Seymour 5362I, and it uses the same 5362 catalog numbering convention. The Bryant 5362B is the same heavy-duty 20A/125V duplex device in the 5362B series if you are matching body style rather than the ivory color of the 5362I.
7) I need a 20A 125V duplex receptacle in white instead of ivory - what should I use?
The Leviton 16352-1PW is a commercial grade heavy-duty straight blade duplex receptacle rated 20A 125V NEMA 5-20R, so it covers the same circuit as the Pass & Seymour 5362I, which is supplied in ivory. If you want a decorator-style face on the same 20A 125V NEMA 5-20R circuit, the Leviton 16342 Decora Plus commercial grade duplex is the white alternative.
8) Will the Pass & Seymour 5362I work in a hazardous or wet industrial location?
The 5362I is a hard use spec-grade duplex receptacle for commercial and industrial interiors, cULus Listed, with a plated steel strap and impact-resistant nylon face. It is not an explosionproof or factory-sealed device. For classified areas use the Appleton FSQC Series interlocked explosionproof receptacle, or the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set for a 3-pole corded connection. Those are not interchangeable with a standard duplex in a wall box.
9) My load is 277V or a 50A locking connection - is the 5362I the wrong device?
Yes. The Pass & Seymour 5362I is rated 125V at 20A on a straight blade duplex face. For a 277V 2-pole 3-wire motor-duty connection use the Bryant 430R9W 4750DR receptacle, and for a high-amperage twist-lock connection the Eaton 7379 industrial locking receptacle is rated 50A at 600V/250V AC/DC in black. None of those share the 5362I configuration, so the mating plug or cord cap has to change with the device.
10) Will the ivory 5362I match the other ivory devices and plates already in my building?
The color is ivory in a matte finish, which is the standard commercial ivory used across Pass & Seymour wiring devices, so it lines up with ivory switches and wall plates on adjacent openings. If your building is standardized on white or gray, this specific device is the ivory version and you would need the matching color code instead.
11) Does this receptacle self-ground in a metal box, or do I still need a bonding jumper?
An auto-ground clip is built in, which establishes a positive ground path to a properly grounded metal box through the mounting strap. Good practice on a grounded metal box; in a nonmetallic box the equipment grounding conductor still lands on the green screw.
12) I need four outlets at one workstation. Is a duplex like this the right choice?
The 5362I gives you two outlets in a single gang. If you need four in one box, a quad device such as the Bryant 21254IGO NEMA 5-20R quad receptacle covers it in one opening instead of ganging two duplexes.
13) Will the 5362I work in a hazardous or wash-down location?
No. It is a standard flush-mount duplex device for dry interior boxes, with no sealing or explosionproof construction. For classified areas use a factory-sealed or explosionproof device such as the Appleton U-Line ECS plug and receptacle set or the Appleton FSQC Series interlocked explosionproof receptacle.
14) I need a single 20A outlet rather than a duplex - what can I substitute for the 5362I?
The Pass & Seymour 5362I is a duplex device, two outlets in one strap. If the equipment requires a dedicated single outlet, the Eaton 6450W is a heavy-duty industrial specification grade decorator single receptacle accepting #14-10 AWG, and the Eaton 816W is a commercial specification grade single receptacle rated 15A. Confirm the amperage required by the load before picking between the two.
15) I need four 20A outlets at one location - is there an alternative to installing two 5362I receptacles?
The Bryant 21254IGO is a quad straight-blade receptacle, NEMA 5-20R, 20A, which gives four 20A outlets in a single device rather than two duplex devices. The Pass & Seymour 5362I is a duplex, giving two outlets per device, with back and side wire terminals accepting #10-#14 AWG. Check your box volume and plate opening before switching, since a quad device needs a two-gang opening.
16) What is the difference between the Pass & Seymour 5362I and the Leviton 16251W or 16352-1PW commercial grade receptacles?
All three are straight blade duplex receptacles for commercial use. The 5362I is a hard use spec-grade device rated 20A 125V with a plated and tabbed steel strap, impact-resistant nylon face, an 8-hole screw-pressure-plate terminal system for #10-#14 AWG, and an auto-ground clip, supplied in matte ivory. The Leviton 16352-1PW is a commercial grade heavy-duty straight blade duplex rated 20A 125V NEMA 5-20R, and the Leviton 16251W is a commercial grade heavy-duty impact-resistant straight blade receptacle. Choose by the grade wording on your specification and the color you are matching.
17) What are the dimensions of the Pass & Seymour 5362I device body?
The device measures 2.635 by 1.32 by 0.78 inches (height, width, depth as published), which is standard duplex geometry for a single-gang box and standard duplex wall plate.
18) Where is the Pass & Seymour 5362I made?
Country of origin is Mexico. Buyers with domestic-content or trade-agreement requirements on a government or institutional order should weigh that before specifying.
