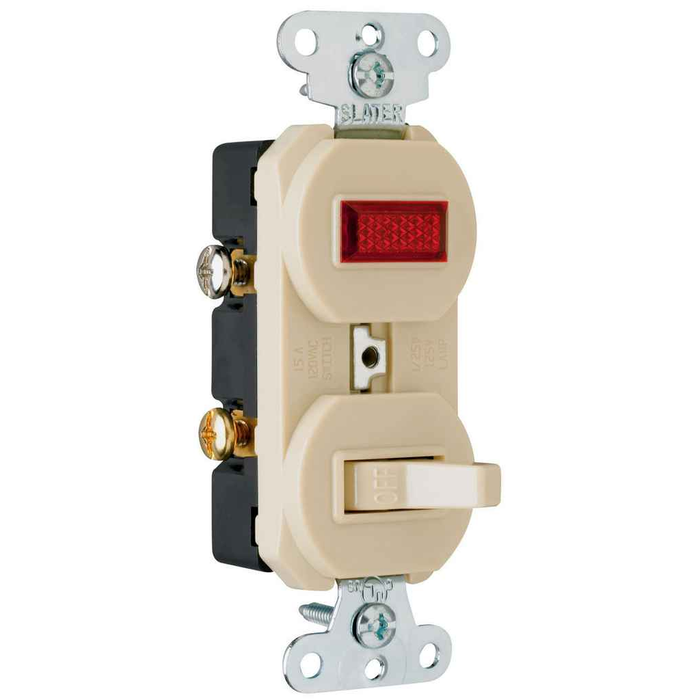

Pass & Seymour 692IG Single-Pole Switch with Pilot Light, Ivory Thermoplastic
The Pass & Seymour 692IG is a single-pole combination switch and pilot light in ivory thermoplastic, built to control a circuit while providing a visible indication of equipment or circuit status. It combines two devices into the footprint of one, making it ideal for switch boxes with limited space. The unit is cULus Listed and side-wires #12 and #14 AWG conductors for straightforward installation.
Key Features
- Space-Saving Design: Two devices — a single-pole switch and a pilot light — fit into the space of one, conserving room in the wiring box.
- Long-Life Pilot Light: Features a long-life red neon lamp rated 1/25 Watt, 125V for clear, durable status indication.
- Flexible Feed Options: Easily accessible break-off tab allows for separate or common feed configuration.
- Wiring Compatibility: Side wire terminals accept #12 and #14 AWG conductors.
- Shutter Protection: Tamper-resistant version features a dual mechanical shutter system to help prevent insertion of foreign objects.
- Code Compliance: Grounding combination devices meet NEC requirements.
- Durable Construction: Molded in ivory thermoplastic with a satin finish for a clean, professional appearance.
Certifications & Compliance
- cULus Listed
- Meets NEC Requirements for Grounding Combination Devices
Technical Specifications
- Country Of Origin: Mexico
- Product Finish: Satin
- Product Height: 4.06 in
- Product Line: Pass & Seymour
- Product Material: Thermoplastic
- Product Width: 1.32 in
- Product Depth: 1.15 in
Typical Applications
- Single-Pole Switching with Visual Circuit Status Indication
- Utility Rooms, Workshops, and Garages Needing an On/Off Indicator
- Space-Constrained Wiring Boxes Requiring a Combination Device
- Commercial and Residential New Construction
- Renovation and Retrofit Electrical Projects
Why Pass & Seymour?
Pass & Seymour combination devices are engineered to meet NEC grounding requirements and are cULus Listed for verified safety performance. The durable ivory thermoplastic housing and long-life neon pilot light deliver dependable, code-compliant performance for professional electrical installations where space and status visibility both matter.
Manufacturer Resources
Spec Sheet
Product Specs
- Product Finish:
- Satin
- Product Material:
- Thermoplastic
- Product Type:
- Switch
- Listing:
- cULus
- Voltage Rating:
- 125V
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Switches
- Product Width:
- 1.32 in
- Product Depth:
- 1.15 in
- Product Height:
- 4.06 in
- Product Color:
- Ivory
Pass & Seymour 692-IG – Frequently Asked Questions
1) Will the Pass & Seymour 692IG fit in a standard single-gang switch box?
Yes. The 692IG puts a single-pole switch and a pilot light into the footprint of one device, so it occupies a single gang position. The device body measures 4.06 in high, 1.32 in wide and 1.15 in deep, which is standard toggle-switch geometry for a single-gang opening. Box fill still depends on the conductors you bring in, but the device itself needs no extra gang.
2) Does the pilot light on the 692IG stay lit when the switch is on, or can it be wired independently?
Both are possible. The 692IG has an accessible break-off tab between the switch and lamp sections. Leave the tab intact for a common feed, which makes the red neon lamp indicate the switched load. Break it off and feed the lamp separately so it can show the status of equipment or a circuit independent of the switch position.
3) Does the 692IG combination switch meet NEC grounding requirements for inspection?
Yes. Pass & Seymour grounding combination devices, the 692IG included, are built to meet NEC requirements for grounding combination devices, and the device is cULus Listed.
4) What is the closest alternative to the Pass & Seymour 692IG if the circuit is switched from two locations?
The 692IG is a single-pole combination switch and pilot light, so it controls a circuit from one location only. For a two-location setup with the same lit status indication, the Leviton 1223-PLR is a 3-way extra heavy-duty industrial grade toggle switch with pilot light rated 20 amp 120 volt. Use the 3-way device in pairs where the lighting is controlled from both ends of a run; keep the 692IG where a single switch point is all the opening needs.
5) If no status indicator is needed, what plain single-pole switch can replace the Pass & Seymour 692IG?
The 692IG pairs a single-pole switch with a red neon pilot lamp rated 1/25 watt at 125 volts. Where the indicator is not wanted, the Leviton 1221-2W is an extra heavy-duty industrial specification grade SPST toggle switch rated 20A 120/277V AC, and the Bryant 9801 is a BR series 1-pole AC switch rated 15A 120/277V. Both switch the load only, with no lamp and no separate-feed tab to wire.
6) What wire size does the Pass & Seymour 692IG accept, and is it back-wire or side-wire?
Side wire only. The terminals take #12 and #14 AWG copper conductors, wrapped under the screws. If your rough-in was done with push-in back wiring in mind, plan on forming hooks for the side screws instead.
7) Will the ivory 692IG match the other ivory devices in my building?
The housing is molded ivory thermoplastic with a satin finish, which is the standard ivory used across Pass & Seymour wiring devices. If your existing plates and receptacles are ivory rather than light almond or white, it will blend. Note it is a toggle-style device, not decorator/rocker, so it takes a standard toggle wall plate.
8) Can I use a lighted switch like this to show that a garage heater or shop exhaust fan is running?
That is exactly the use case. Wire the pilot section on a separate feed from the load side of the equipment and the red neon lamp gives you an at-a-glance on/off indication from the switch location. Typical spots are utility rooms, workshops and garages where the controlled equipment is out of sight or out of earshot.
9) For a heavy-traffic commercial or industrial space, is this combination device the right spec, or should I go industrial grade?
The 692IG is a thermoplastic combination switch and pilot light for 125V work, chosen mainly when box space is tight and you need status indication. Where the driver is switch durability on a high-cycle industrial circuit instead, the Leviton 1221-2W extra heavy-duty industrial specification grade SPST toggle (20A, 120/277V) is the sturdier single-function choice, and the Leviton 1221-2IL adds a locking toggle for circuits you do not want casually switched.
10) I need a switch plus a receptacle in one gang, not a switch plus a light. What is the equivalent?
The 692IG pairs a switch with an indicator lamp only, with no receptacle. For a one-gang device combining two functions in decorator style, the Eaton decorator duplex combination switch with auto-ground, 15A commercial grade in white, is the combination device to look at.
11) How does the Eaton 275VBOX combination switch differ from the Pass & Seymour 692IG?
Both put two functions in one strap, but the combinations differ. The Eaton 275VBOX is a decorator duplex combination switch with auto-ground, commercial grade, rated 15A in white, meaning two switch functions in one yoke. The 692IG combines one single-pole switch with a red neon pilot light in ivory thermoplastic with a satin finish. Choose the Eaton where two separate loads are switched; choose the 692IG where one load needs a visible on indicator.
12) Is the Leviton 1286-W a substitute for the Pass & Seymour 692IG?
No. The Leviton 1286-W is a 20-amp DPDT center-off toggle switch in industrial/specification grade, a three-position double-pole device used to select between two circuits or park in an off center position. The 692IG is a single-pole on/off switch with a pilot lamp. The contact arrangements are different and the two are not interchangeable on the same box.
13) Is the 692IG tamper-resistant?
The 692IG is the standard ivory version. Pass & Seymour offers a tamper-resistant variant of this combination device with a dual mechanical shutter system that blocks insertion of foreign objects; if your facility requires TR, specify that version rather than the 692IG.
