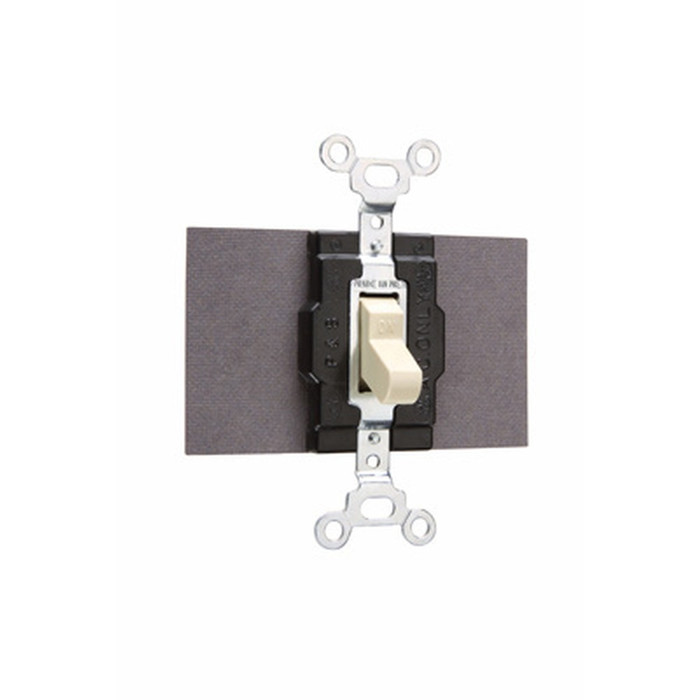

Pass & Seymour 7803 Manual Controller Switch, Multi-Pole, Ivory

Pass & Seymour 7803 Manual Controller Switch, Multi-Pole, Ivory

(No reviews yet) Write a Review

Model: 1221I

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour 7803 Manual Controller Switch, Ivory

The Pass & Seymour Manual Controller Switch is a Matte Ivory thermoplastic device engineered for dependable manual motor control and disconnect switching in commercial and industrial electrical systems. This series is available in two pole/rating configurations to match the application: a 3-Pole, 3-Phase version rated 30A at 600VAC for heavier motor and equipment disconnect duty, and a Single-Pole Double-Throw version rated 15A at 120/277VAC for lighter manual switching applications. Regardless of configuration, every unit shares the same durable Matte Ivory thermoplastic housing, is UL Listed under UL 508, and is CSA Standard compliant per C22.23 14, making it suitable for code-driven, professional-grade installations.

Key Features

  • Configurable Pole/Rating Options: Choose 3-Pole, 3-Phase 30A/600VAC for heavy manual motor control or Single-Pole Double-Throw 15A/120-277VAC for lighter switching duty.
  • Durable Thermoplastic Construction: Quality thermoplastic materials selected for long-term durability and a time-tested design across the series.
  • Matte Ivory Finish: A clean Matte Ivory finish compatible with TradeMaster unbreakable, radiant screwless, and metal wall plate options.
  • Compact Device Footprint: Standard device-box mounting dimensions for straightforward installation.
  • UL & CSA Listed: UL Listed under UL 508 and CSA Standard compliant per C22.23 14 for verified safety performance across all configurations.
  • RoHS Compliant: Manufactured to meet RoHS restricted-substance requirements.

Certifications & Compliance

  • UL Listed (UL 508)
  • CSA Standard Compliant (C22.23 14)
  • RoHS Compliant
  • Trade Agreement Act Compliant

Technical Specifications

  • Amperage Rating: 15A-30A depending on selected configuration
  • Standards: CSA C22.23 14
  • Country of Origin: Mexico
  • Material: Thermoplastic
  • Finish: Matte
  • Color: Ivory

Typical Applications

  • Commercial and Industrial Motor Control
  • Three-Phase Equipment Disconnect Switching
  • Lighter-Duty Manual Switching Applications
  • Panelboard and Device Box Installations
  • Renovation and New Construction Electrical Projects

Why Pass & Seymour?

Pass & Seymour builds this manual controller switch series from quality, time-tested thermoplastic materials to deliver reliable manual switching performance across both the 3-Pole 3-Phase 30A/600V and Single-Pole Double-Throw 15A/120-277V configurations. UL Listed and CSA Standard compliant construction, backed by RoHS and Trade Agreement Act compliance, gives electrical professionals a code-compliant, dependable device for demanding commercial and industrial environments.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
Manual Motor Starter
Voltage Rating:
120/277V-600V
Amperage Rating:
15A-30A
Product Finish:
Matte
Listing:
UL Listed
Standards:
CSA C22.23 14
Product Material:
Thermoplastic
Product Color:
Ivory
Department:
Electrical
Product Group:
Motor Control & Automation
Product Subgroup:
Motor Starters & Contactors

Pass & Seymour 1221I – Frequently Asked Questions

1) What is the difference between the 7803 and the 1221I manual controller switch?
Two different devices for two different jobs. The 7803 is 3-pole, 3-phase, 30A at 600VAC, meant for heavier motor and equipment disconnect duty. The 1221I is single-pole double-throw, 15A at 120/277VAC, for lighter manual switching, such as a three-way style control on a single circuit. Same matte ivory thermoplastic body on both, same UL 508 and CSA listings. If you are switching three phases, the 1221I will not do it.
2) Does this manual motor controller mount in a standard device box, and what wall plate do I need?
It uses standard device-box mounting dimensions, so it drops into a normal single-gang device box or a panelboard-style enclosure without special prep. The finish is matte ivory, and Pass & Seymour calls out compatibility with TradeMaster unbreakable plates, radiant screwless plates, and metal wall plates. A plate is not part of the switch, so order it separately to match the opening.
3) Is a manual motor controller like this the same thing as a magnetic motor starter?
No. This is a manual controller, meaning an operator throws it by hand to start, stop, or disconnect the motor. It has no coil, no overload relay, and no remote start/stop or low-voltage release, so it cannot be controlled from a pushbutton station or a BAS output and it does not provide motor overload protection by itself. For 30A three-phase disconnect duty at the equipment where someone flips it on site, the 7803 is the right device. If you need remote control, overload protection, or automatic restart logic, you need a magnetic starter instead.
4) I'm standardizing ivory devices across a building. Will this motor switch match the other Pass & Seymour ivory devices on the wall?
The housing is matte-finish ivory thermoplastic, the same ivory used across the Pass & Seymour device line, so it sits in a bank with other ivory switches and receptacles without looking like a patch. Only ivory is offered on this manual controller, in either the 3-pole 30A or SPDT 15A configuration.
5) Does the Pass & Seymour 7803 meet Buy American / TAA requirements for a government job?
It is stated Trade Agreement Act compliant, and country of origin is Mexico. For a federally funded project governed by the TAA rather than the Buy American Act, that satisfies the sourcing clause. Confirm which clause your contract actually invokes, since a strict Buy American spec is a different test.
6) Which one do I order for a single-phase 120V exhaust fan I just need to shut off locally?
For a single 120V circuit at 15A or less, the 1221I single-pole double-throw version covers it. The 7803 is overkill there, it is a 3-pole 600V 30A device built for three-phase disconnect duty. Note the 1221I is double-throw, so if you only need simple on/off you will leave one of the throw terminals unused.
7) Is this switch RoHS compliant for a sustainable-spec project?
Yes, the manual controller series is manufactured to RoHS restricted-substance requirements, in addition to being UL Listed under UL 508 and CSA compliant to C22.23 14. That covers the three compliance lines most institutional submittals ask for on a device like this.
