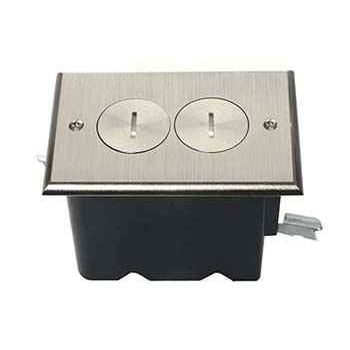

Pass & Seymour FB1TRDR Tamper-Resistant 1-Gang Floor Box Assembly

Pass & Seymour FB1TRDR Tamper-Resistant 1-Gang Floor Box Assembly

(No reviews yet) Write a Review

Model: FB1-TR-DR-N

In Stock (leaves warehouse same day if ordered before 3pm ET)

$124.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour FB1TRDRB Tamper-Resistant 1-Gang Floor Box Assembly, Wood Sub-Floor, Brass Cover

The Pass & Seymour FB1TRDRB is a 1-Gang Tamper-Resistant Floor Box Assembly engineered specifically for installation in wood sub-floors. Featuring tamper-resistant shutters that allow plugs in while keeping other objects out, this cULus Listed assembly pairs a rugged diecast cover plate finished in durable nickel or brass with a brass/thermoplastic body construction. It meets UL514(c) and NEC 314.27(c) requirements and is scrub water compliant, making it a reliable choice for floor-mounted power access in commercial and residential wood-floor applications.

Key Features

  • Tamper-Resistant Design: Spring-loaded shutters let plugs in while keeping foreign objects out, supporting child-safety and code compliance.
  • Durable Cover Plates: Rugged diecast cover plates finished in nickel or brass for long-lasting, attractive floor-level protection.
  • Wood Sub-Floor Application: Designed and rated for use with wood sub-floors only.
  • Code Compliance: Meets UL514(c) and NEC 314.27(c) requirements for floor box installations.
  • Wire Fill Capacity: Accommodates 10 No. 14 AWG, 9 No. 12 AWG, or 8 No. 10 AWG conductors for flexible circuit planning.
  • Scrub Water Compliant: Construction withstands routine floor cleaning without compromising performance.
  • Swing Bracket Mounting: Optional swing brackets eliminate the need to drill tile flooring for mounting screws.
  • Dual-Voltage Options: Dual-voltage models are available to support varied circuit requirements.

Certifications & Compliance

  • cULus Listed
  • Meets UL514(c)
  • Complies with NEC 314.27(c)
  • Scrub Water Compliant

Technical Specifications

  • Country Of Origin: Mexico
  • Product Line: Pass & Seymour
  • Product Material: Brass,Thermoplastic

Typical Applications

  • Commercial and Office Floor Outlet Installations
  • Wood Sub-Floor Power and Data Access Points
  • Retail and Hospitality Floor Receptacle Locations
  • Renovation and New Construction Projects
  • Tamper-Resistant, Code-Compliant Floor Wiring

Why Pass & Seymour?

Pass & Seymour builds the FB1TRDRB with rugged diecast cover plates and a durable brass/thermoplastic assembly designed to hold up to daily foot traffic and routine floor cleaning. Backed by cULus Listing and compliance with UL514(c) and NEC 314.27(c), this floor box assembly delivers dependable, tamper-resistant power access for wood sub-floor installations where reliability and code compliance are essential.

Product Specs

Listing:
cULus
Product Type:
Floor Box
Department:
Electrical
Country of Origin:
Mexico
Product Group:
Boxes & Enclosures
Product Subgroup:
Floor Boxes
Product Length:
4.75 in
Product Depth:
4 in
Product Width:
3.25 in

Pass & Seymour FB1-TR-DR-N – Frequently Asked Questions

1) Can the Pass & Seymour FB1TRDR floor box be installed in a concrete slab?
No. The FB1TRDR assembly is designed and rated for wood sub-floors only. For a poured concrete slab you need a concrete-rated floor box, not this one.
2) What is the difference between the FB1-TR-DR-B and FB1-TR-DR-N floor boxes?
Only the cover plate finish. The FB1-TR-DR-B comes with the brass diecast cover, the FB1-TR-DR-N with nickel. Both are the same 1-gang tamper-resistant assembly with a brass and thermoplastic body for wood sub-floor installation.
3) How many conductors can I run into a Pass & Seymour FB1TRDR floor box?
Wire fill for the FB1TRDR is 10 No. 14 AWG, 9 No. 12 AWG, or 8 No. 10 AWG conductors. That gives you room for a feed-through on 12 AWG branch circuits, but plan carefully if you are pulling 10 AWG.
4) Is this floor box tamper-resistant enough to satisfy inspection in an occupied space?
The FB1TRDR uses spring-loaded shutters that admit plugs while blocking foreign objects, and the assembly is cULus Listed, meets UL 514(c), and complies with NEC 314.27(c) for floor boxes.
5) Will a floor box like this survive routine mopping and floor scrubbing?
Yes. The FB1TRDR assembly is scrub water compliant, so routine wet floor cleaning does not compromise it. The diecast cover plate handles the foot traffic side.
6) Do I have to drill into tile flooring to mount the FB1TRDR?
Not necessarily. Optional swing brackets are available for the FB1TRDR that eliminate drilling tile for mounting screws. They are not part of the base assembly, so order them separately if your finished floor is tile.
7) Can I get a floor box that handles both power and low-voltage in one location?
The FB1TRDR is a 1-gang assembly, so a single gang of devices. Pass & Seymour offers dual-voltage models in this family if you need separated circuit requirements at one floor location; a single 1-gang box will not give you a divided power and data opening.
8) What is the FB1TRDR floor box body made of, and where is it made?
Body construction is brass and thermoplastic, with a rugged diecast cover plate in brass or nickel. Country of origin is Mexico.
