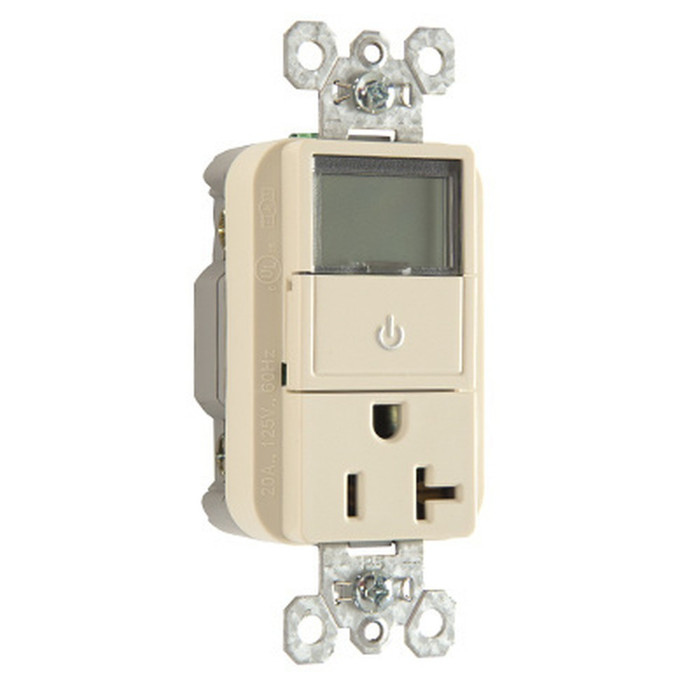

Pass & Seymour Heavy Duty Spec Grade Plug Load Timer Receptacle, 20A 125V

Pass & Seymour Heavy Duty Spec Grade Plug Load Timer Receptacle, 20A 125V

The Pass & Seymour Heavy Duty Spec Grade Plug Load Timer Receptacle is a 20A, 125V programmable device built to meet new energy-reduction requirements for commercial buildings, complying with 2014 NEC, CA Title 24, and ASHRAE 90.1. The bottom half of the device features a single receptacle that is automatically controlled by an integral time clock, with feed-thru capability for downstream control of additional receptacles. The device meets UL498B requirements for receptacles with integral switching means, giving specifiers a code-compliant plug load control solution.

Key Features

• Programmable Timer Control: Center panel flips open for easy three-button programming, with two individual programs available to automatically control plug loads.
• Feed-Thru Capability: Allows downstream control of multiple receptacles from a single device.
• Manual Override: Power button on the face serves as a manual override to scheduled programs.
• Auto-Ground Design: Eliminates the necessity to terminate a grounding conductor in the device.
• Wire Size: #14 - #10 AWG copper conductor only for secure, code-compliant termination.
• Clear LCD Display: Shows program status, ON/OFF status, current time, and day of the week.
• Durable Construction: .032 inch thick, brass triple-wipe power contacts for lasting retention.
• Corrosion-Resistant Steel Strap: Plated steel strap locked into face and back body to resist pulling away from the face/body assembly.
• Identification: Permanently molded power symbol on the face identifies the controlled receptacle in accordance with ASHRAE 90.1, NEC, and Title 24.

Certifications & Compliance

• Federal Spec Listed
• UL Listed
• cULus Listed
• Compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1
• Meets UL498B requirements for receptacles with integral switching means

Technical Specifications

• Country of Origin: China
• Amperage Rating: 20A
• Voltage Rating: 125V
• Wire Size: #14 - #10 AWG Copper Conductor Only

Typical Applications

• Commercial Office Buildings and Workspaces
• Plug Load Energy Management Programs
• Code-Compliant New Construction and Renovation
• Break Rooms and Common Areas with Scheduled Equipment
• Energy Code Compliance Projects (Title 24, ASHRAE 90.1, NEC)

Why Pass & Seymour?

Pass & Seymour builds this Plug Load Timer Receptacle with brass triple-wipe power contacts, a corrosion-resistant plated steel strap, and an auto-ground design for lasting, reliable performance. Backed by Federal Spec, UL, and cULus listings and engineered to satisfy 2014 NEC, CA Title 24, and ASHRAE 90.1 energy requirements, it delivers dependable, code-compliant plug load control for professional electrical installations.
