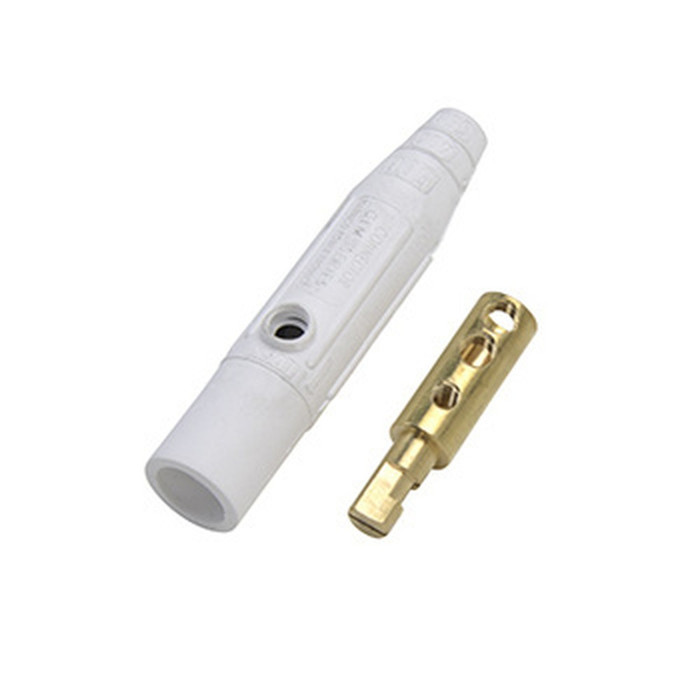

Pass & Seymour PSM2-M Series 15 Cam-Type Male Plug Connector, 150A 600V

Pass & Seymour PSM2-M Series 15 Cam-Type Male Plug Connector, 150A 600V

(No reviews yet) Write a Review

Model: PSM2-MW
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour PSM2-M Series 15 Cam-Type Male Plug Connector, 150A 600V

The Pass & Seymour PSM2-M Series 15 cam-type connector is a heavy-duty male plug connector rated 150A 600V, engineered for portable power distribution and temporary electrical hookups on industrial and commercial job sites. Built with a chemical- and impact-resistant thermoplastic elastomer housing, this connector maintains NEMA Type 3R and 4 sealing integrity for reliable performance indoors or out. Heavy-duty brass contacts and hex set-screw termination deliver consistent conductivity and a secure, high-torque connection. This connector is available in Black and White housing colors, giving installers flexibility to color-code circuits or match existing cam-lock systems while retaining the same 150A 600V rating and construction across both options.

Key Features

  • Amperage & Voltage Rating: Rated 150A 600V for heavy-duty power connection applications.
  • Durable Construction: Thermoplastic elastomer housing offers outstanding impact and chemical resistance.
  • Weatherproof Sealing: Housing maintains NEMA Type 3R and 4 integrity for reliable outdoor and industrial use.
  • Set-Screw Termination: Heavy-duty hex set screws allow greater termination torque for a secure connection.
  • Non-Conductive Retaining Screw: Helps insure no contact with live parts while providing stability to the fully assembled connector.
  • Brass Contacts: Heavy-duty brass male and female contacts provide a superior, consistent means of conductivity.
  • Color Options: Available in Black and White housing to support circuit color-coding, with identical electrical ratings and construction across both.

Certifications & Compliance

  • NEMA Type 3R Integrity
  • NEMA Type 4 Integrity

Technical Specifications

  • Product Line: Pass & Seymour
  • Country of Origin: Mexico
  • Packaging: 50 EA
  • Standards: NEMA 3R

Typical Applications

  • Portable Power Distribution
  • Temporary Power Hookups for Events and Job Sites
  • Industrial and Commercial Cam-Lock Power Connections
  • Outdoor and Wet-Location Power Connections
  • Generator and Distribution Panel Interconnects

Why Pass & Seymour?

Pass & Seymour Series 15 cam-type connectors combine heavy-duty brass contacts, a chemical-resistant thermoplastic elastomer housing, and NEMA Type 3R and 4 sealing integrity to deliver reliable, code-compliant power connections for professional electrical work. The heavy-duty hex set-screw termination and non-conductive retaining screw add durability and safety to every connection point, and the Black or White housing options let crews color-code connections without sacrificing the same dependable 150A 600V performance across demanding industrial and commercial power distribution needs.

Product Specs

list_batch:
PASS-20260820
Product Type:
Cam-Type Connector
Amperage Rating:
150A
Voltage Rating:
600V
Connection Type:
Set Screw
Standards:
NEMA 3R
Product Material:
Thermoplastic Elastomer
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors

Pass & Seymour PSM2-MW – Frequently Asked Questions

1) Is the Pass & Seymour PSM2-M a male or female cam-lock connector, and what are the two part numbers?
It's the male plug half of the Series 15 cam-lock pair, rated 150A 600V. Two orderable part numbers, differing only in housing color: PSM2-MBK in black and PSM2-MW in white. Electrical rating and construction are the same on both, so the color is purely for circuit identification.
2) Can I use these cam-lock plugs outdoors on a temporary power install?
Yes. The thermoplastic elastomer housing holds NEMA Type 3R and Type 4 integrity, so it's suited to rain and wet-location use on outdoor generator and distribution hookups. The material is also impact and chemical resistant, which is what you want for connectors getting dragged around a job site.
3) How does the cable terminate in the PSM2-M, crimp or set screw?
Set screw. The PSM2-M uses a heavy-duty hex set screw, which takes more termination torque than a slotted screw, so no crimp tool or die set is needed to make up the conductor. You will need the correct hex key on site.
4) Will a 150A cam-lock plug work on a 480V three-phase generator feed?
The voltage rating is 600V, so 480V three-phase is within rating, and current must stay within the 150A per-pole rating. Cam-lock connectors are single-pole devices, so you need one plug per conductor, phases plus neutral plus ground, not one connector for the whole feed.
5) Do I need to order both black and white, or can I just pick one color for my cam-lock set?
Pick whatever your color code calls for. Black (PSM2-MBK) and white (PSM2-MW) are the same 150A 600V device, so crews typically buy by phase assignment rather than by performance. If you are matching an existing cam-lock system already on site, order the color that matches the leg you are replacing.
6) What keeps the assembled cam plug from exposing live parts?
A non-conductive retaining screw holds the fully assembled connector together, so the fastener itself can't become a path to the live contact. Inside, the current-carrying parts are heavy-duty brass male and female contacts.
7) How do these cam-type connectors ship, individually or in a bulk pack?
Packaging is 50 each, so the Series 15 cam plugs come as a bulk quantity rather than a single boxed device. That suits shops building out full sets of phase, neutral and ground legs across multiple feeders. Country of origin is Mexico.
