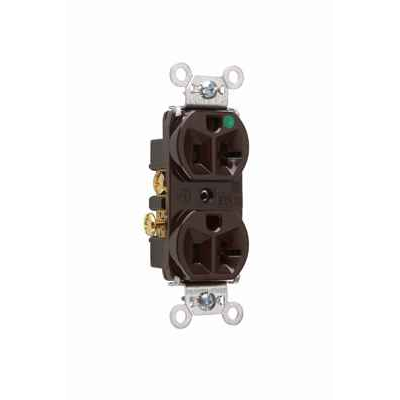

Pass & Seymour PT8300H PlugTail Hospital-Grade Compact Duplex Receptacle, 20A 125V

Pass & Seymour PT8300H PlugTail Hospital-Grade Compact Duplex Receptacle, 20A 125V

(No reviews yet) Write a Review

Model: PT-8300HRED

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour PlugTail PT8300HW 20A 125V Hospital-Grade Compact Duplex Receptacle, White

The Pass & Seymour PlugTail PT8300HW is a 20A, 125V heavy-duty hospital-grade compact duplex receptacle finished in White with a Matte finish. Built on the PlugTail platform, this receptacle is engineered for demanding healthcare and commercial environments where dependable, code-compliant power connections are required. Large brass contacts snugly terminate on device blade terminals for a secure, low-resistance connection, and the device is cULus Listed for safety compliance. The compact duplex body allows it to be used where space is limited without sacrificing the durability expected of a hospital-grade device, making it a practical choice for facility managers and electrical contractors specifying dependable wiring devices.

Key Features

  • Electrical Rating: Rated 20A at 125V for heavy-duty commercial and hospital-grade applications.
  • Hospital-Grade Construction: Heavy-duty compact duplex receptacle designed to meet hospital-grade performance standards for high-reliability environments.
  • Large Brass Contacts: Large brass contacts snugly terminate on device blade terminals for a secure, long-lasting, low-resistance connection.
  • Wire Compatibility: Accepts #12 AWG THHN wire for straightforward, reliable termination during installation.
  • PlugTail Platform: Part of the Pass & Seymour PlugTail system of wiring devices, engineered for consistent quality across the product line.
  • Compact Duplex Design: Compact duplex configuration suited to installations where panel and box space is limited.
  • Finish: Matte White finish for a clean, professional appearance that blends with most facility interiors.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Finish: Matte
  • Product Height: 3.281 in
  • Product Line: Pass & Seymour
  • Product Width: 1.5 in
  • Product Depth: 0.625 in

Typical Applications

  • Hospital and Healthcare Facility Wiring
  • Commercial and Institutional Electrical Installations
  • Compact Duplex Receptacle Replacements
  • Panelboard-Fed Branch Circuit Outlets
  • Renovation and New Construction Projects
  • Facilities Requiring Hospital-Grade Reliability

Why Pass & Seymour?

Pass & Seymour builds the PT8300HW with large brass contacts and hospital-grade construction to deliver secure, code-compliant connections for demanding facilities. Backed by cULus Listing, this PlugTail receptacle is engineered for the reliability that professional electricians expect on critical commercial and healthcare projects. Choosing a Pass & Seymour PlugTail device means specifying a wiring device built for consistent performance, secure termination, and long-term durability in hospital-grade duty.

Manufacturer Resources

Spec Sheet

Product Specs

Department:
Electrical
Product Group:
Wiring Devices
Product Finish:
Matte
Product Type:
Duplex Receptacle
Product Subgroup:
Receptacles & Outlets
Product Height:
3.281 in
Product Depth:
0.625 in
Product Width:
1.5 in

Pass & Seymour PT-8300HRED – Frequently Asked Questions

1) What colors does the Pass & Seymour PT8300H hospital-grade receptacle come in?
Two colors: red (PT-8300HRED) and white (PT-8300HW). In healthcare work the red body is normally used to identify outlets fed from the emergency or generator-backed branch, while white goes on normal power. Both are the same 20A, 125V hospital-grade compact duplex device, so you can standardize one device across a facility and just change the color by circuit.
2) What is a PlugTail receptacle and why would I use one instead of a standard back-wired device?
PlugTail splits the device from the wiring. The PT8300H receptacle has no screw terminals to wire in the field: a separate PlugTail connector is pre-wired into the box, then the device plugs onto it. On the PT8300H, large brass contacts terminate onto the device blade terminals for a secure low-resistance connection. That means rough-in and trim-out are separate operations, and swapping a failed device later is a disconnect and reconnect rather than a rewire. The trade-off is that you must order the matching PlugTail connector for the circuit separately, since it is not part of the receptacle.
3) Is the PT8300H actually hospital grade, and is it UL listed?
It is built as a heavy-duty hospital-grade compact duplex receptacle and is cULus Listed, which covers both US and Canadian listing. Those are the two things a facility inspector asks about on a patient-care-area outlet.
4) Will a compact duplex receptacle fit in a shallow or crowded box?
That is the point of the compact body. The PT8300H measures 3.281 in high, 1.5 in wide and 0.625 in deep, so the device itself takes very little box volume compared with a conventional duplex yoke. It is a good pick for shallow boxes, boxes already full of conductors, and multi-gang trim where space is tight. Remember the PlugTail connector and its pigtails still occupy space in the box.
5) What wire size does the PT8300H PlugTail receptacle accept?
It is set up for #12 AWG THHN, which is the normal conductor for a 20A branch circuit. If your branch is run in #10 for voltage drop, plan on transitioning down at the box.
6) Can I use the PT8300H on a 15A circuit or for a 240V load?
No on 240V. This is a 125V device only, so it cannot serve a 208/240V load. On the amperage side it is rated 20A at 125V and uses the 20A configuration, so the straight-blade face will not accept it if you need a 15A-only opening; a 15A plug will still insert into a 20A receptacle, but a 20A receptacle should be fed by a 20A circuit.
7) What finish is the white PT8300HW, and will it match other devices on the wall?
The PT-8300HW is white with a matte finish rather than a gloss, so it reads flat next to matte wall plates and other matte-finish devices. If the existing openings in the building are gloss white, expect a visible sheen difference on a side-by-side replacement.
8) Where is the Pass & Seymour PT8300H receptacle made?
Country of origin is Mexico. Worth confirming against your project's domestic-preference requirements if you are buying for a government or federally funded healthcare job.
