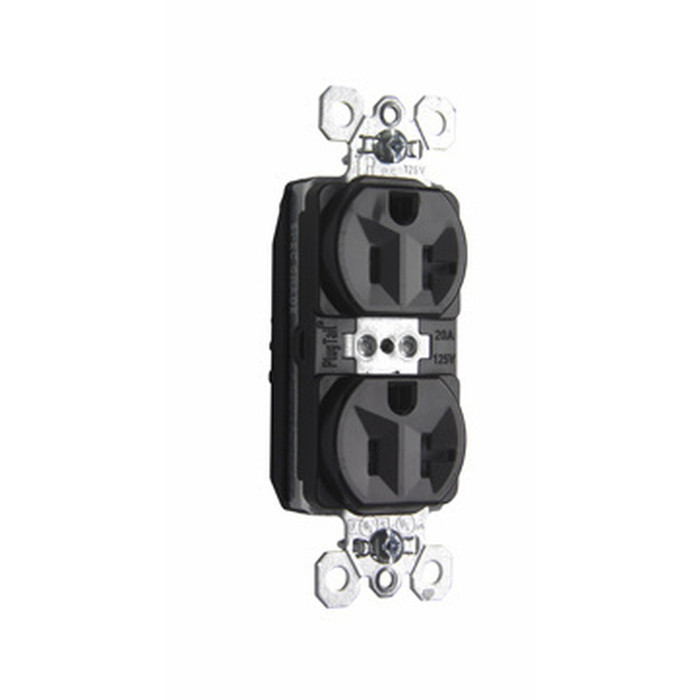

Pass & Seymour PlugTail Spec-Grade Tamper-Resistant Duplex Receptacle, 20A 125V, Black

The Pass & Seymour PlugTail® Spec-Grade Tamper-Resistant Duplex Receptacle is a 20A, 125V device engineered around the PlugTail® connector system, which keys UL-Listed connectors to the receptacle so installation quality stays consistent no matter the installer's skill level. Finished in Black, this spec-grade duplex receptacle is built for commercial and industrial wiring where reliable, code-compliant terminations and finger-safe assembly matter. It carries Federal Spec Listed and cULus Listed recognition, backing it for professional specification work.

Key Features

  • Electrical Rating: 20A, 125V duplex receptacle configuration for standard branch-circuit loads.
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only.
  • Contact Construction: Crimped and welded contacts with .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easier Terminations: Pre-stripped connector leads fasten to conductors more easily than standard pigtails, and the unit is pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Grounding: Auto-ground clip assures positive ground.
  • Thermal Performance: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current; operating temperature range of +60°C maximum continuous to -40°C minimum without impact.
  • Finger-Safe Design: No exposed terminals before, during, or after installation, with a smooth wall plate surface.
  • Housing: Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger-safe enclosure, with large brass terminal blades for consistent, reliable electrical connections.

Certifications & Compliance

  • Federal Spec Listed
  • cULus Listed

Technical Specifications

  • Color: Black
  • Product Line: Pass & Seymour
  • Country of Origin: Mexico
  • Packaging: 10 EA

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Spec-Grade Wiring Device Upgrades
  • Switched Receptacle Circuit Applications
  • Tamper-Resistant Code-Compliant Retrofits
  • New Construction Branch-Circuit Wiring

Why Pass & Seymour?

Pass & Seymour builds the PlugTail® system around keyed, UL-Listed connectors, crimped and welded brass contacts, and a finger-safe polycarbonate housing so terminations stay consistent and reliable across any installer skill level. With Federal Spec Listed and cULus Listed recognition, this tamper-resistant duplex receptacle is engineered for dependable, code-compliant performance in demanding professional electrical work.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
Duplex Receptacle
Configuration:
Duplex
Amperage Rating:
20A
Voltage Rating:
125V
Grade:
Spec-Grade
Listing:
cULus
Product Color:
Black
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Pass & Seymour PTTR5362-BK – Frequently Asked Questions

1) Do I need a separate PlugTail connector to install the PTTR5362-BK receptacle, or does it come wired?
The PlugTail tamper-resistant receptacle works with the PlugTail connector system, and the connector is what you land your branch-circuit conductors on. The connector is specified as #12 AWG THHN copper with 6 inch pre-stripped leads, solid or stranded, and it is for use with PlugTail receptacles only. The device itself is pre-wired with one welded pre-stripped lead to support switched receptacle circuits. If your rough-in does not already have PlugTail connectors set in the boxes, you need to order them along with the devices.
2) Will a PlugTail receptacle drop into an existing box wired with standard screw-terminal devices?
Not directly. The PlugTail 20A device terminates to a keyed PlugTail connector, not to side screws, and that connector is stated as for use with PlugTail receptacles only. On a retrofit you would install the PlugTail connector onto the existing #12 AWG conductors in the box first, then plug the device in. If you want a straight screw-terminal swap instead, a conventional 20A 125V commercial duplex such as the Leviton 16352-1PW (NEMA 5-20R) or the Bryant 5362B heavy-duty duplex is the simpler replacement.
3) Is this receptacle good enough for a hospital or healthcare application?
It is a spec-grade commercial and industrial device, not a hospital grade one. Patient care spaces that require hospital grade receptacles need a device marked with the green dot, such as the Leviton 16262-HGW hospital grade duplex. Use the PlugTail TR device in offices, corridors, back-of-house, and other non-patient-care areas of a healthcare facility.
4) What is the closest 20A 125V duplex receptacle to the Pass & Seymour PTTR5362-BK if I do not want the PlugTail connector system?
The Bryant 5362B is a heavy-duty 20A/125V duplex receptacle, and the Bryant 5362BI is the same heavy-duty 20A/125V duplex device. Both match the PTTR5362-BK on amperage and voltage rating and duplex configuration, but they are conventionally terminated devices rather than PlugTail units. The PTTR5362-BK is wired through a keyed PlugTail connector with #12 AWG, 6 inch pre-stripped leads, so the receptacle itself has no exposed terminals before, during, or after installation. If your crew is landing conductors directly on screw terminals, the Bryant devices suit that method; if you want the connector pre-set in the box and the device plugged on at trim-out, stay with the PlugTail.
5) I need a white 20A commercial duplex receptacle instead of black - what should I order?
The PTTR5362-BK is a black spec-grade device. For a white 20A 125V NEMA 5-20R duplex, the Leviton 16352-1PW is a commercial grade heavy-duty straight blade duplex receptacle, and the Leviton 16342 is a Decora Plus commercial grade 20A 125V NEMA 5-20R duplex in white with the decorator-style face. Note that both Leviton devices are conventionally terminated and are not part of the PlugTail connector system, so they will not drop onto a PlugTail connector already set in the box.
6) Can I use the Pass & Seymour PTTR5362-BK in patient care areas of a hospital?
The PTTR5362-BK is a spec-grade tamper-resistant duplex rated 20A 125V and cULus Listed, which suits commercial and industrial branch-circuit work. Where a facility calls specifically for hospital grade devices, the Leviton 16262-HGW is a hospital grade duplex receptacle in white, supplied in packs of 100. Spec-grade and hospital grade are separate designations, so match whichever the drawing or facility standard names.
7) Can I use this 20A receptacle on a 15 amp circuit?
A 20A 125V duplex is rated for 20 amp branch circuits and is also commonly installed on 15 amp circuits, where the circuit breaker, not the device, sets the limit. What you cannot do is put it on a circuit larger than 20 amps. If you specifically need a 15 amp device, the Eaton Arrow Hart 5262W is a 15A 125V 5-15R heavy-duty industrial duplex.
8) What approvals does the Pass & Seymour PlugTail tamper-resistant duplex carry for spec work?
It is cULus Listed and Federal Spec Listed, which covers it for US and Canadian installations and for government and institutional specification packages that call for Federal Spec devices. The connector housing is also a UL Listed, finger-safe enclosure. Grade is spec-grade.
9) How is a PlugTail device faster than standard pigtailing on a large job?
The connector leads come pre-stripped, so they fasten to the branch conductors faster than cutting and stripping your own pigtails, and the connectors can be set in the boxes during rough-in and the devices plugged in at trim-out. The connectors are keyed to the receptacle, so the termination comes out the same regardless of who on the crew does it, and there are no exposed terminals before, during, or after installation. For high-device-count commercial projects that is where the labor saving lands.
10) Does the PlugTail receptacle support switched outlet circuits, like half-hot configurations?
Yes. The device comes pre-wired with one welded, pre-stripped wire lead specifically to handle switched receptacle circuit applications, so you do not have to break a tab or improvise a jumper. That lead is what you take to the switch leg.
11) I need a 20 amp outlet but not a duplex. What are my options?
The PlugTail PTTR5362-BK is a duplex configuration, two outlets in one yoke. If you need more outlets on one strap, the Bryant 21254IGO is a quad NEMA 5-20R 20A receptacle. For a single receptacle instead, the Eaton 6450W is an industrial specification grade decorator single rated for #14-10 AWG conductors. Neither of those is a PlugTail device, so they terminate conventionally.
12) Is a 15A receptacle an acceptable substitute for the PTTR5362-BK?
Not where the drawing calls for a 20A device. The PTTR5362-BK is rated 20A 125V. The Eaton Arrow Hart 5262W is a heavy-duty industrial duplex rated 15A 125V with a 5-15R face in gray, and the Eaton 816W-BOX is a commercial specification grade single receptacle rated 15A. Those are 15A devices and will not accept a 20A NEMA 5-20 plug, so use them only on circuits and specs that call for 15A.
13) I need four outlets at one location instead of two - what is the alternative to the PTTR5362-BK?
The PTTR5362-BK is a duplex device, so it gives two outlets per yoke. For four outlets at one point, the Bryant 21254IGO is a quad straight-blade receptacle, NEMA 5-20R, rated 20A, which matches the 20A rating of the Pass & Seymour device while doubling the outlet count. It is a conventionally terminated device, not a PlugTail unit, so plan the box wiring accordingly.
14) Will the PTTR5362-BK work in a hazardous or wash-down location?
No. The PTTR5362-BK is a spec-grade tamper-resistant duplex for commercial and industrial branch-circuit wiring with a polycarbonate PlugTail connector housing, intended for standard dry interior boxes. For classified areas, the Appleton FSQC series is an interlocked explosionproof receptacle, and the Appleton U-Line ECS set is a factory-sealed 15 and 20 amp plug and receptacle set, 3-pole. Those are purpose-built hazardous-location devices and are not interchangeable with a standard duplex.
15) My load is 277V or a locking plug - does the PTTR5362-BK cover it?
No. The PTTR5362-BK is rated 125V with a straight-blade duplex configuration. For a 277V circuit, the Bryant 430R9W 4750DR is a 2-pole 3-wire 277V motor-duty receptacle. For a locking connection at higher ratings, the Eaton 7379 is an industrial locking receptacle rated 50A, 600V/250V AC/DC, in black. Neither accepts a standard 125V straight-blade plug.
16) How durable are the contacts, and what temperatures can it handle?
Power contacts are crimped and welded brass, .036 inch thick, triple-wipe, which is what holds plug retention over repeated use. Thermally, maximum 30 degrees C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current with direct current, and the operating range runs from +60 degrees C maximum continuous down to -40 degrees C minimum without impact. An auto-ground clip handles the ground path so you are not relying on the mounting screw alone.
17) How does the black PlugTail receptacle ship, and can I get it to match other devices in the building?
The tamper-resistant PlugTail duplex is packaged 10 each, and the finish is black, which electricians commonly use to flag an isolated, controlled, or specific-use circuit against white or ivory devices elsewhere. Country of origin is Mexico. If you are standardizing a floor on one color, order the device count against 10-piece packs.
18) For a high-abuse area, how does the PTTR5362-BK compare with an impact-resistant commercial receptacle?
The PTTR5362-BK is spec-grade with crimped and welded contacts and .036 inch thick brass triple-wipe power contacts for blade retention, housed in ultrasonically welded polycarbonate. The Leviton 16251W is a commercial grade heavy-duty impact-resistant straight blade receptacle, which emphasizes face and body impact resistance. Choose on the failure mode you are seeing: blade retention loss on heavily cycled outlets versus physical damage to the device face.
