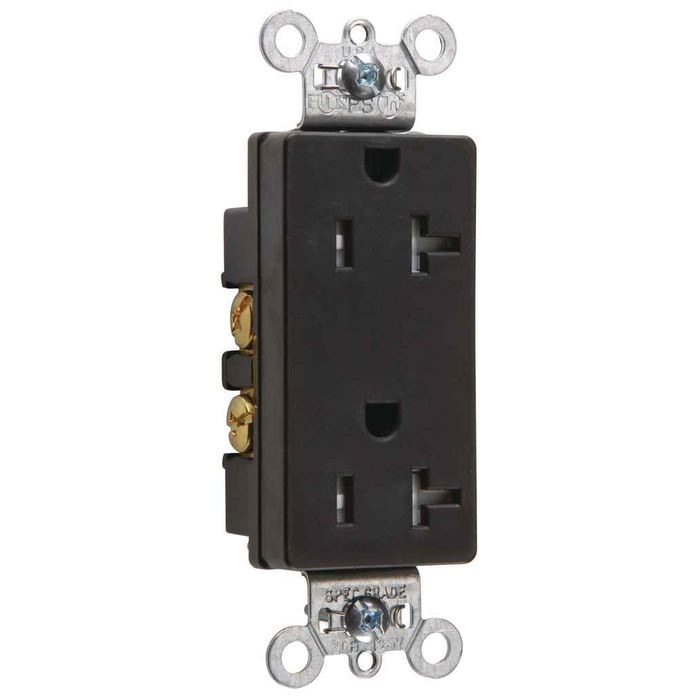

Pass & Seymour TR26342 20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle

Pass & Seymour TR26342 20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle

(No reviews yet) Write a Review

Model: TR26342-BK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour TR26342BK 20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Black

The Pass & Seymour TR26342BK is a 20A 125V spec-grade tamper-resistant decorator duplex receptacle finished in black, designed for side-wire-only termination on commercial and residential branch circuits. Built to spec-grade standards and cULus Listed, this decorator-style duplex receptacle incorporates a dual mechanical shutter system that helps prevent insertion of foreign objects into the contact openings, meeting tamper-resistant requirements common in code-driven installations. The matte black finish and decorator profile suit a wide range of interior applications while the rugged steel hardware supports reliable, long-term performance.

Key Features

  • Electrical Rating: Rated 20A at 125V for standard branch-circuit duplex receptacle applications.
  • Tamper-Resistant Design: Dual mechanical shutter system helps prevent insertion of foreign objects into the receptacle openings.
  • Side-Wire Termination: Backed-out tri-drive steel terminal screws for side-wire-only connections, providing a secure termination point.
  • Positive Grounding: Auto-ground clip assures positive ground connection for added safety.
  • Split-Circuit Ready: Easily accessed break-off line-contact connecting tab allows fast and easy split-circuit wiring where needed.
  • Decorator Duplex Style: Spec-grade decorator configuration in a black finish for a clean, modern appearance.
  • Family Availability: AC receptacles in this spec-grade line are also available in 15 and 20A, 125V configurations.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Finish: Matte
  • Product Height: 3.28 in
  • Product Line: Pass & Seymour
  • Product Width: 1.37 in
  • Product Depth: 0.93 in

Typical Applications

  • Commercial and Residential Branch-Circuit Wiring
  • Kitchens, Bathrooms, and Other Tamper-Resistant Code-Required Locations
  • New Construction and Remodel Electrical Projects
  • Split-Circuit Duplex Receptacle Installations
  • Spec-Grade Applications Requiring cULus-Listed Devices

Why Pass & Seymour?

Pass & Seymour engineers this TR26342BK receptacle to spec-grade standards, combining tri-drive steel terminal screws, an auto-ground clip, and a dual mechanical shutter system for tamper resistance in a single cULus-listed device. For electricians and contractors specifying code-compliant, reliable duplex receptacles, the Pass & Seymour spec-grade line delivers consistent, professional-grade performance for demanding side-wire installations.

Manufacturer Resources

Spec Sheet

Product Specs

Voltage Rating:
125V
Listing:
cULus
Product Type:
Duplex Receptacle
Department:
Electrical
Product Group:
Wiring Devices
Amperage Rating:
20A
Product Subgroup:
Receptacles & Outlets
Product Depth:
0.93 in
Product Width:
1.37 in
Product Height:
3.28 in

Pass & Seymour TR26342-BK – Frequently Asked Questions

1) Can the Pass & Seymour TR26342 receptacle be back-wired, or is it side-wire only?
Side-wire only. The TR26342 uses backed-out tri-drive steel terminal screws on the sides, with no back-wire or push-in holes. If your crew standardizes on back-wire clamp terminations for speed, this is not the device for that workflow.
2) Does the Pass & Seymour TR26342 satisfy the tamper-resistant receptacle requirement for dwelling-unit outlets?
It is a tamper-resistant device, built with a dual mechanical shutter system that blocks insertion of foreign objects into the contact openings, and it is cULus Listed. That is the construction the code-driven TR locations (kitchens, bathrooms, and other required dwelling areas) call for.
3) Is the TR26342 a 20 amp receptacle I can put on a 20A kitchen circuit?
Yes, it is rated 20A at 125V, so it suits a standard 20-amp 125-volt branch circuit. Pass & Seymour also builds this spec-grade AC receptacle line in 15A, 125V configurations if you are matching a 15-amp circuit instead.
4) What is the closest decorator-style equivalent to the Pass & Seymour TR26342 from another brand?
The Leviton Decora Plus 16342 is the nearest decorator-profile match: it is a commercial grade duplex receptacle rated 20-amp 125-volt, NEMA 5-20R, in white. The TR26342 is also a 20A 125V decorator duplex, rated spec-grade, and it adds a dual mechanical shutter system for tamper resistance, which the 16342 description does not carry. If the tamper-resistant requirement is what drives the spec, the TR26342 is the one to hold; if you only need the decorator look at 20A, the 16342 covers it.
5) If the opening needs a standard straight-blade face instead of a decorator face, what 20A receptacle should I use instead of the TR26342?
The TR26342 is a decorator-profile duplex, so it needs a decorator-style wallplate. For a conventional straight-blade face at the same 20A 125V rating, the Leviton 16352 is a commercial grade heavy-duty straight blade duplex, 20A 125V, NEMA 5-20R in gray, and the Eaton BR20W is a commercial specification grade duplex in white at 20A/125V. Both take a standard duplex wallplate rather than a decorator plate.
6) Is the TR26342 acceptable for patient-care areas, or do I need a different receptacle?
The TR26342 is a spec-grade, cULus Listed tamper-resistant decorator duplex and is not a hospital grade device. Where hospital grade is called for, use a receptacle graded as such: the Leviton 16262-HGW is a hospital grade duplex in white, and the Bryant BRY8200 series is a hospital grade duplex rated 15A 125V. Some facilities require both hospital grade and tamper resistance in pediatric areas, so confirm which the drawing calls for before you order.
7) Will a Leviton 16352 or Eaton BR20W satisfy a tamper-resistant code requirement in place of the TR26342?
No. The Leviton 16352 is described as a commercial grade heavy-duty straight blade duplex and the Eaton BR20W as a commercial specification grade duplex; neither is described with a shutter mechanism. The TR26342 carries a dual mechanical shutter system that helps prevent insertion of foreign objects into the contact openings, which is what tamper-resistant locations such as dwelling-unit rooms call for. Those two are valid 20A 125V substitutes only where tamper resistance is not required.
8) Will the TR26342 work for a switched-half outlet where the lamp is controlled by a wall switch?
Yes. There is a break-off line-contact connecting tab that is easy to reach, so you snap the tab and feed the two halves separately for split-circuit or switch-controlled-half wiring. No extra parts needed.
9) Does the Pass & Seymour TR26342 need a decorator style wall plate?
Yes, it is a decorator (rectangular opening) duplex, so it takes a decorator/screwless decorator plate, not a standard duplex plate with two round openings. Device body measures 3.28 in by 1.37 in by 0.93 in.
10) What colors does the Pass & Seymour TR26342 come in, and what are the part numbers?
Three colors: black (TR26342-BK), ivory (TR26342-I), and white (TR26342-W). The finish is matte, which matters if you are matching existing matte decorator devices rather than gloss ones on the same wall.
11) Do I still need to run a ground pigtail to the box with this receptacle?
The TR26342 includes an auto-ground clip that makes a positive ground connection to a properly grounded metal box through the mounting strap, so a separate bonding jumper is not required in that case. In a nonmetallic box, or any box without a continuous ground path, you still land the equipment grounding conductor on the green screw.
12) I need a 20A duplex for an industrial plant, not a tamper-resistant one. What else do you carry?
The TR26342 is spec grade with tamper shutters, aimed at code-required TR locations. For plant and shop work where TR is not required and abuse is the concern, look at the Bryant 5362B heavy-duty 20A/125V duplex, the Bryant 5262 industrial grade duplex, or the Eaton BR20W commercial specification grade 20A/125V. For patient care areas you need hospital grade instead, such as the Leviton 16262-HGW.
13) Is a spec-grade receptacle like the TR26342 worth it over a residential grade device in apartment turns?
For rental and multi-family turns, spec grade is the usual call: the TR26342 is built to spec-grade standards with steel terminal screws and an auto-ground clip, and it carries the tamper shutters that dwelling-unit outlets are required to have. A residential grade device such as the Leviton 12650W 15A 125V NEMA 5-15R is the lighter-duty option and is a 15-amp device, so it will not serve a 20-amp circuit requiring a 20A receptacle.
14) We only need 15A on this circuit. What is the lighter-duty alternative to the TR26342?
The TR26342 is a 20A 125V device. At 15A, the Eaton BR15W is a commercial specification grade duplex receptacle accepting #14-10 AWG, the Eaton Arrow Hart 5262W is a heavy-duty industrial duplex, 15A 125V, 5-15R in gray, and the Leviton 12650W is a residential grade impact-resistant straight-blade duplex, 15-amp 125-volt NEMA 5-15R. Note that none of these is described with a tamper-resistant shutter system, so they will not satisfy an opening where TR devices are required.
15) For a high-abuse industrial outlet, is the TR26342 the right choice or should I step up?
The TR26342 is built to spec-grade standards with tri-drive steel terminal screws and an auto-ground clip, which suits commercial and residential branch circuits. For shop floors and similar duty, the industrial-graded peers go further: the Bryant 5262 series is an industrial grade duplex, the Eaton Arrow Hart AH5462V is an extra heavy-duty industrial specification grade duplex, and the Bryant 5362B series is a heavy-duty duplex at 20A/125V. The trade-off is that those are not described as tamper-resistant, so they will not meet a TR requirement.
16) I need an ivory 20A receptacle to match existing devices. Which options cover that color?
The TR26342 is offered in ivory as TR26342-I, alongside black (TR26342-BK) and white (TR26342-W), all as 20A 125V tamper-resistant decorator duplexes. Among the alternatives, the Bryant 5362BI is a heavy-duty 20A/125V duplex in the ivory-suffixed version of that series. Keep in mind the Bryant is a conventional duplex rather than a decorator profile, so the wallplate style differs.
17) Does the TR26342 support split-circuit wiring, or do I need a different device for that?
The TR26342 handles it directly: it has an easily accessed break-off line-contact connecting tab for fast split-circuit wiring, and it terminates side-wire only using backed-out tri-drive steel terminal screws. If your installation calls for back-wire or push-in termination, the TR26342 is not the device for it, and you would want to confirm the termination style of an alternative such as the Eaton BR15W, which is rated for #14-10 AWG conductors.
18) Where is the Pass & Seymour TR26342 made?
Mexico. That matters for buyers tracking country of origin on government or institutional purchase orders.
