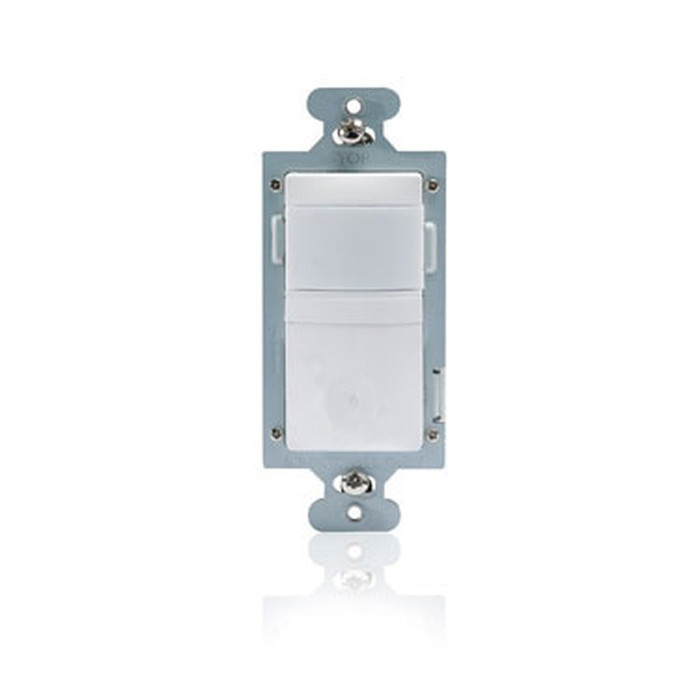

Pass & Seymour RH-250 PIR Single Pole 3-Way Occupancy Sensor, White
The Pass & Seymour RH-250 is a Passive Infrared (PIR) multi-way occupancy sensor engineered for automatic lighting shutoff in spaces with multiple switch locations. Rated 120 VAC and configured as a single pole 3-way device, it delivers a 180° field of view with coverage up to 25 linear ft and 600 SqFt, making it well suited for hallways, stairwells, and large rooms with more than one entrance. The sensor is finished in matte white and offers optional automatic lighting activation alongside manual override.
Key Features
- Wide Coverage Area: 180° detection field with up to 25 linear ft and 600 SqFt of coverage, ideal for hallways, stairwells, and large rooms with multiple entrances.
- Multi-Way Switching: Single pole 3-way configuration provides automatic-off control with multi-way capability across multiple switch locations.
- Adjustable Time Delay: Lets installers tailor how long lighting remains on after occupancy is detected.
- Selectable Operation Mode: Choice of manual-on or automatic-on operation to fit the application.
- Lighted Pushbutton: Illuminated pushbutton improves visibility and usability in darkened rooms.
- Electrical Rating: 120 VAC operation for standard branch-circuit lighting control.
- Finish: Matte white finish blends into standard wall device layouts.
Technical Specifications
- Voltage Rating: 120 VAC
- Angle of Coverage: 180°
- Coverage Range: 25 linear ft / 600 SqFt
- Configuration: Single Pole 3-Way
- Finish: Matte
- Color: White
- Product Line: Pass & Seymour
- Country of Origin: China
- Packaging: 40 EA per case
Typical Applications
- Hallways and Stairwells with Multiple Entrances
- Large Rooms Requiring Multi-Way Lighting Control
- Commercial and Institutional Lighting Retrofits
- Energy-Saving Automatic Lighting Shutoff Applications
- Multi-Switch Occupancy-Based Lighting Systems
Why Pass & Seymour?
Pass & Seymour builds the RH-250 occupancy sensor with reliable PIR detection, a durable matte white finish, and multi-way switching designed to keep lighting control simple across hallways, stairwells, and larger rooms. With adjustable time delay, selectable manual or automatic-on operation, and a lighted pushbutton for after-dark visibility, this sensor is built to help facility teams reduce energy use without compromising convenience.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- PASS-20260820
- Product Type:
- Occupancy Sensor
- Voltage Rating:
- 120 VAC
- Angle:
- 180°
- Configuration:
- Single Pole 3-Way
- Product Finish:
- Matte
- Product Color:
- White
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Lighting Controls & Sensors
Pass & Seymour RH-250-W – Frequently Asked Questions
1) Can the Pass & Seymour RH-250 occupancy sensor be used in a 3-way circuit with a second switch?
Yes. The RH-250 is configured as a single pole 3-way device, so it can go in a hallway or stairwell where a conventional switch sits at the other end and still give automatic-off control from either location. That is the main reason to pick it over a single-pole-only sensor.
2) What size room will the RH-250 PIR sensor cover?
The RH-250 sees 180 degrees, out to 25 linear feet and about 600 square feet. That handles a corridor run, a stairwell, or a mid-size room. For a large open office or warehouse bay you want more coverage, for example the Leviton ODS10-ID-E, which we list at 2100 sq ft.
3) Do the lights come on automatically with the RH-250, or does someone have to press the button?
Either way, it's selectable. The RH-250 can be set for automatic-on so lights come up when someone enters, or manual-on so occupants press the button and the sensor only handles the shutoff. Manual-on is the usual choice where energy codes require it; auto-on suits stairwells and corridors. The pushbutton is illuminated so it can be found in a dark room.
4) How long do the lights stay on after the room empties with the RH-250?
That's adjustable at the device. The RH-250 has an adjustable time delay, so you set the hold time at commissioning rather than living with a fixed interval. Longer delays suit corridors with intermittent traffic; shorter ones recover more energy in low-use spaces.
5) Will the RH-250 sensor match the white devices already on my walls?
The RH-250-W is white with a matte finish, so it reads the same as standard white wiring devices rather than a gloss or ivory plate. White is the only color offered on this model.
6) Is the RH-250 a line voltage sensor or does it need a low voltage power pack?
It's a line voltage wall switch sensor that wires directly into the 120 VAC lighting circuit, no separate power pack or control module. If your design uses low voltage control instead, that is a different animal, for instance the Lithonia CM-9, which is a 12-24V AC/DC low voltage sensor switch.
7) Is PIR the right sensor technology for a hallway?
Yes, and that is where the RH-250 is aimed. Passive infrared needs line of sight to detect body heat in motion, which a straight corridor or stairwell gives it across the full 180 degree field. PIR is a poorer choice for restrooms with stalls or L-shaped rooms where partitions block the view; those call for a different detection type or a ceiling-mounted sensor.
8) How many RH-250 sensors come in a case for a multi-building retrofit?
Case quantity on the RH-250-W is 40 each, which is the practical buy for standardizing corridors and stairwells across a property.
