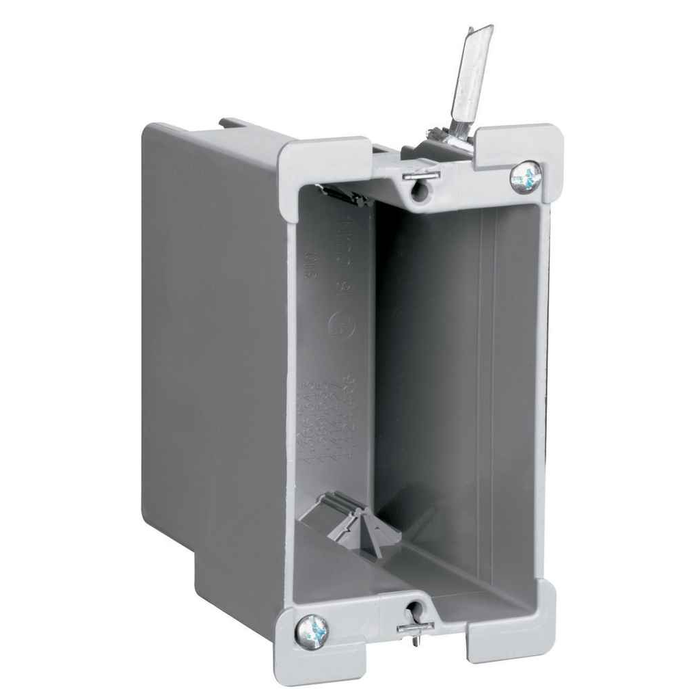

Pass & Seymour S118W Quick/Click Old Work Switch and Outlet Box, Thermoplastic

Pass & Seymour S118W Quick/Click Old Work Switch and Outlet Box, Thermoplastic

(No reviews yet) Write a Review

Model: S1-18-W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$54.57
$4.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour S118W Old Work Switch and Outlet Box with Quick/Click

The Pass & Seymour S118W is an Old Work Switch and Outlet Box built for fast, reliable device mounting in existing walls without cutting oversized openings. It features the Quick/Click system that secures devices quickly and easily, a Grey Thermoplastic body, and a metal swing bracket that adjusts from 1 1/4 inch to 1/8 inch to accommodate varying wall thicknesses. The box is cULus Listed and RoHS Compliant, making it a dependable choice for professional remodel and retrofit electrical work.

Key Features

  • Quick/Click Feature: Secures switches and outlets quickly and easily, streamlining device installation.
  • Anti-Strip Design: Does not strip when over-torqued, protecting the box and device during installation.
  • Adjustable Metal Swing Bracket: Adjusts from 1 1/4 inch to 1/8 inch, enabling quick, secure mounting in existing (old work) walls of varying thickness.
  • Dual Auto/Clamps: 2 Auto/Clamps on each end eliminate the need for separate cable clamps, simplifying wire management.
  • Durable Thermoplastic Construction: Grey Thermoplastic housing offers a rugged, non-conductive body suited for switch and outlet installations.
  • Old Work Application: Designed specifically for retrofit installations, allowing installation in finished walls without additional framing work.

Certifications & Compliance

  • cULus Listed
  • RoHS Compliant

Technical Specifications

  • Country Of Origin: United States
  • Product Color: Grey
  • Product Line: Pass & Seymour
  • Product Material: Thermoplastic

Typical Applications

  • Old Work (Retrofit) Electrical Installations
  • Switch and Outlet Mounting in Existing Finished Walls
  • Residential and Commercial Remodel Wiring
  • Renovation Projects Requiring Fast, Damage-Resistant Device Installation

Why Pass & Seymour?

Pass & Seymour engineers the S118W with an anti-strip design and a metal swing bracket to deliver a dependable old work box that installs quickly in existing walls without compromising strength. The Grey Thermoplastic construction, cULus Listing, and RoHS Compliance reflect the code-compliant, professional-grade quality electricians expect for retrofit and remodel projects.

Manufacturer Resources

Spec Sheet

Product Specs

Product Material:
Thermoplastic
Product Color:
Grey
Product Type:
Switch Box
Country of Origin:
United States
Listing:
cULus
Standards:
RoHS Compliant
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Electrical Boxes
Product Depth:
3.031 in
Product Width:
2.25 in
Product Length:
3.75 in

Pass & Seymour S1-18-W – Frequently Asked Questions

1) Can the Pass & Seymour S118W be installed in a finished wall without opening up the drywall?
That is exactly what it is built for. The S118W is an old work box, so it drops into a cut opening in an existing wall and anchors with a metal swing bracket rather than nailing to a stud. No framing work and no oversized opening needed, which is why it shows up on remodel and retrofit jobs.
2) What wall thickness does the swing bracket on the S118W old work box handle?
The metal swing bracket adjusts from 1 1/4 inch down to 1/8 inch, so it clamps onto anything in that range of finished wall material. Standard 1/2 inch and 5/8 inch drywall both sit inside that window, as does drywall over an old plaster or panel layer.
3) Do I need to add cable clamps to the Pass & Seymour S118W?
No separate clamps required. The box has 2 Auto/Clamps on each end, so cable lands and holds without extra hardware in the can.
4) What is the Quick/Click feature on the S118W box actually doing?
Quick/Click is the device-mounting system: it secures the switch or receptacle into the box quickly instead of relying on a slow screw-thread engagement. Paired with the anti-strip design, the mounting points do not strip when a device screw gets over-torqued, so you are not fishing out a ruined box after a heavy-handed drill driver.
5) Is the S118W a metal box or plastic, and does that affect grounding?
The body is Grey thermoplastic, a nonconductive housing, so there is no metallic box to bond. Only the swing bracket is metal. Your equipment ground goes to the device and to the grounding conductors in the box, the way it does with any nonmetallic old work box.
6) What part number do I order for the Pass & Seymour Quick/Click old work box?
Order it as Pass & Seymour S118W, catalog number S1-18-W. It is made in the United States. One model, one configuration, in Grey.
7) Where do I find the manufacturer spec sheet for the S118W?
Pass & Seymour publishes a spec sheet PDF for the S118W, and it is linked in the product specs under PDF: Spec Sheet. That is the document to attach when a spec package needs the manufacturer data.
