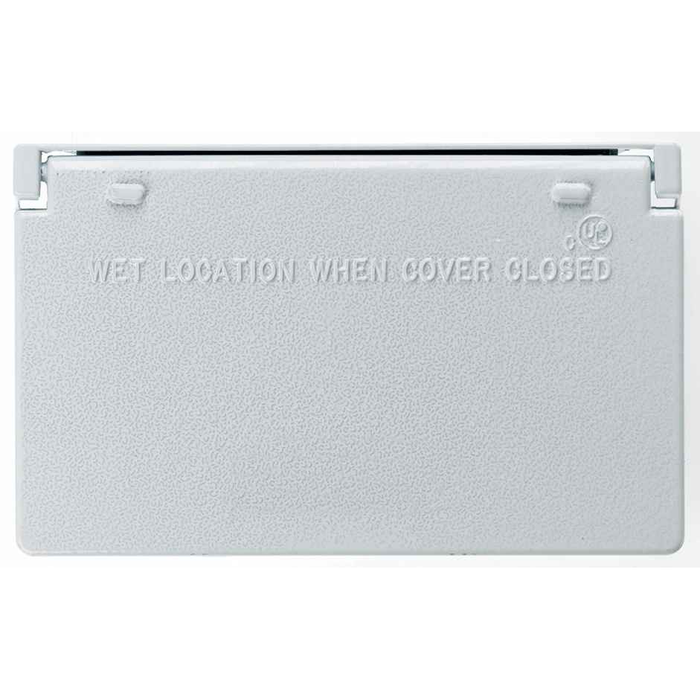

Pass & Seymour Self-Closing Cast Weatherproof Decorator/GFCI Cover, White

Pass & Seymour Self-Closing Cast Weatherproof Decorator/GFCI Cover, White

(No reviews yet) Write a Review

Model: CA26-WH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour CA26WV Self-Closing Cast Weatherproof Vertical Cover, Zinc Die-Cast, White

The Pass & Seymour CA26WV is a heavy-duty, self-closing cast weatherproof vertical cover engineered to protect decorator switches and GFCI receptacles installed in outdoor or damp locations. Constructed from durable die-cast zinc (Cast Metals) and finished in matte white, this cover automatically closes to shield the device beneath it and complies with 2005 NEC Section 406.8(A) and 406.8(B)(2) for wet-location protection. The CA26WV carries a cULus Listing, giving electrical contractors and facility managers a code-compliant solution for exterior single-gang decorator and GFCI applications.

Key Features

  • Heavy-Duty Die-Cast Construction: Built from durable die-cast zinc (Cast Metals) for long-term strength and weatherproof reliability in outdoor installations.
  • Self-Closing Operation: The cover automatically returns to the closed position after use, keeping the decorator or GFCI device protected from moisture and debris at all times.
  • Corrosion-Resistant Powder Paint: Finished with baked-on electrostatic polyester powder paint that delivers superior scratch and corrosion resistance for lasting curb appeal.
  • Stainless Steel Springs: Internal stainless steel springs provide dependable, long-lasting self-closing action even with repeated daily use.
  • Code-Compliant Design: Covers comply with 2005 NEC Section 406.8(A) and 406.8(B)(2), helping installers meet wet-location cover requirements.
  • Single-Gang Compatibility: Part of a broad line of single-gang covers designed to fit standard decorator switches and GFCI receptacles.
  • Matte White Finish: A clean matte white finish blends with common exterior wall colors and device finishes.

Certifications & Compliance

  • cULus Listed
  • Complies with 2005 NEC Section 406.8(A) and 406.8(B)(2)

Technical Specifications

  • Country Of Origin: India
  • Product Finish: Matte
  • Product Height: 2.8 in
  • Product Line: Pass & Seymour
  • Product Material: Cast Metals
  • Product Width: 4.56 in
  • Product Depth: 0.125 in

Typical Applications

  • Outdoor and Wet-Location Electrical Installations
  • Decorator Switch and GFCI Receptacle Protection
  • Residential and Commercial Exterior Wiring
  • Renovation and New Construction Projects
  • Patio, Porch, and Outdoor Kitchen Electrical Outlets

Why Pass & Seymour?

Pass & Seymour builds the CA26WV around heavy-duty die-cast zinc construction, corrosion-resistant powder paint, and stainless steel springs so the self-closing action keeps working installation after installation. Paired with a cULus Listing and compliance with 2005 NEC Section 406.8(A) and 406.8(B)(2), this vertical cover gives professionals a dependable way to protect decorator and GFCI devices in wet or damp outdoor locations while meeting current code requirements.

Manufacturer Resources

Spec Sheet

Product Specs

Product Material:
Cast Metals
Listing:
cULus
Product Type:
Weatherproof Receptacle Cover
Product Color:
White
Department:
Electrical
Product Finish:
Matte
Product Group:
Wiring Devices
Product Subgroup:
Weatherproof Covers
Product Width:
4.56 in
Product Height:
2.8 in
Product Depth:
0.125 in

Pass & Seymour CA26-WH – Frequently Asked Questions

1) Will a Pass & Seymour CA26 cover fit a standard duplex receptacle?
No. The CA26 is cut for a single-gang decorator (Decora-style rectangular) opening, so it suits decorator switches and decorator-face GFCI receptacles. A standard duplex receptacle with two round-top openings needs a duplex-configured weatherproof cover instead.
2) What is the difference between the Pass & Seymour CA26-W self-closing weatherproof cover and the Leviton 7420 self-closing cover?
Both are 1-gang self-closing weatherproof covers, but they differ in material. The Pass & Seymour CA26-W is built from cast metals in a matte white finish, while the Leviton 7420 is a glass-filled thermoplastic cover rated industrial grade. Choose the cast metal CA26-W where impact resistance and a painted metal appearance on the wall matter; choose the thermoplastic Leviton where a nonmetallic cover is preferred, such as corrosive or coastal environments.
3) Metal or plastic weatherproof cover for an exterior wall, which should I use?
The CA26 is die-cast zinc with baked-on electrostatic polyester powder paint and stainless steel springs, so it holds up where a cover takes abuse or sun exposure and where a spec calls for a metal cover on a cast box. If you want a non-metallic option, ZenSupply also carries the Leviton 7420 and Leviton 7788-CR, both glass-filled thermoplastic industrial grade single-gang self-closing covers, which avoid a painted metal surface and any galvanic concern against dissimilar materials.
4) Can I use the CA26 self-closing cover on a damp location like a covered porch ceiling or soffit?
Yes. The CA26 is built for outdoor and damp locations as well as wet, and covered porches, patios, and outdoor kitchen outlets are listed applications. The self-closing lid keeps moisture and debris off the decorator or GFCI face between uses. Match orientation to the device: CA26-WV for a vertically mounted device, CA26-WH for a horizontal one.
5) Can I use the Leviton 7420 or 7788-CR in place of a Pass & Seymour CA26-W on the same outdoor box?
All three are 1-gang self-closing weatherproof covers, so they address the same type of opening. The practical check is the device beneath and the look you want: the CA26-W is a cast metal cover in matte white sized for decorator switches and GFCI receptacles, and it is offered in horizontal and vertical orientations by part number CA26-WH and CA26-WV. The Leviton 7420 and 7788-CR are glass-filled thermoplastic industrial grade covers. Confirm the cover opening matches your device style before ordering.
6) Will the white finish on this outdoor cover chalk or rust over time?
The CA26 is finished in baked-on electrostatic polyester powder paint over die-cast zinc, specified for scratch and corrosion resistance, and the self-closing springs are stainless steel rather than plated steel. Those are the two parts that usually fail first on an exterior cover, so for property managers standardizing white covers across a building exterior, the matte white on this one is meant to stay presentable.
