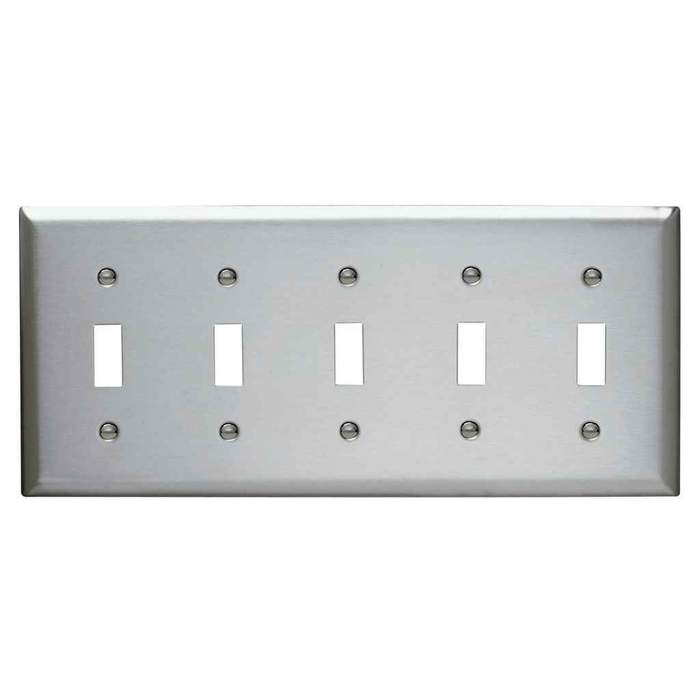

Pass & Seymour SS5 5-Gang Stainless Steel Wall Plate with Toggle Switch Openings, 302/304 Grade

Pass & Seymour SS5 5-Gang Stainless Steel Wall Plate with Toggle Switch Openings, 302/304 Grade

(No reviews yet) Write a Review

Model: SS5

In Stock (leaves warehouse same day if ordered before 3pm ET)

$115.53
$87.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour SS5 5-Gang Stainless Steel Wall Plate with Toggle Switch Openings, 302/304 Grade

The Pass & Seymour SS5 5-Gang Stainless Steel Wall Plate with Toggle Switch Openings is built for demanding commercial, industrial, and institutional environments. Constructed from Type 302/304 stainless steel containing 18% chromium and 8% nickel, this non-magnetic, 5-gang wall plate accommodates five toggle switch openings and features a brushed finish with 0.032" nominal thickness. CSA Listed, UL Listed, and cULus Listed, it delivers reliable corrosion resistance in harsh atmospheres such as food processing plants, dairies, and chemical facilities.

Key Features

  • Trade Size / Dimensions: Measures 4.5 in high by 10.0 in wide with a 0.2 in depth, sized for 5-gang toggle switch openings.
  • Durable Stainless Steel Construction: Type 302/304 stainless steel with 18% chromium and 8% nickel content resists corrosion in harsh industrial atmospheres.
  • Non-Magnetic Properties: Non-ferrous composition suits sensitive electronic environments and applications requiring non-magnetic materials.
  • Brushed Finish: Professional metallic brushed finish resists fingerprints and maintains appearance in high-traffic commercial areas.
  • 0.032" Nominal Thickness: Robust gauge construction provides long-lasting durability and resistance to impact damage.
  • Protective Film Packaging: Ships with finish-matching screws and protective film to prevent scratching during installation.
  • Customization Options: Available silk-screened, engraved, or custom punched with over 300 opening styles for specialized applications.

Certifications & Compliance

  • CSA Listed
  • UL Listed
  • cULus Listed

Technical Specifications

  • Country Of Origin: United States
  • Depth: 0.2 in
  • Product Color: Stainless Steel
  • Product Finish: Metallic
  • Product Height: 4.5 in
  • Product Line: Pass & Seymour
  • Product Material: Stainless Steel
  • Product Width: 10.0 in

Typical Applications

  • Food Processing Plants and Commercial Kitchens
  • Dairy Processing Facilities
  • Chemical Plants and Laboratories
  • Industrial Manufacturing Environments
  • Institutional Healthcare Facilities
  • Commercial Buildings with Corrosive Atmospheres
  • Pharmaceutical Manufacturing

Why Pass & Seymour?

Pass & Seymour backs the SS5 wall plate with CSA Listed, UL Listed, and cULus Listed certifications, giving electrical professionals confidence in code-compliant performance for demanding installations. The Type 302/304 stainless steel construction and brushed finish deliver long-term durability and a professional appearance, while finish-matching screws and protective film packaging reflect attention to installation quality and customer satisfaction.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Toggle Wallplate
Product Material:
Stainless Steel
Configuration:
5-Gang
Product Finish:
Brushed
Listing:
cULus
Country of Origin:
United States
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Wallplates
Product Depth:
0.2 in
Product Width:
10 in
Product Height:
4.5 in
Product Color:
Stainless Steel

Pass & Seymour SS5 – Frequently Asked Questions

1) Will the Pass & Seymour SS5 cover a 5-gang box with five standard toggle switches?
That is exactly what the SS5 is cut for: five toggle switch openings in a single 5-gang plate. It measures 4.5 in high by 10.0 in wide with a 0.2 in depth. If any position in your gang box is a decorator rocker, duplex receptacle, or blank, this plate won't cover it, you'd need a combination configuration instead.
2) Is a stainless steel switch plate OK in a food processing or dairy plant washdown area?
That's the main reason the SS5 exists. It's Type 302/304 stainless with 18% chromium and 8% nickel, which holds up against corrosive atmospheres found in food processing plants, dairies, chemical facilities, and pharmaceutical manufacturing. A painted or cold rolled steel plate in those rooms will rust at the screw holes and edges first.
3) Is the SS5 listed for commercial and institutional work?
It carries CSA Listed, UL Listed, and cULus Listed marks, so it will pass inspection on commercial and institutional jobs on both sides of the border. Country of origin is the United States, which matters if you're on a Buy American specified project.
4) What should I use if I only need a single toggle switch plate instead of a 5-gang stainless one?
The Pass & Seymour SS5 is a 5-gang plate with five toggle switch openings in Type 302/304 stainless steel, so it only suits a five-device box. For a single toggle opening, the Mulberry 41020 is a 1-gang toggle switch plate from the 4102 series. The Mulberry 86401 is another 1-gang option, a steel plate in white from the 8640 series. Both cover one device rather than five, and neither is a stainless brushed plate, so the appearance will not match an SS5 elsewhere in the same room.
5) I need a two-gang plate that mixes a toggle and a receptacle opening - what covers that?
The Pass & Seymour SS5 is punched for five toggle switch openings only, so mixed device configurations are outside what it covers. For a two-device box with different openings, Mulberry offers the 76432 in the 764 series and the 76532 in the 765 series, both 2-gang combination wallplates in cold rolled steel with a white finish. Those are painted steel rather than the brushed Type 302/304 stainless of the SS5, which is the finish difference to weigh if the plates sit near each other.
6) For a corrosive environment like a dairy or chemical plant, does a steel wallplate work as well as the SS5?
The Pass & Seymour SS5 is Type 302/304 stainless steel with 18 percent chromium and 8 percent nickel, chosen specifically for corrosion resistance in harsh atmospheres such as food processing plants, dairies, and chemical facilities, and it is CSA, UL, and cULus listed. The Mulberry 86401 8640 series and the Mulberry 76432 764 series are steel plates finished in white - painted carbon steel rather than stainless, which behaves differently under washdown and chemical exposure. Where the spec calls out stainless for the atmosphere, the SS5 is the construction that answers it.
7) Is the Pass & Seymour SS5 stainless plate magnetic?
No. The 302/304 stainless used on the SS5 is non-magnetic, non-ferrous. That matters in MRI suites, lab spaces, and other areas where magnetic hardware is restricted, and it also means magnetic tool holders and stud finders won't grab it.
8) Do I need to buy screws separately for the SS5 wall plate?
No, the SS5 ships with finish-matching screws, plus a protective film over the face so the brushed finish doesn't get scratched while you're hanging it. Peel the film after the plate is set. If the switch straps are recessed deep in the box you may need longer 6-32 machine screws, which are not supplied.
9) How thick is the SS5 plate, and will it dent in a high-traffic corridor?
0.032 inch nominal gauge. That's a full-bodied stainless plate rather than a thin stamping, and it's the reason these get specified in corridors, kitchens, and shop floors where carts and equipment hit the walls. The brushed finish also hides fingerprints better than a polished or painted face.
10) What's a lower-cost alternative to a stainless plate if I only need a painted steel cover?
For dry interior work where corrosion isn't the driver, painted steel is the usual substitute. ZenSupply carries the Mulberry 8640 Series steel 1-gang wallplate in white, and the Mulberry 764 and 765 Series cold rolled steel 2-gang combination plates. Those are single- and two-gang covers though, so for a five-position toggle bank the SS5 remains the plate that fits the box.
11) I have a boiler room shutoff switch that needs to be identified. Is the SS5 the right plate?
No. The SS5 is a plain brushed stainless 5-gang toggle plate with no marking. For an identified emergency or gas burner shutoff, use a marked plate such as the Mulberry 41020 Gas Burner Red 1-gang toggle switch plate from the 4102 Series. Keep the SS5 for the general switch banks.
12) Can I use the SS5 over a data or telephone jack position?
No. All five openings are toggle switch cutouts, so there is nowhere for a modular jack to mount. For a voice or data position, use a jack-equipped plate such as the Eaton 35324W with a 4-conductor Type 625B4 modular jack, or a Bryant PJ Series M-size wallplate for modular wiring devices.
13) I'm standardizing every switch plate in a building on stainless. Does the SS5 match the smaller gangs?
The SS5 is the 5-gang member of the Pass & Seymour 302/304 stainless toggle plate family, all sharing the same brushed metallic face and 0.032 inch nominal gauge. Order the matching 1- through 4-gang toggle plates from the same stainless series and the finish and screw heads will read the same across every opening. Mixing in a different brand's stainless can show a visibly different brush direction.
14) Is a duplex receptacle plate an acceptable substitute for the SS5?
No. The Pass & Seymour SS5 is punched for toggle switch openings across five gangs, so its cutouts match toggle switch bodies and nothing else. The Bryant P8 is a 1-gang duplex wallplate from the P8 series, cut for a duplex receptacle, and will not fit over toggle switches regardless of gang count. Match the opening style to the device in the box before matching the finish.
15) What do I use for a data or voice jack opening instead of the SS5?
The Pass & Seymour SS5 has no low-voltage provision - it is punched for five toggle switch openings. For a communications outlet, the Eaton 35324W is a wallplate with a 4-conductor data/voice modular jack, Type 625B4, so the jack is part of the plate rather than a separate device behind it. That is a different scope of work: the SS5 covers line-voltage switches you have already installed, while the Eaton plate terminates a phone or data run.
16) I have a mix of device sizes on a job - is there a plate line that covers more than standard openings?
The Pass & Seymour SS5 is a fixed 5-gang toggle configuration, though Pass & Seymour will supply the plate silk-screened, engraved, or custom punched with over 300 opening styles for specialized applications. If you want an off-the-shelf alternative sized for different device bodies, the Bryant PJ series is an M-size wallplate for wiring devices, and the Bryant NP26W is a 1-gang plate from the HWS series. Confirm the device body against the plate series before ordering, since M-size and standard openings are not interchangeable.
17) I need a switch plate with custom engraving or a non-standard opening. Can I get that on this stainless line?
Yes. The Pass & Seymour stainless plates can be ordered silk-screened, engraved, or custom punched, with over 300 opening styles available for specialized device combinations. That's the route for labeled circuits, unusual device mixes, or oversize openings that no stock configuration covers.
18) Is there a color-coded plate for marking a gas burner or specific-purpose switch?
The Pass & Seymour SS5 comes in brushed stainless with a metallic finish, so identification on it is handled by silk-screening or engraving rather than plate color. If you want the marking built into the plate, the Mulberry 41020 is a gas burner red 1-gang toggle switch plate in the 4102 series, which identifies the circuit by color at a glance. That is a single-gang solution, so a five-switch bank would still need the SS5 or five separate plates.
