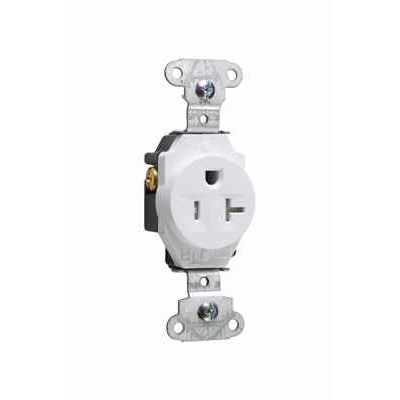

Pass & Seymour TR5351W 20A 125V Tamper-Resistant Single Receptacle, White

Pass & Seymour TR5351W 20A 125V Tamper-Resistant Single Receptacle, White

(No reviews yet) Write a Review

Model: TR5351-W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.57
$10.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour TR5351W 20A 125V Tamper-Resistant Single Receptacle, White

The Pass & Seymour TR5351W is a 20A 125V construction spec-grade tamper-resistant single receptacle finished in white, engineered for back-and-side wire installation. Built with a dual mechanical shutter system to help prevent insertion of foreign objects, this receptacle is cULus Listed for dependable performance in commercial and residential construction. Corrosion-resistant plated steel and brass triple-wipe power contacts deliver lasting retention and secure connections in demanding job-site environments.

Key Features

  • Electrical Rating: 20A 125V for standard general-purpose receptacle circuits.
  • Wiring Method: Back and side wire connections for flexible, fast installation.
  • Tamper-Resistant Design: Dual mechanical shutter system helps prevent insertion of foreign objects into the contact openings.
  • Durable Contacts: .032 inch thick brass triple-wipe power contacts provide lasting retention and reliable connections.
  • Corrosion-Resistant Strap: Plated steel strap is locked into the face and back body to resist pulling away from the assembly.
  • Auto-Ground Clip: Assures positive grounding for safe, code-compliant installations.
  • Break-Off Connecting Tab: Easily accessed line-contact tab enables fast, easy split-circuit wiring.
  • Temperature Rating: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current; operates continuously from -40°C to +60°C.
  • Finish: Matte white finish for a clean, professional appearance.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Finish: Matte
  • Product Height: 3.28 in
  • Product Line: Pass & Seymour
  • Product Width: 1.38 in
  • Product Depth: 1.19 in

Typical Applications

  • Commercial and Residential Construction Wiring
  • General-Purpose 20A Receptacle Circuits
  • Split-Circuit Wiring Installations
  • New Construction and Renovation Projects
  • Code-Required Tamper-Resistant Outlet Locations

Why Pass & Seymour?

Pass & Seymour engineers construction spec-grade devices with corrosion-resistant plated steel straps, brass triple-wipe contacts, and auto-ground clips built for lasting, code-compliant performance. The cULus Listed TR5351W delivers the reliable, tamper-resistant protection professional electricians depend on for demanding installations.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Receptacle
Product Color:
White
Voltage Rating:
125V
Amperage Rating:
20A
Connection Type:
Back and Side Wire
Product Finish:
Matte
Listing:
cULus
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Product Width:
1.38 in
Product Depth:
1.19 in
Product Height:
3.28 in

Pass & Seymour TR5351-W – Frequently Asked Questions

1) Can I use the TR5351W on a 20 amp circuit with 12 AWG wire, and will it accept a 15A plug?
Rated 20A at 125V, so it lands on a standard 20A general-purpose branch circuit. Connections are back and side wire, so you can land the conductor in the back clamp or wrap the side screw, whichever is faster in a crowded box. A 20A 125V receptacle face accepts both 15A and 20A straight-blade plugs, since the 20A configuration carries the T-slot neutral.
2) Does the TR5351W meet the tamper-resistant outlet requirement for dwelling units?
It's a tamper-resistant device, built with a dual mechanical shutter system that blocks insertion of a foreign object into a single slot. That's the mechanism the tamper-resistant requirement calls for in residential locations. The device is cULus Listed.
3) Do I need a special wall plate for this single receptacle?
Yes. A single receptacle takes a single-outlet round-opening plate, not the standard duplex plate, so a duplex cover will not fit the face. Device body measures 3.28 in high, 1.38 in wide and 1.19 in deep, which is standard strap spacing for a single-gang box. White matte finish, so a white plate matches.
4) What is the closest 20A 125V alternative to the Pass & Seymour TR5351W if a duplex outlet is needed instead of a single?
The TR5351W is a single receptacle rated 20A 125V. If the opening calls for two outlets on one strap, the Bryant 5362B is a heavy-duty 20A/125V duplex receptacle, and the Bryant 5362BI is the same 20A/125V heavy-duty duplex in a different color designation. Both keep the 20A 125V rating, but they are duplex faces rather than the single face of the TR5351W, and the tamper-resistant dual shutter system is a TR5351W feature.
5) I need four outlets at one location instead of the Pass & Seymour TR5351W single. What should I use?
The TR5351W provides one 20A 125V outlet per device. For four outlets in one box, the Bryant 21254IGO is a quad straight-blade receptacle, NEMA 5-20R, 20A, so it holds the same 20 amp straight-blade configuration while presenting four faces. It is a quad body requiring the matching quad-size plate, where the TR5351W mounts in a standard single-device opening.
6) Can I use a 15A single receptacle in place of the Pass & Seymour TR5351W?
Only if the circuit and the drawing allow a 15 amp device. The TR5351W is rated 20A 125V. Among 15 amp single receptacles, the Eaton 816W is a commercial specification grade single receptacle rated 15A. Substituting it changes the device rating from 20A to 15A, so confirm the branch circuit and the specified outlet rating before swapping; it also does not carry the TR5351W dual mechanical shutter tamper-resistant design.
7) For a tamper-resistant outlet requirement, can the Bryant 5362B be used instead of the Pass & Seymour TR5351W?
Where the code requires a tamper-resistant outlet, the TR5351W is the device that answers it: it uses a dual mechanical shutter system to help prevent insertion of foreign objects and is cULus Listed. The Bryant 5362B is a heavy-duty 20A/125V duplex receptacle and matches on the 20A 125V rating, but it is specified as a heavy-duty duplex, not a tamper-resistant device, so it is not the part to use at a TR-required location.
8) Will the TR5351W hold up in an unheated garage or outdoor enclosure?
Operating range runs continuously from -40C to +60C, so an unconditioned garage, attic, or covered exterior box is within the device's rating. The strap is corrosion-resistant plated steel locked into both the face and the back body, which matters in damp locations. The device itself is not weatherproof, so it still needs an appropriate in-use cover outdoors.
9) Can I split-wire this receptacle so it's half switched?
There's a break-off connecting tab on the line contact side that snaps out for split-circuit wiring. Note this is a single receptacle, so splitting separates the line feed for two-circuit or switched-feed arrangements rather than giving you one hot outlet and one switched outlet the way a duplex would. For a half-hot switched setup on a two-outlet face, you'd want a duplex device such as the Bryant 5362B.
10) How does the TR5351W compare to a spec-grade duplex like the Bryant 5362B or the Eaton single receptacle?
Three different jobs. The TR5351W is a construction spec-grade tamper-resistant single at 20A 125V in white. The Bryant 5362B is a heavy-duty grade duplex at the same 20A/125V, so you get two outlets and a heavier-duty build but the TR shutters are what you give up. Eaton's commercial specification grade single is a 15A device, which is not a substitute on a circuit where you need a 20A face. Pick the single when the circuit is dedicated to one piece of equipment.
11) Does the TR5351W ground through the box, or do I have to run a ground pigtail?
An auto-ground clip on the strap makes the ground connection through a properly grounded metal box, and there is still a grounding screw for a bonding conductor. In a plastic box you land the equipment ground on the screw as usual. Note this is a standard-ground device, not isolated ground; for an IG circuit you'd need something like the Bryant 21254IGO.
12) What is the difference between the Pass & Seymour TR5351W and an industrial specification grade single receptacle like the Eaton 6450W?
The TR5351W is a construction spec-grade single receptacle rated 20A 125V with brass triple-wipe contacts, a plated steel strap, an auto-ground clip, and back and side wire terminals. The Eaton 6450W is an industrial specification grade decorator single receptacle accepting #14-10 AWG conductors, and its decorator face needs a decorator-style plate rather than the standard single-outlet plate used with the TR5351W.
13) Will a locking or explosionproof receptacle work as a substitute for the Pass & Seymour TR5351W?
No. The TR5351W is a straight-blade 20A 125V single receptacle for general-purpose branch circuits in commercial and residential construction. The Eaton 7379 is an industrial locking receptacle rated 50A, 600V/250V AC/DC, and the Appleton FSQC series is an interlocked explosionproof receptacle, both of which require mating locking or explosionproof plugs and their own enclosures. The Appleton U-Line ECS set is a factory-sealed 3-pole plug and receptacle set for 15 and 20 amp service, again a cord-connected assembly rather than a flush wall device. None of these accept a standard 125V straight-blade plug the way the TR5351W does.
14) Is the Bryant 430R9W a replacement for the Pass & Seymour TR5351W?
No. The Bryant 430R9W is a 2-pole 3-wire 277V motor-duty receptacle, so it is intended for 277 volt motor loads. The TR5351W is a 20A 125V device for general-purpose 125 volt receptacle circuits. The voltage and intended load are different, and a 125V cord cap will not mate with the 277V device.
15) Will this receptacle keep a tight grip on a plug over years of use in a rental unit?
Contacts are .032 inch thick brass triple-wipe on the power blades, which is what holds retention over repeated plug cycles. The device is also rated for a maximum 30C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current. For a multi-family or MRO standardization program, that's the spec to compare against whatever you're replacing.
