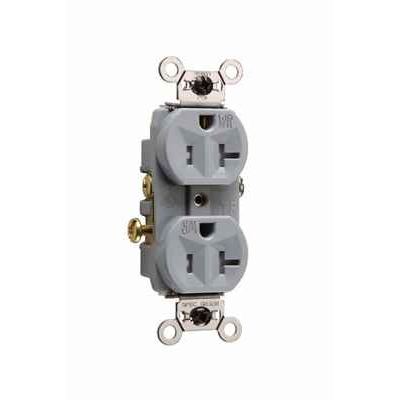

Pass & Seymour WR20TR 20A 125V Tamper-Resistant Weather-Resistant Duplex Receptacle

Pass & Seymour WR20TR 20A 125V Tamper-Resistant Weather-Resistant Duplex Receptacle

(No reviews yet) Write a Review

Model: WR20-TRGRY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour WR20TRGRY 20A 125V Commercial-Grade Tamper-Resistant Weather-Resistant Duplex Receptacle, Gray

The Pass & Seymour WR20TRGRY is a 20A 125V commercial-grade duplex receptacle engineered for both tamper-resistant and weather-resistant performance. Finished in gray, this cULus Listed device combines heavy-duty brass construction with tamper-resistant shutters, making it suitable for wet or damp locations as well as high-traffic commercial environments. Robust internal components ensure long-term reliability under repeated overload and wiring stress.

Key Features

  • Rating: 20A 125V commercial-grade duplex receptacle for demanding electrical loads.
  • Tamper-Resistant & Weather-Resistant: Combined TR/WR design suitable for wet or damp location installations.
  • Brass Power Contacts: .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Auto-Ground Clip: Assures positive ground connection.
  • Reinforced Strap Tabs: Wrap around the face to prevent the strap from separating from the face and back body.
  • Zinc-Plated Steel Mounting Screws: Provide greater ease of installation and removal in wet or damp locations.
  • Dual Drive Screws: Anchor the strap to the backbody and face where abrupt removal torque is strongest.
  • Temperature Performance: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current; operating temperature range of +50°C maximum continuous to -40°C minimum without impact.
  • Tri-Drive Brass Terminal Screws: Internal screw-pressure plate back and side wire capability with two back wire holes for added wiring flexibility.
  • Heavy-Duty Brass Strap: Adds strength and ground conductivity.
  • Split-Circuit Ready: Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Color: Grey
  • Product Height: 2.635 in
  • Product Line: Pass & Seymour
  • Product Width: 1.322 in
  • Product Depth: 0.78 in

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Outdoor and Wet or Damp-Location Receptacle Installations
  • Tamper-Resistant Applications Such as Schools and Childcare Facilities
  • Split-Circuit Wiring Configurations
  • Renovation and New Construction Projects

Why Pass & Seymour?

Pass & Seymour builds the WR20TRGRY around heavy-duty brass contacts, a reinforced brass strap, and a cULus Listed rating, delivering the durability and code-compliant performance professional electricians depend on. The combined tamper-resistant and weather-resistant design means one device can meet both safety and outdoor-durability requirements, simplifying specification for commercial and residential wet-location projects alike.

Product Specs

Voltage Rating:
125V
Listing:
cULus
Product Type:
Duplex Receptacle
Department:
Electrical
Product Group:
Wiring Devices
Amperage Rating:
20A
Product Subgroup:
Receptacles & Outlets
Product Height:
2.635 in
Product Depth:
0.78 in
Product Width:
1.322 in

Pass & Seymour WR20-TRGRY – Frequently Asked Questions

1) Does the WR20TR meet the tamper-resistant requirement for schools and childcare facilities?
It does. The device has tamper-resistant shutters built into the face, which is what codes call for in dwelling units, schools, childcare and similar occupancies. It is one device doing both jobs: TR for the shutter requirement and WR for damp/wet locations, so you are not stocking two separate part numbers for an outdoor classroom wing.
2) For a healthcare facility that requires hospital grade receptacles, what should be used instead of the Pass & Seymour WR20TR?
The Pass & Seymour WR20TR is a commercial-grade tamper-resistant, weather-resistant 20A 125V duplex device. Where a hospital grade receptacle is required, the Leviton 16262-HGW is a hospital grade duplex receptacle in white, supplied in a pack of 100. Hospital grade is a separate listing from the commercial grade construction of the WR20TR, so the two are not interchangeable on an opening where hospital grade is specified.
3) What should I order instead of the Pass & Seymour WR20TR for a 277V motor circuit or a 50A locking connection?
The WR20TR is rated 125V at 20A and will not serve either case. For a 2-pole 3-wire 277V motor-duty application, the Bryant 430R9W in the 4750DR series is the device for that duty. For a high-current locking connection, the Eaton 7379 is an extra heavy duty industrial locking receptacle rated 50A at 600V/250V AC/DC in black. Both use different configurations than the straight blade duplex WR20TR.
4) What colors does the Pass & Seymour WR20TR tamper/weather-resistant receptacle come in?
Three: gray (WR20-TRGRY), ivory (WR20-TRI) and white (WR20-TRW). Same 20A 125V device in each case, so a property manager standardizing a building can match whatever is already on the wall without changing the spec.
5) Can I back-wire the WR20TR or do I have to use the side screws?
Either. The WR20TR uses tri-drive brass terminal screws with an internal screw-pressure plate, giving both side-wire and back-wire capability, and there are two back wire holes per side for feed-through or pigtail-free daisy chaining. Those are clamp plates under screw pressure, not push-in spring terminals.
6) Can the WR20TR be wired as a split-circuit outlet for a switched half?
Yes. There is a break-off line-contact connecting tab on the brass side that snaps out, letting you feed the top and bottom halves from separate circuits or put one half on a switch. The tab is positioned for easy access so you can break it without pulling the device apart.
7) Will the WR20TR ground properly in a metal box without a separate jumper?
It carries an auto-ground clip on the mounting strap, which makes a positive ground connection to a grounded metal box through the mounting screw. The strap itself is heavy-duty brass, which adds ground conductivity along with mechanical strength. In a nonmetallic box you still land the equipment ground on the green screw as usual.
8) I need a 20A duplex for a patient room, not an outdoor one. Is the WR20TR the right device?
No. For healthcare patient care spaces you need a hospital grade device with the green dot, and the WR20TR is a commercial-grade TR/WR receptacle, not hospital grade. The Leviton 16262-HGW is a hospital grade duplex in white for that application. Keep the WR20TR for exterior, damp, and tamper-resistant locations around the facility.
9) Can the Pass & Seymour WR20TR be used in a hazardous location?
No. The WR20TR is a cULus Listed commercial-grade duplex receptacle for wet or damp locations and general commercial and industrial installations. Hazardous location work calls for a different family of device, such as the Appleton FSQC Series interlocked explosionproof receptacle or the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set, which is a 3-pole configuration. Those are not interchangeable with a standard duplex wiring device.
10) How does the Pass & Seymour WR20TR compare with the Bryant 5362BI and Leviton 16251W for a high-traffic commercial space?
All three are built for repeated use. The Bryant 5362BI is a heavy-duty 20A/125V duplex receptacle, and the Leviton 16251W is a commercial grade heavy-duty impact-resistant straight blade receptacle. The Pass & Seymour WR20TR is a commercial-grade 20A 125V duplex with .032 inch thick brass triple-wipe power contacts, a heavy-duty brass strap, reinforced strap tabs, and dual drive screws, plus tamper-resistant shutters and a weather-resistant rating that suit schools, childcare facilities, and wet or damp locations.
11) What is the difference between the Pass & Seymour WR20TR and the Leviton Decora Plus 16342?
Both are 20A 125V commercial grade duplex receptacles; the Leviton 16342 is a Decora Plus commercial grade duplex in white with a NEMA 5-20R configuration, which takes a decorator style wallplate. The Pass & Seymour WR20TR is a standard duplex face and is built tamper-resistant and weather-resistant for wet or damp location use, with brass triple-wipe power contacts and an auto-ground clip. The WR20TR comes in gray, ivory, and white.
12) If I need more than two outlets at one box, is there an alternative to the Pass & Seymour WR20TR?
The Pass & Seymour WR20TR is a duplex device, giving two outlets per yoke, with tamper-resistant and weather-resistant construction. For four outlets in a single device, the Bryant 21254IGO is a quad straight-blade receptacle in NEMA 5-20R rated 20A, matching the amperage and blade configuration but in a quad body rather than a duplex, and without the TR/WR features of the WR20TR.
13) How does the WR20TR hold up to overload and heat on a heavily loaded commercial circuit?
Rated to a maximum 30 C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current with direct current. Operating range runs to +50 C maximum continuous and down to -40 C minimum without impact. The power contacts are .032 inch thick brass triple-wipe, which is what holds plug blade retention over repeated cycles.
14) Will a 20A receptacle like the WR20TR accept a standard 15A plug?
Yes. A 20A 125V duplex of this type takes both standard parallel-blade 15A plugs and T-slot 20A plugs. The one thing to watch is the branch circuit: a single 20A receptacle must be on a 20A circuit, so do not drop one of these onto a 15A breaker and 14 AWG wire.
15) Does the strap on the WR20TR hold up when the device gets yanked out of the box?
That is specifically reinforced. The strap tabs wrap around the face so the strap cannot separate from the face or back body, and dual drive screws anchor the strap to both the backbody and the face at the point where removal torque is highest. It is the usual failure mode on high-traffic and outdoor devices that get pulled on.
16) Is a single receptacle available as an alternative to the Pass & Seymour WR20TR duplex?
The WR20TR is a duplex device in 20A 125V with tamper-resistant and weather-resistant construction. If a single outlet per box is wanted instead, the Eaton 816W-BOX is a commercial specification grade single receptacle rated 15A, and the Eaton 6450W is a heavy-duty industrial specification grade decorator single receptacle accepting #14-10 AWG conductors. Neither is a 20A tamper-resistant weather-resistant device, so confirm the circuit rating before substituting.
